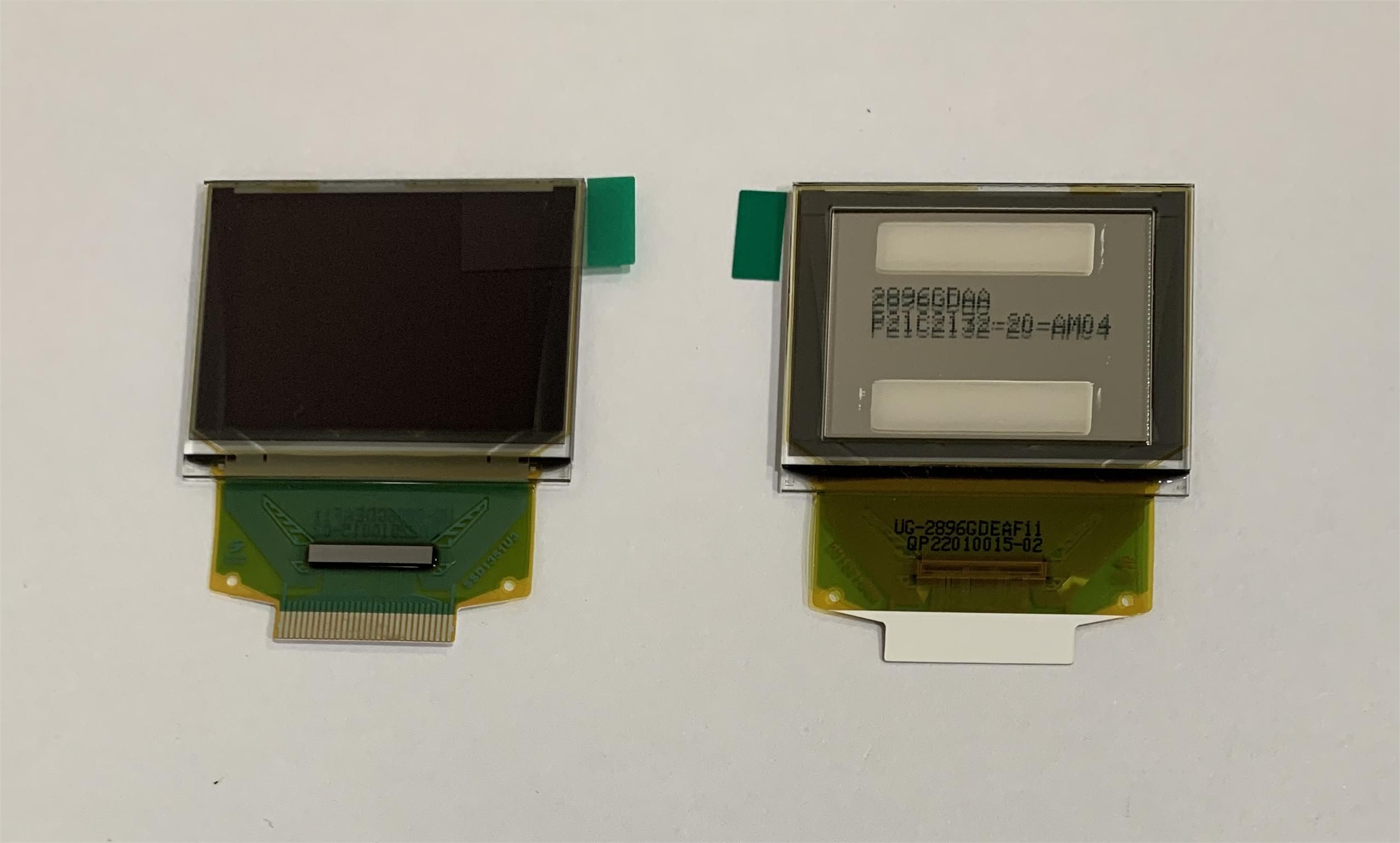

1.27'' 1.27 inch 128x96 full color oled display panel UG-2896GDEAF11 zif connector ssd1351 driving IC
- Overview
- Recommended Products

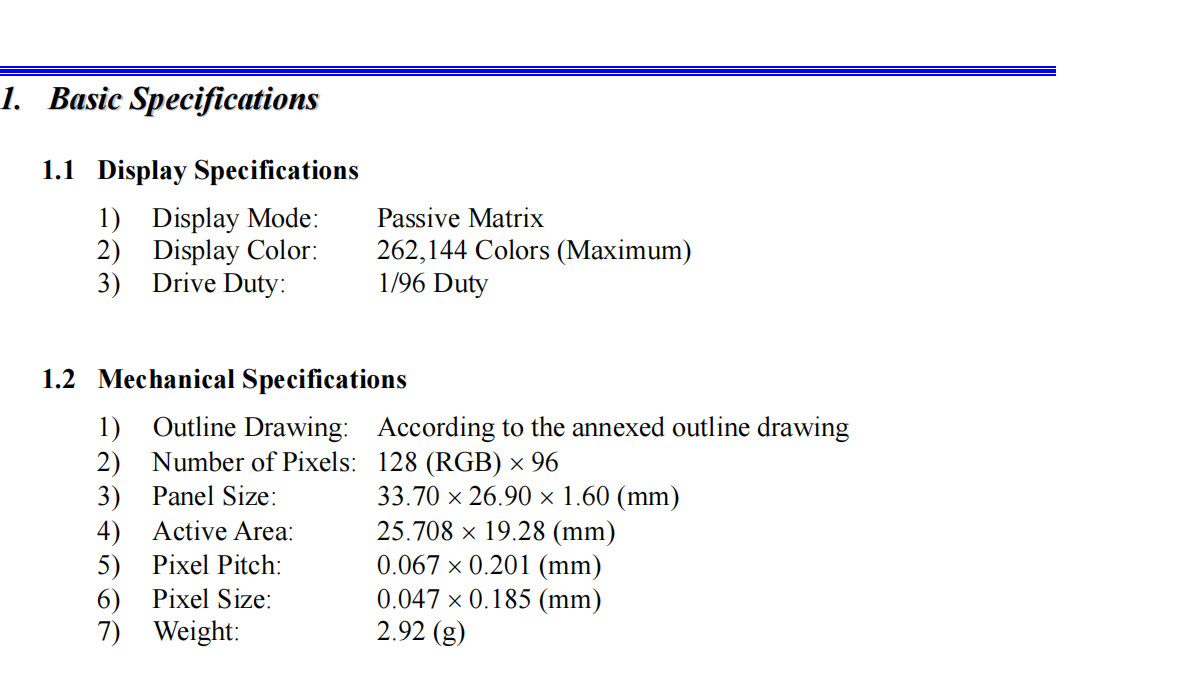

1.1 Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: 262,144 Colors (Maximum)
3) Drive Duty: 1/96 Duty
1.2 Mechanical Specifications

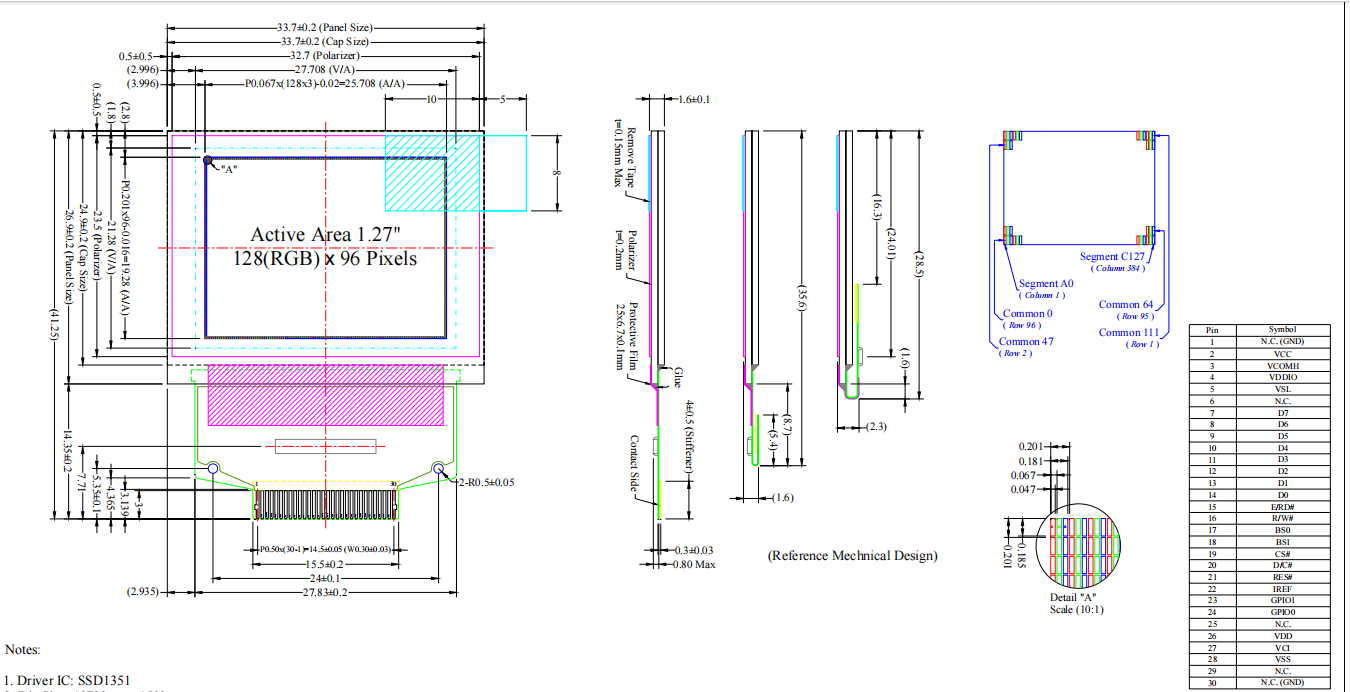

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 128 (RGB) × 96
3) Panel Size: 33.70 × 26.90 × 1.60 (mm)
4) Active Area: 25.708 × 19.28 (mm)
5) Pixel Pitch: 0.067 × 0.201 (mm)
6) Pixel Size: 0.047 × 0.185 (mm)
7) Weight: 2.92 (g)
Driver IC:1351
Interface:Parallel / 3、4-wire SPI
