6.86" 6.86inch 480x1280 Dots 6.86 Inch IPS Type TFT LCD Display Module for Small-to-Middle Screen Applications
- Overview
- Recommended Products
Type:6.86inch LCD display panel
Drive element:a-Si TFT

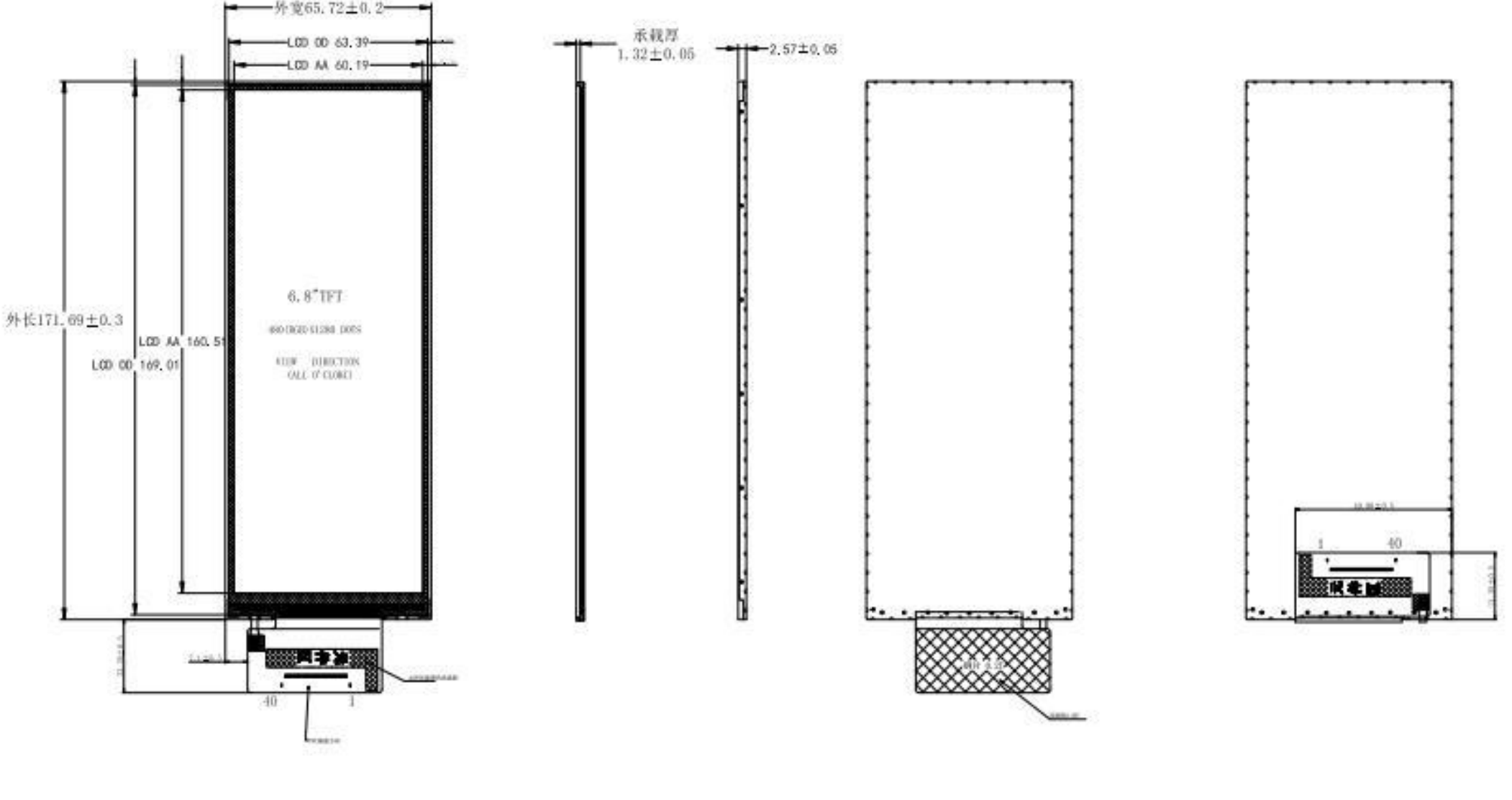

LCM outline size:65.7 (H) x 171.69(V)mm
Active area:60.19 (H) x160.51 (V)mm
Number of pixels:480(H)X1280(V)pixels
Pixel arrangement:RGB stripe
Pixel Pitch:41.8 (H) x 125.4 (V)um
Display color:16.7m color
Viewing direction:ALL
Controller / Driver:NV3051F
Data interface:MIPI
Backlight:16 White LED
