1.47" 1.47 inch resolution 172*320 LCD tft display panel IPS full color SPI interface IC ST7789
- Overview
- Recommended Products

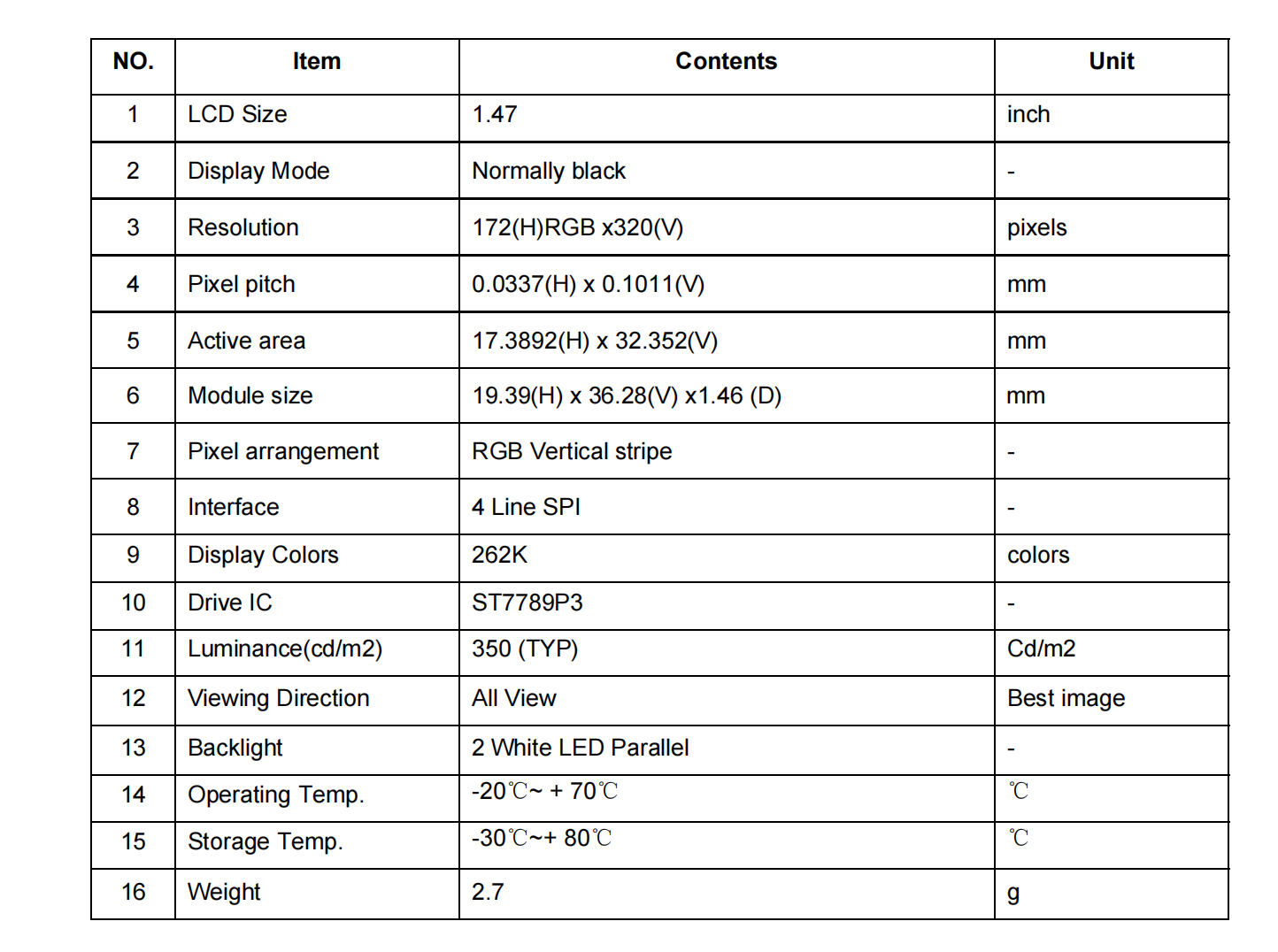

1 LCD Size 1.47 inch
2 Display Mode Normally black
3 Resolution 172(H)RGB x320(V) pixels
4 Pixel pitch 0.0337(H) x 0.1011(V) mm
5 Active area 17.3892(H) x 32.352(V) mm

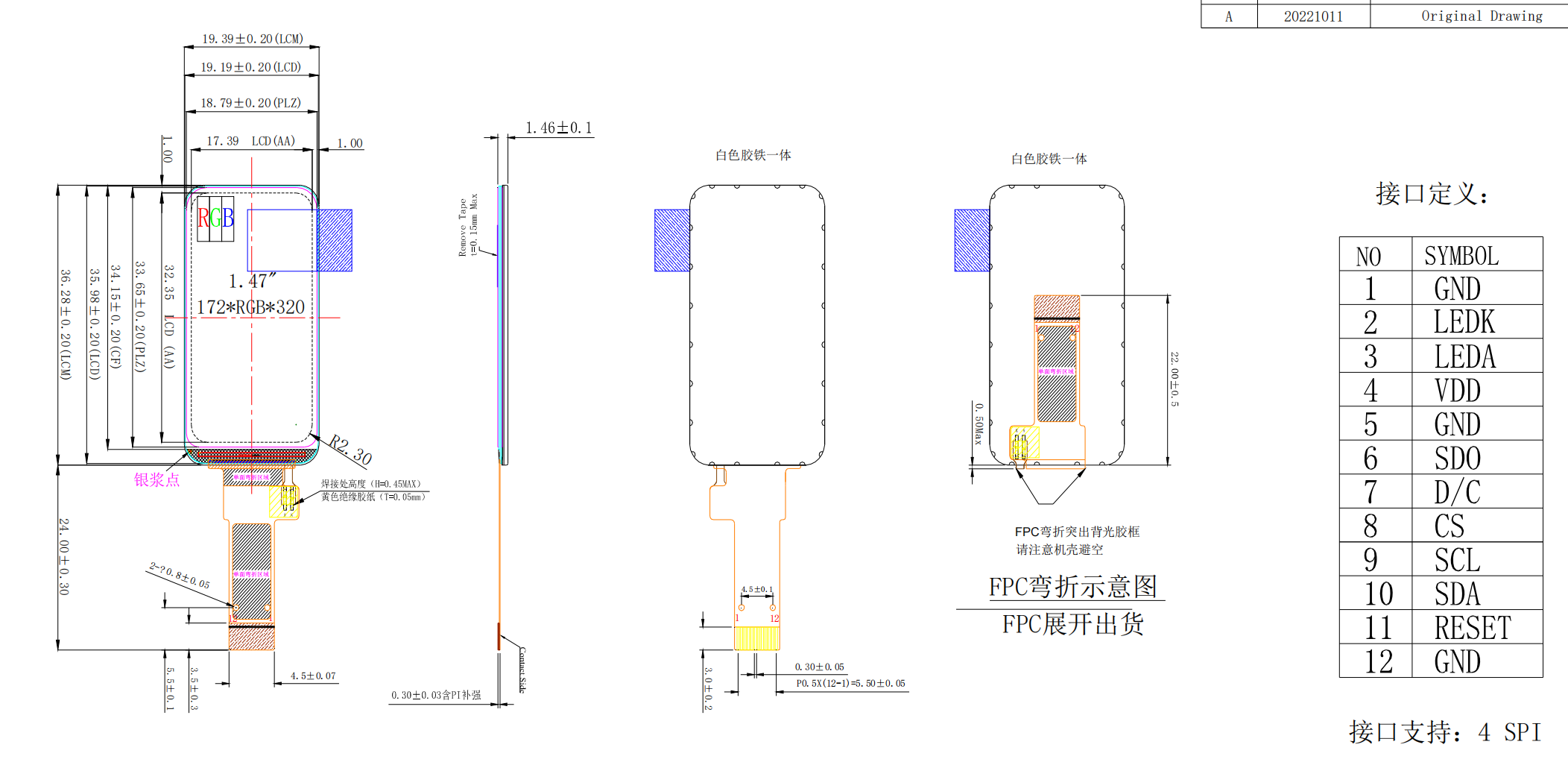

6 Module size 19.39(H) x 36.28(V) x1.46 (D) mm
7 Pixel arrangement RGB Vertical stripe
8 Interface 4 Line SPI
9 Display Colors 262K colors
10 Drive IC ST7789P3
11 Luminance(cd/m2) 350 (TYP) Cd/m2
12 Viewing Direction All View Best image
13 Backlight 2 White LED Parallel
14 Operating Temp.-20℃~ + 70℃
15 Storage Temp.-30℃~+ 80℃
16 Weight 2.7 g
