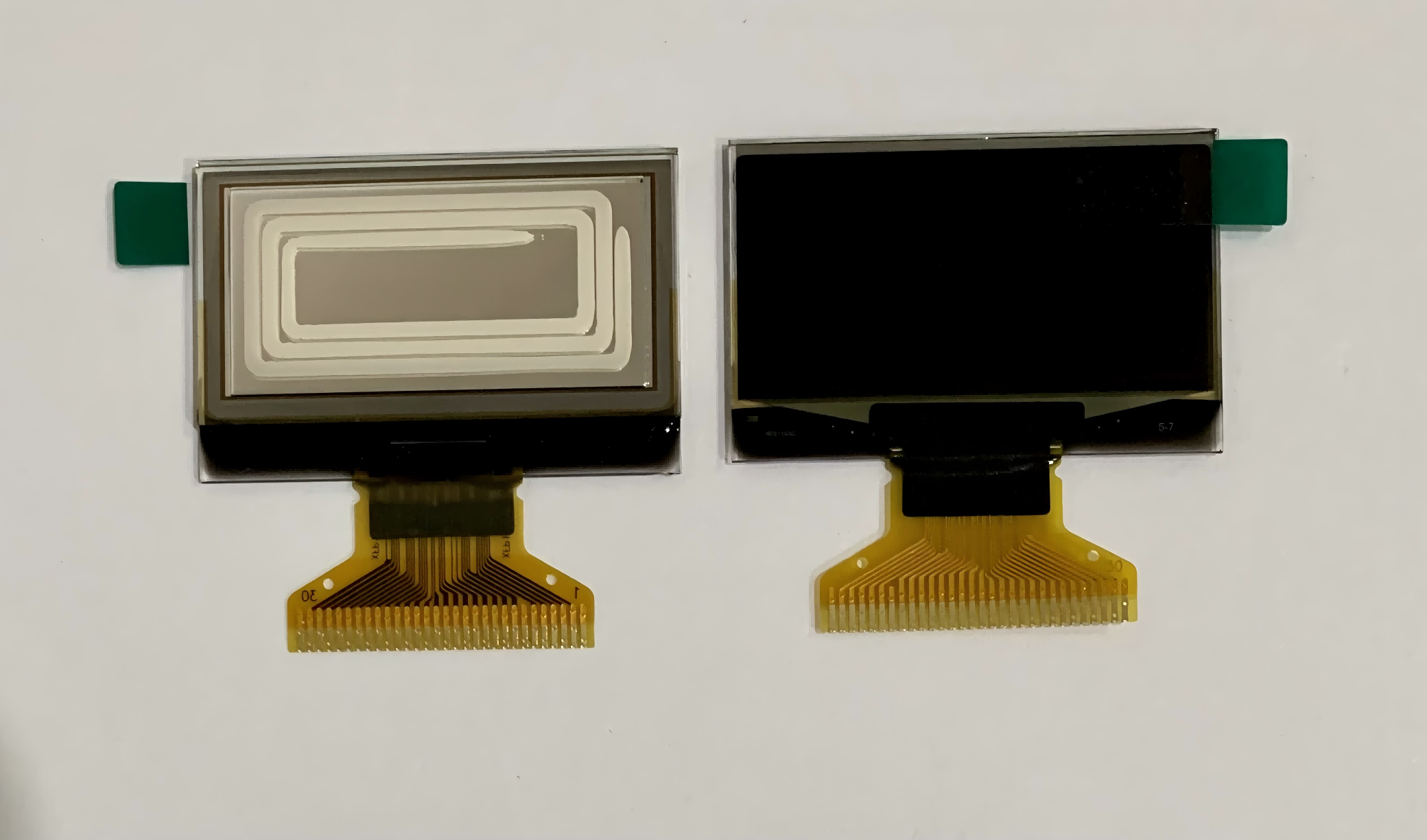

1.3" 1.3inch small oled display panel 128x64 SSD1306 mini oled display oled screen 30pin I2C SPI small screens
- Overview
- Recommended Products
Driver IC:SSD1306/SH1106/CH1116
Interface:8-bit 68xx/80xx Parallel,3/4-wire SPI, I²C
Color options:Blue/White
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 64
3) Module Size : 34.50 × 35.00 × 1.40 (mm)
4) Panel Size : 34.50 × 23.00 × 1.40 (mm) including “Anti-Glare Polarizer”
5) Active Area : 29.42 × 14.70 (mm)
6) Pixel Pitch : 0.23 × 0.23 (mm)
7) Pixel Size : 0.21 × 0.21 (mm)
