High Permormance 3.12" 3.12inch Oled Module 256x64 Pixels 16 Grayscale Blue Oled Display Ssd1322 SPI Parallel
Display Mode: Passive Matrix
Color:Yellow/Blue/White/Green
Interface: 8-Bit 68XX/80XX Parallel、 SPI
Drive Duty: 1/64
Driver IC: SSD1322
Shell :0.5T

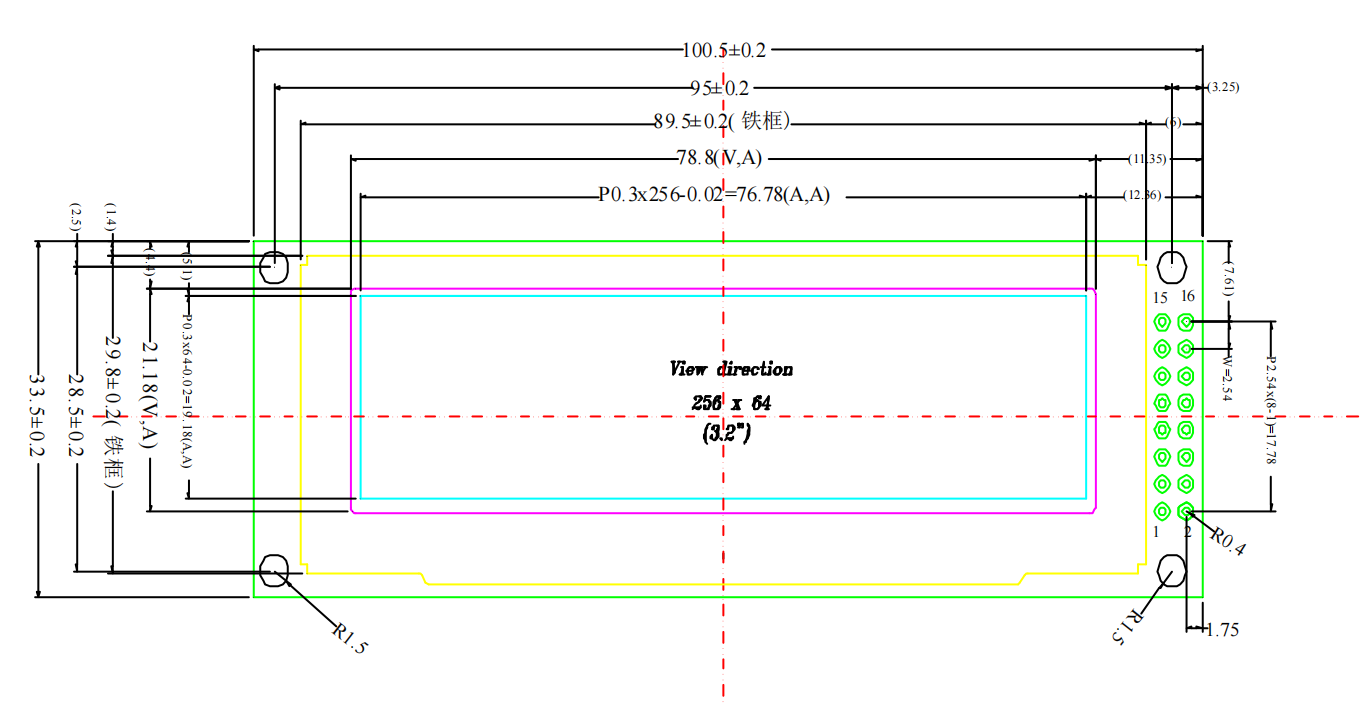

Outline Drawing:100.5(W)x33.5(H)x6.3Max(T) mm
View Area: 78.78(W)x21.18(H) mm
Lattice:256dots x 64dots
Pixel Pitch:0.30(W)x0.30(H) mm
Pixel Size:0.28(W)x0.28(H) mm
