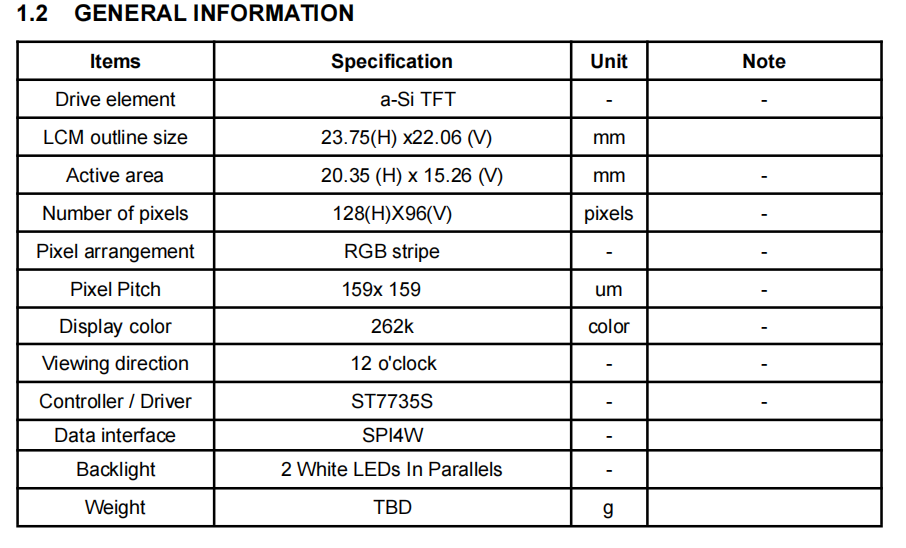

Size:0.96inch landscape LCD

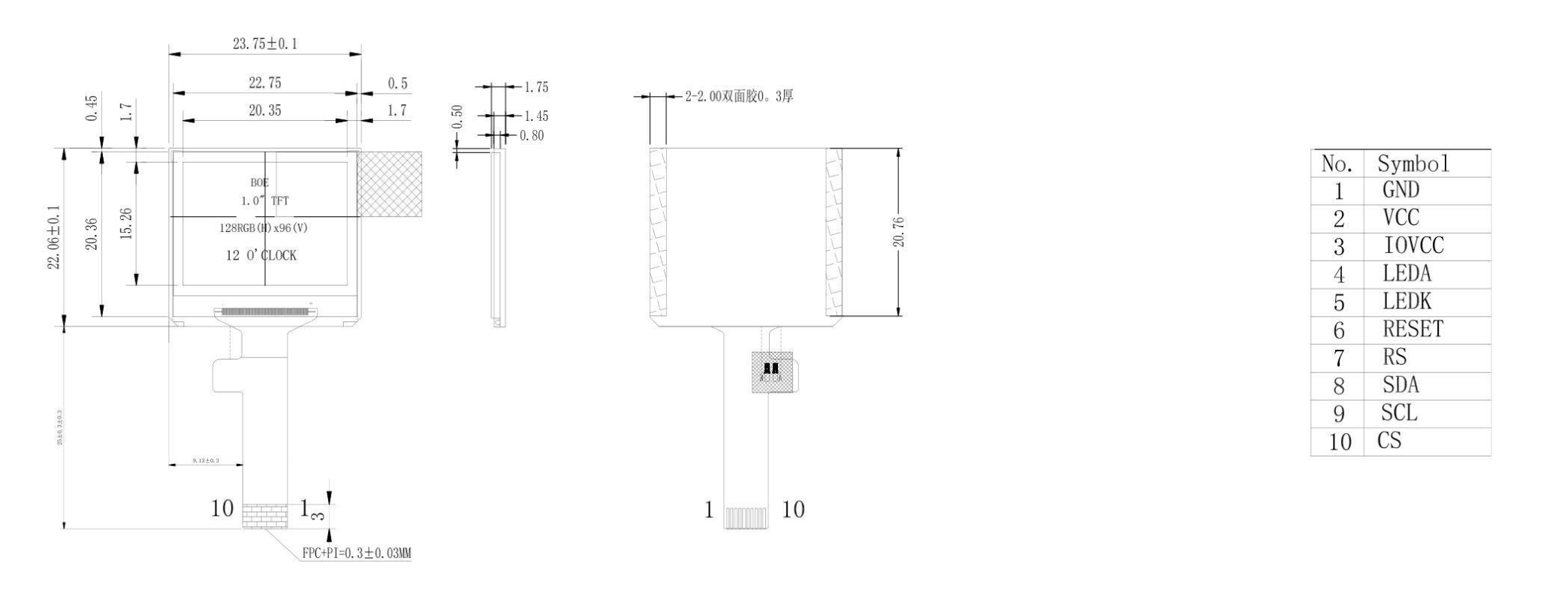

LCM outline size:
23.75(H) x22.06 (V)mm
Active area:
20.35 (H) x 15.26 (V)mm
Number of pixels:
128(H)X96(V)pixels
Pixel arrangement:
RGB stripe
Pixel Pitch:159x 159
Display color:262kcolor
Viewing direction:12 o'clock
Controller / Driver:ST7735S
Data interface:SPI4W
Backlight:2 White LEDs In Parallels
