Size:3.5 inch LCD

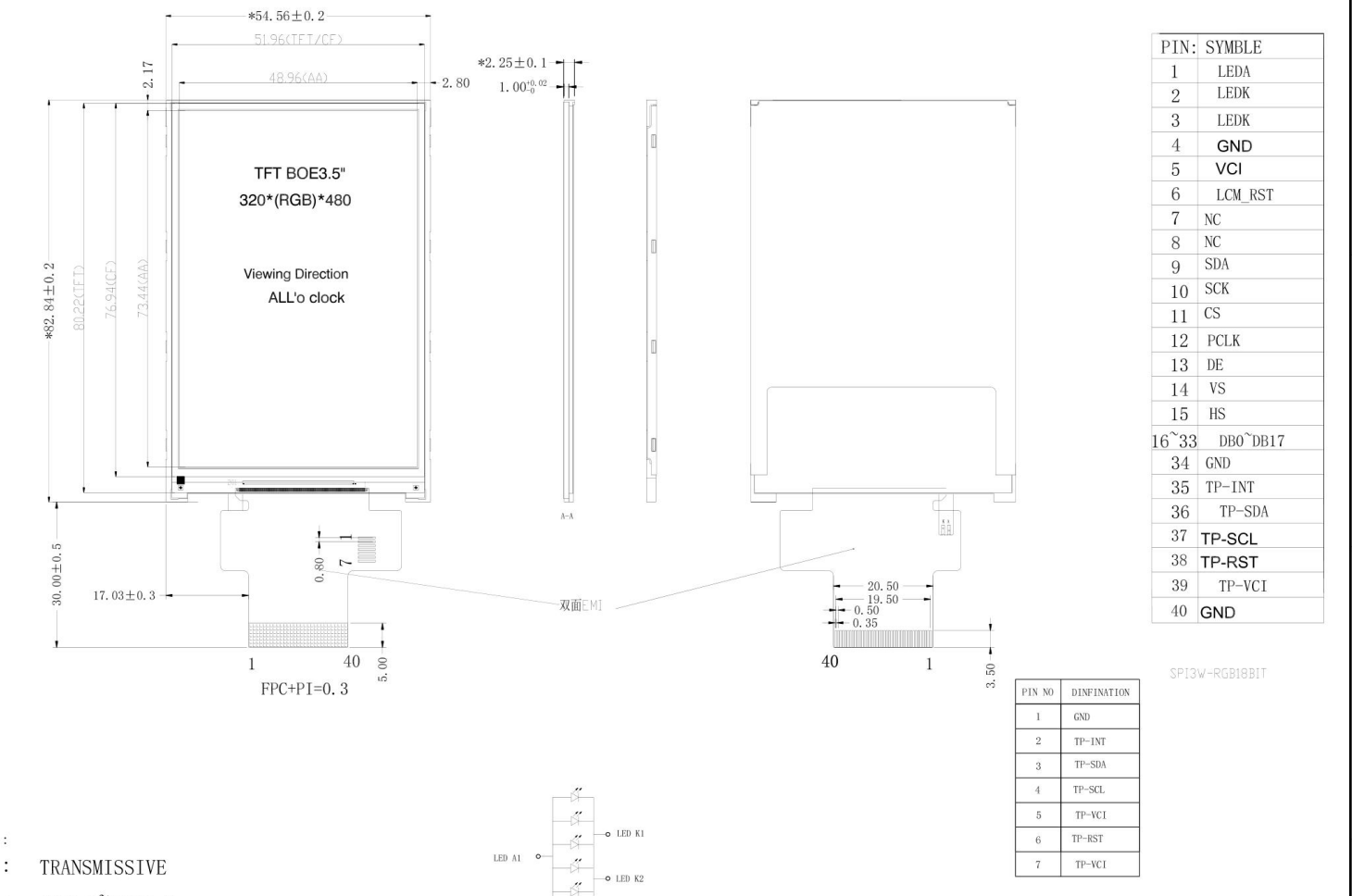

LCM outline size:
54.56 (H) x 82.84 (V)mm
Active area:
48.96 (H) x 73.44 (V)mm
Resolution:320(H)X480(V)
Pixel arrangement:RGB stripe
Pixel Pitch:153mm x 153mm
Display color:16.7M
Viewing direction:ALL
Controller / Driver:ILI9488
Data interface:SPI3W+RGB18BIT
Backlight:6 White LEDs In Parallels
