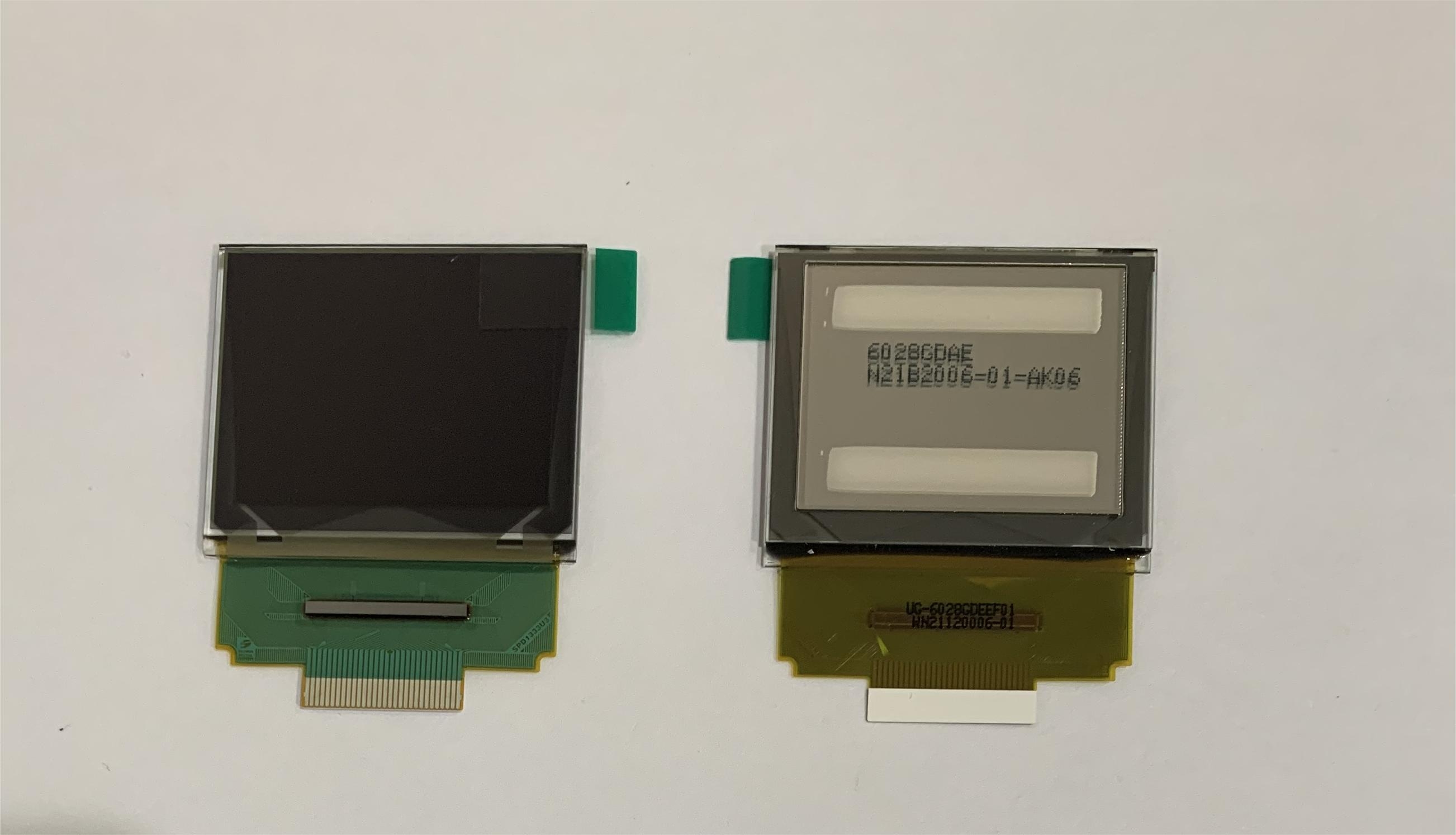

1.45'' 1.45 inch 160x128 pixels 30 pin full colour oled display Parallel, 4-wire SPI, 6-bit RGB ssd1333
- Overview
- Recommended Products

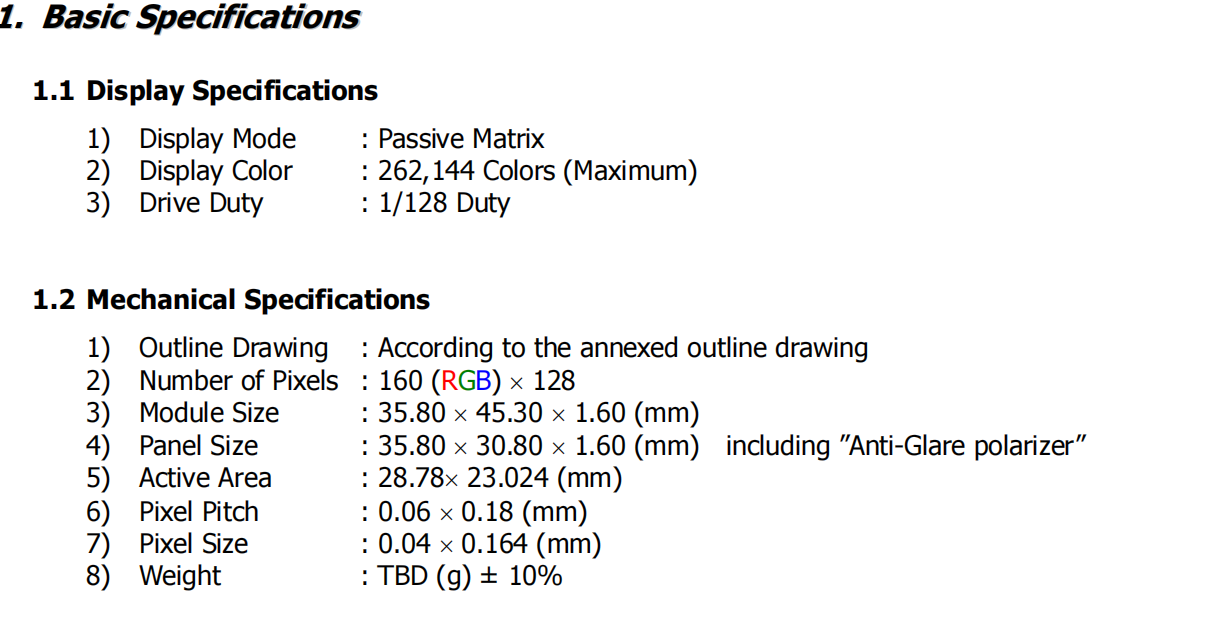

1.1 Display Specifications
1) Display Mode : Passive Matrix
2) Display Color : 262,144 Colors (Maximum)
3) Drive Duty : 1/128 Duty
1.2 Mechanical Specifications
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 160 (RGB) 128
3) Module Size : 35.80 45.30 1.60 (mm)
4) Panel Size : 35.80 30.80 1.60 (mm) including ”Anti-Glare polarizer”
5) Active Area : 28.78 23.024 (mm)
6) Pixel Pitch : 0.06 0.18 (mm)
7) Pixel Size : 0.04 0.164 (mm)
8) Weight : TBD (g) ± 10%
Driver IC:1333
Interface:Parallel, 3-/4-wire SPI
