Size 1.18 inch
Resolution 128 x 128 Dots

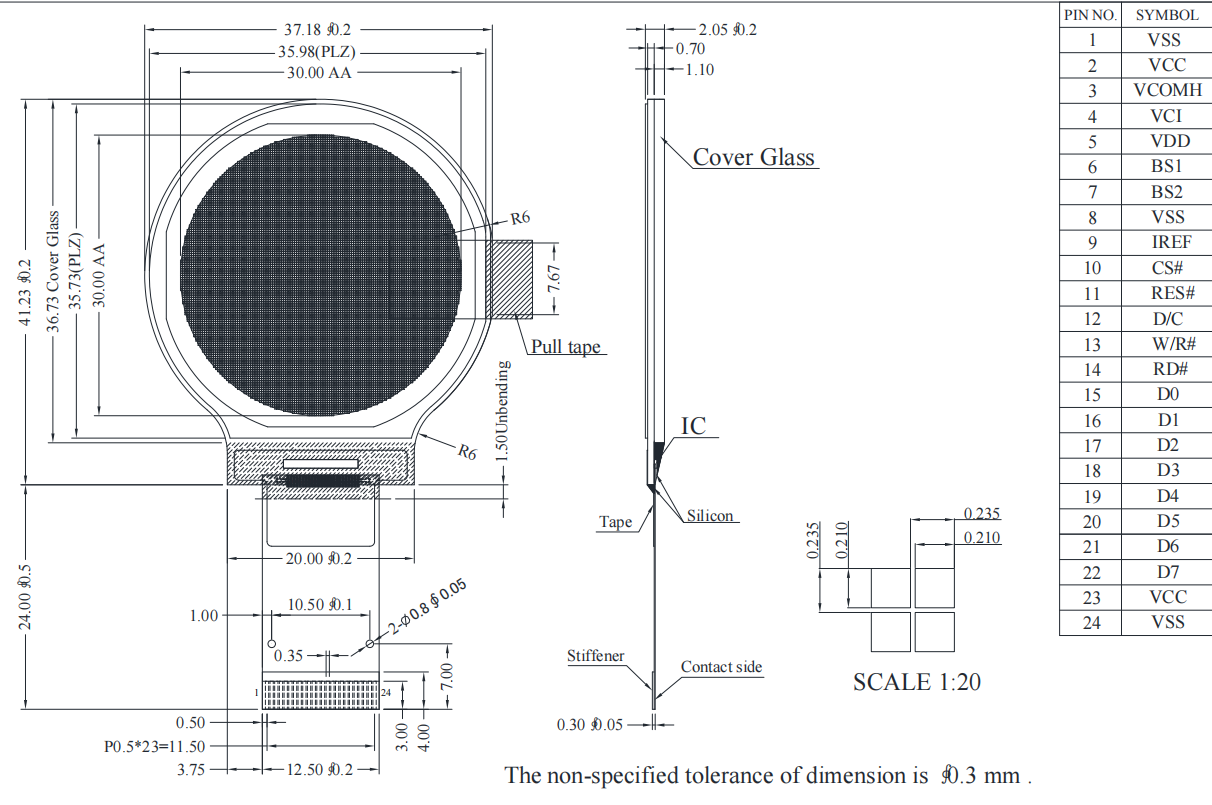

Module dimension 37.18 x 41.23 x 2.05 mm
Active Area Ø30.0 mm
Pixel Size 0.210 x 0.210 mm
Pixel Pitch 0.235 x 0.235 mm
Display Mode Passive Matrix
Display Color White
Drive Duty 1/128 Duty
Gray Scale 4 bits
IC SSD1327
Interface 6800,8080, 4 line SPI ,I2C
