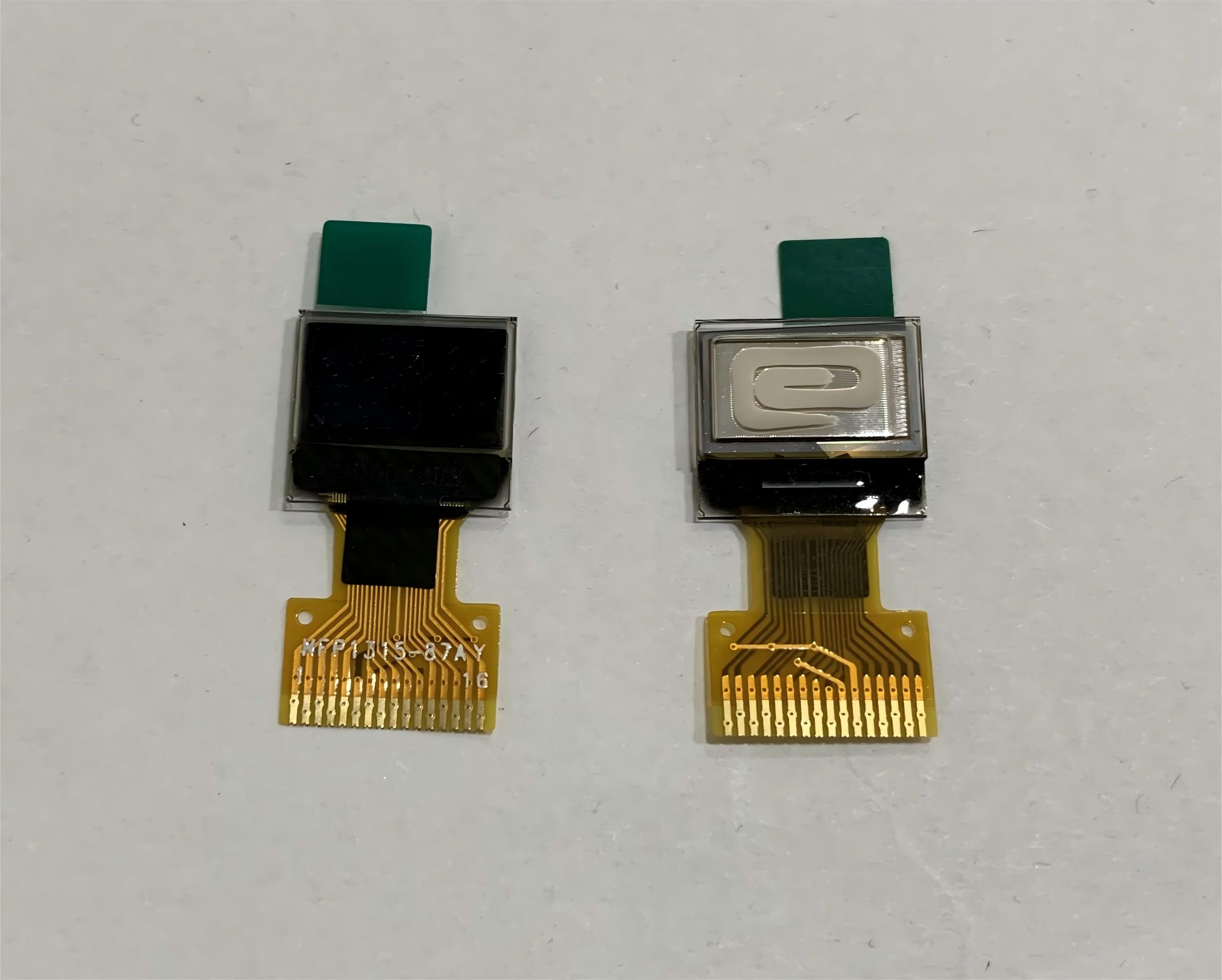

0.42 inch mini oled display monochrome 72x40 resolution small oled display panel i2c display small oled
- Overview
- Recommended Products
Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/40 Duty
Mechanical Specifications

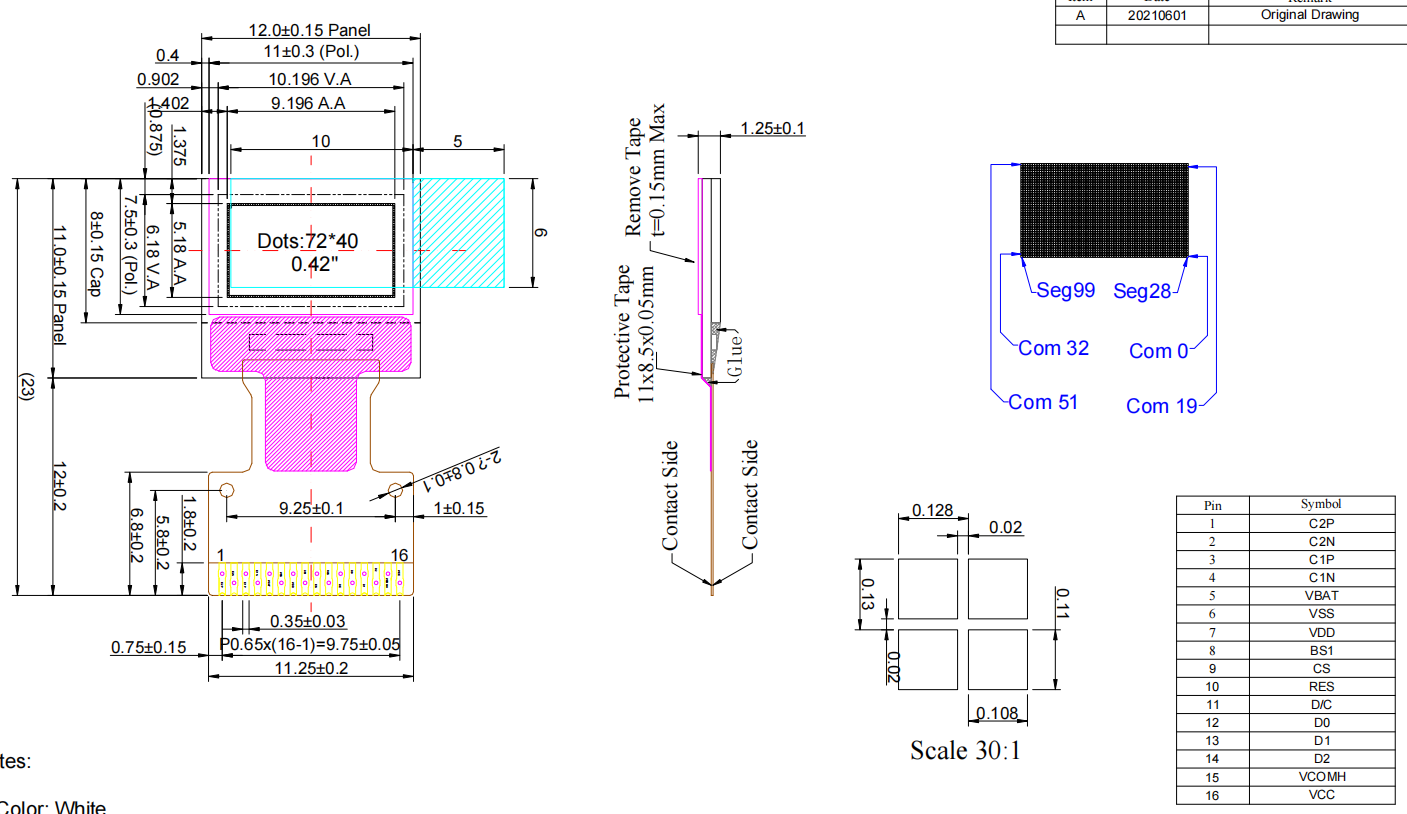

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 72 x 40
3) Panel Size: 12 x 11 x 1.25 (mm)
4) Active Area: 9.196 x 5.18 (mm)
5) Pixel Pitch: 0.128 x 0.13 (mm)
6) Pixel Size: 0.108 x 0.11 (mm)
