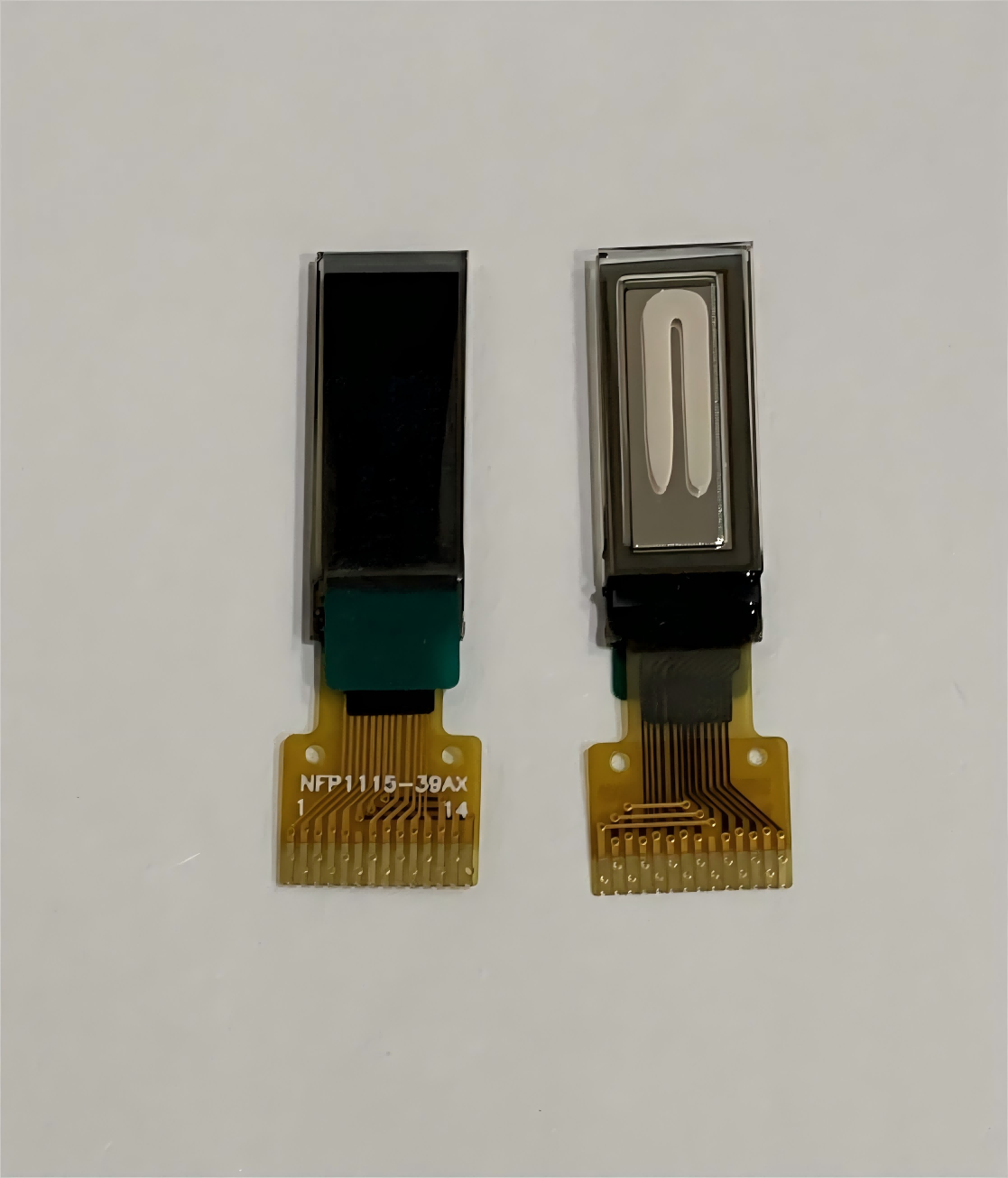

0.54'' 0.54inch small oled display panel white color oled display 14pin soldering type I2C interface CH1115
- Overview
- Recommended Products
Driver IC:CH1115
Interface: I²C
Color options:White
Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/32 Duty
Mechanical Specifications

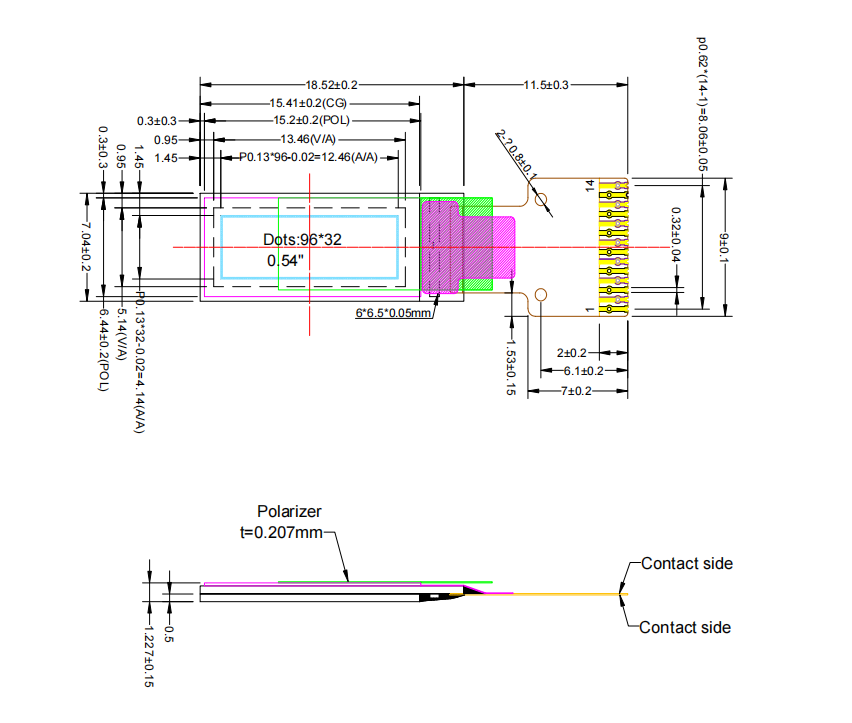

1) Outline Drawing: APPording to the annexed outline drawing
2) Number of Pixels: 96 x 32
3) Panel Size: 18.52 x 7.04 x 1.22 (mm)
4) Active Area: 12.46 x4.14 (mm)
5) Pixel Pitch: 0.13 x 0.13 (mm)
6) Pixel Size: 0.11 x 0.11 (mm)
