Driver IC:SSD1315
Interface: I²C
Color options:White
Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/32 Duty
Mechanical Specifications

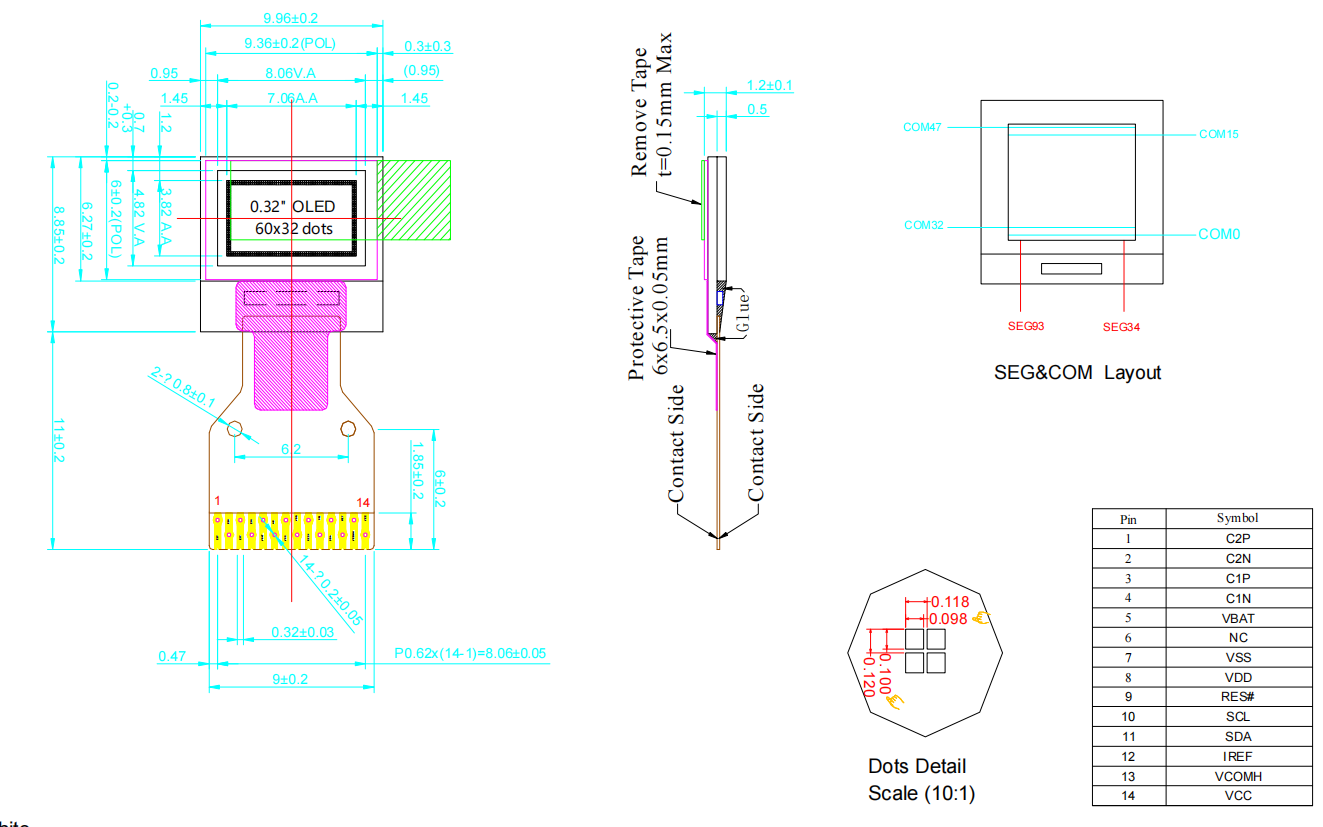

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 60 x 32
3) Panel Size: 9.96 x 8.85 x 1.2 (mm)
4) Active Area: 7.06 x 3.82 (mm)
5) Pixel Pitch: 0.118 x 0.12 (mm)
6) Pixel Size: 0.098 x 0.10 (mm)
