1.38'' 1.38inch bar AM OLED Display Panel ONCELL Touch Panel 128x400 ICNA3306 SPI Interface
Embedded AMOLED Display with Integrated Touch for Space-Constrained Designs
- Overview
- Detailed Datasheet
- Recommended Products

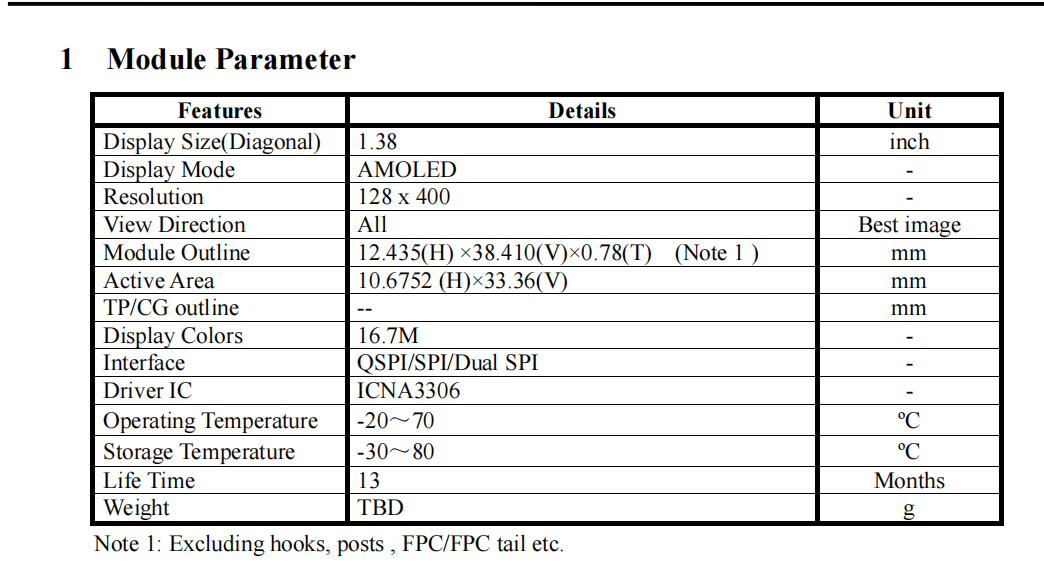

Display Size(Diagonal): 1.38inch
Display Mode: AMOLED
Resolution: 128 x 400
View Direction:ALL

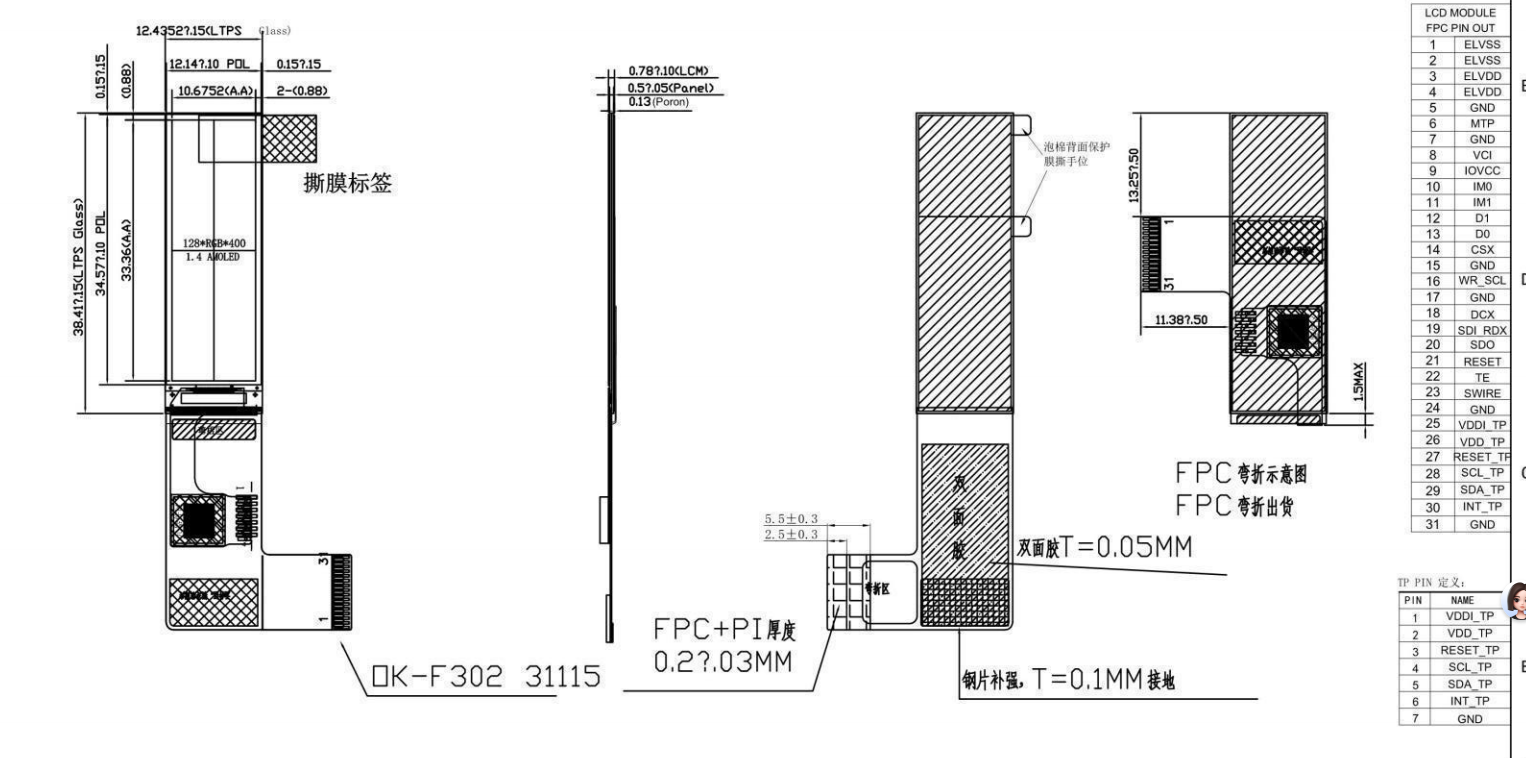

Module Outline: 12.435(H) ×38.410(V)×0.78(T) (Note 1 )mm
Active Area: 10.6752 (H)×33.36(V)mm
Display Colors: 16.7M
Interface: QSPI/SPI/Dual SPI
Driver IC:ICNA3306
Operating Temperature: -20～70ºC
Storage Temperature: -30～80ºC
Contact us for detailed datasheet and prices
