Driver IC: SH1107
Color options: White
Interface:Parallel/I2C/4-wire SPI

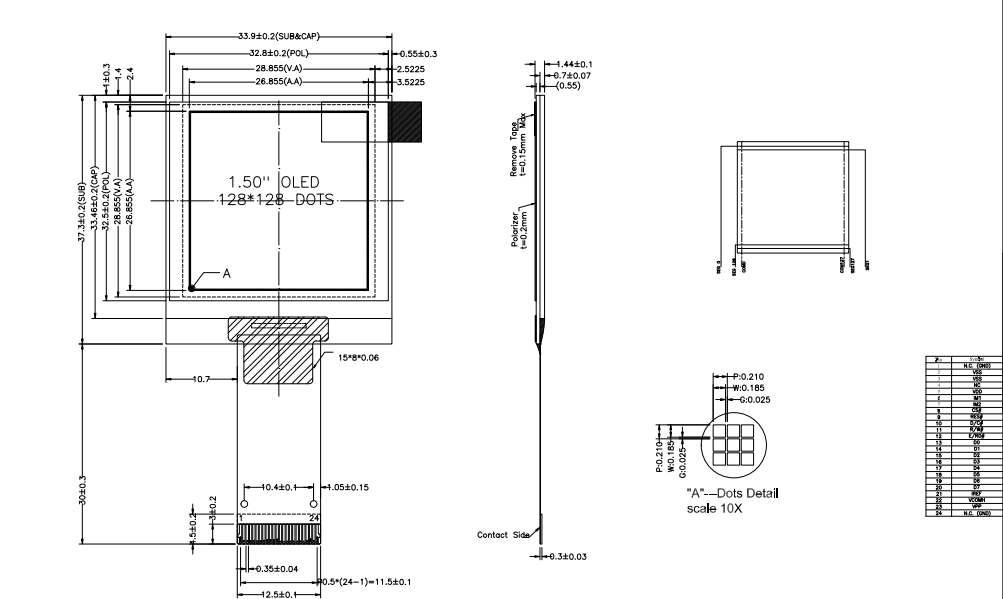

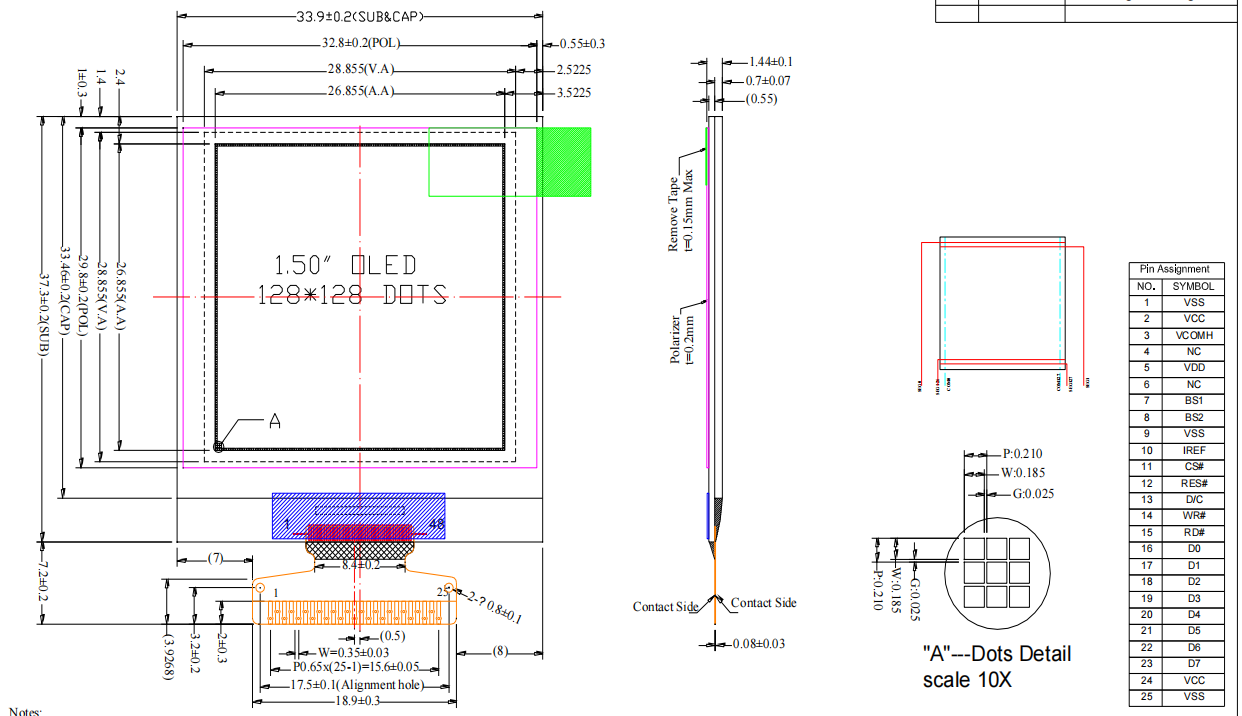

1) Outline Drawing:
According to the annexed outline drawing
2) Number of Pixels:
128 x 128
3) Panel Size:
33.9 x 37.3 x 1.44 (mm)
4) Active Area:
26.855 x 26.855 (mm)
5) Pixel Pitch:
0.21 x 0.21 (mm)
6) Pixel Size:
0.185 x 0.185 (mm)
