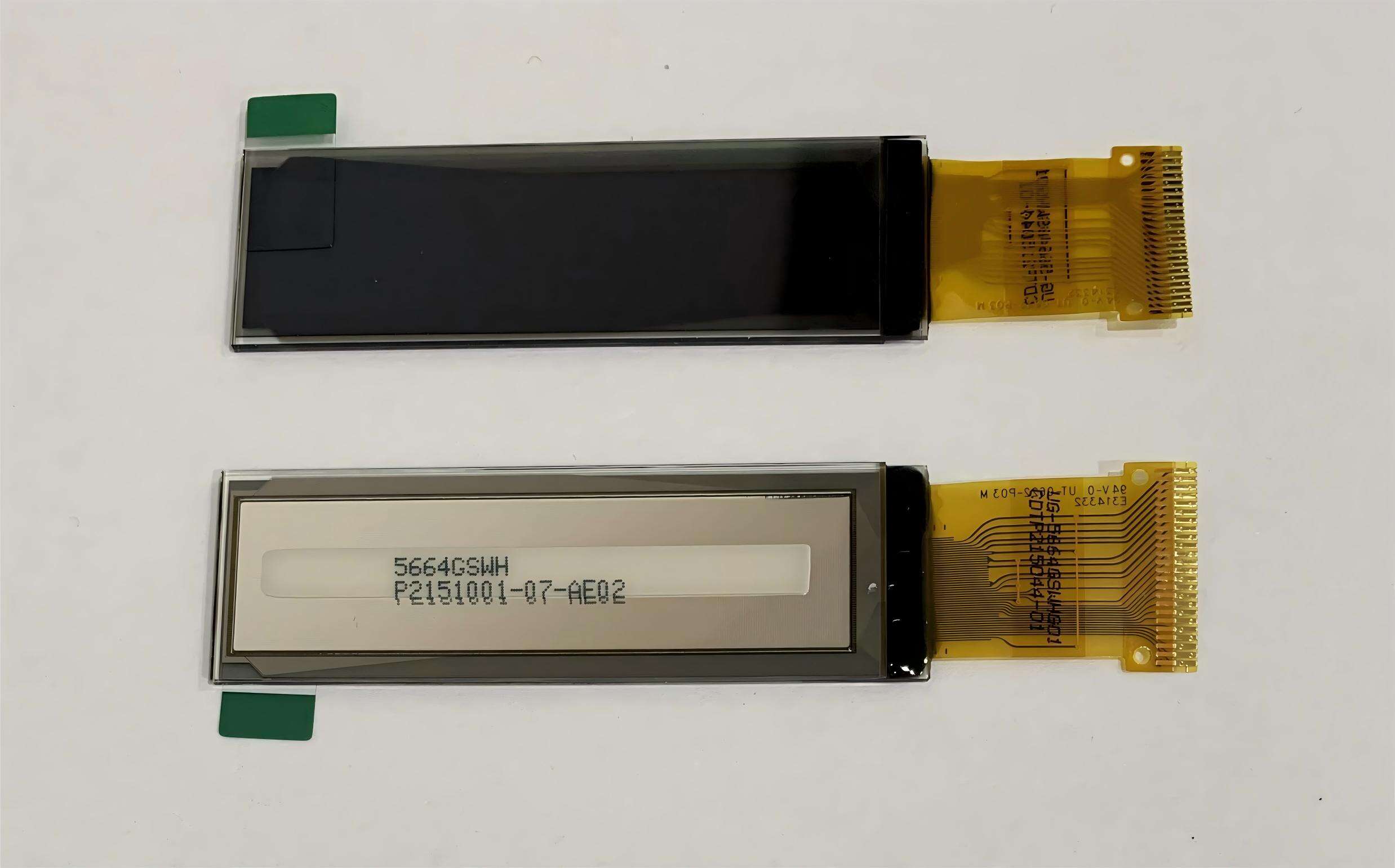

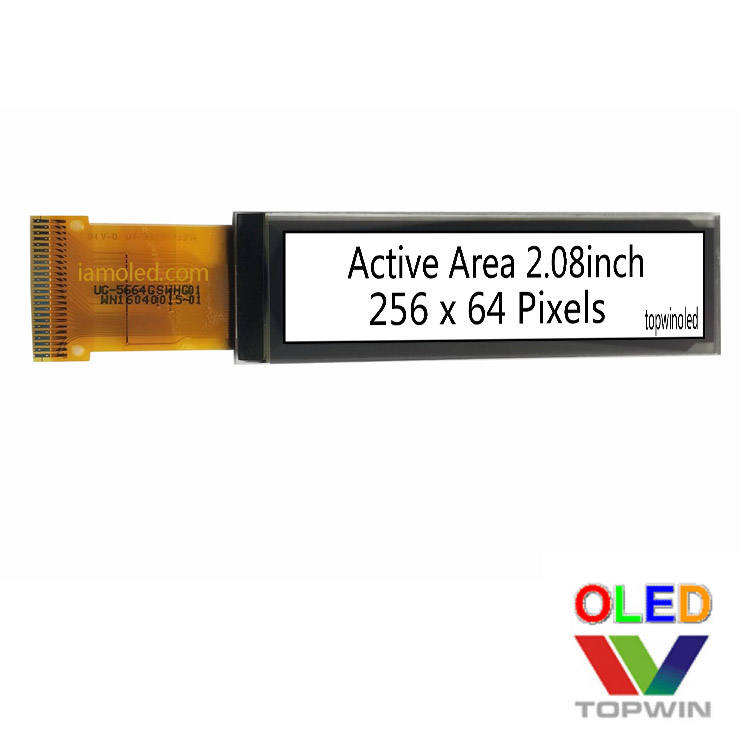

2.08'' 2.08inch oled display panel 256x64 resolution white blue colour 16 grayscale UG-5664GSWHG01 SH1122
- Overview
- Recommended Products
Driver IC:SH1122
Interface:8-bit 68xx/80xx Parallel,3/4-wire SPI, I²C
Color options:Blue/White
Display Specifications
1) Display Mode : Passive Matrix
2) Display Color : Monochrome with 16 Gray Scales (White)
3) Drive Duty : 1/64 Duty
Mechanical Specifications

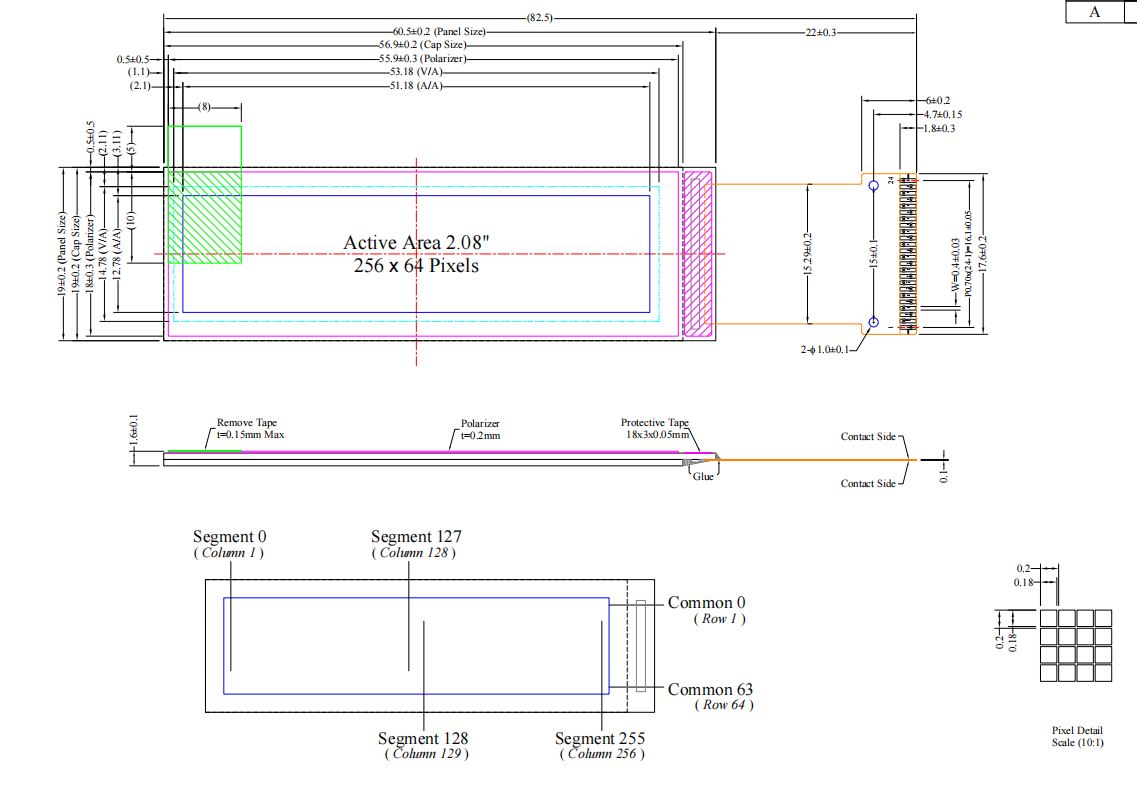

1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 256 × 64
3) Module Size : 82.50 × 19.00 × 1.60 (mm)
4) Panel Size : 60.50 × 19.00 × 1.60 (mm) including “Anti-Glare Polarizer”
5) Active Area : 51.18 × 12.78 (mm)
6) Pixel Pitch : 0.20 × 0.20 (mm)
7) Pixel Size : 0.18 × 0.18 (mm)
8) Weight : T.B.D. (g) ± 10%
