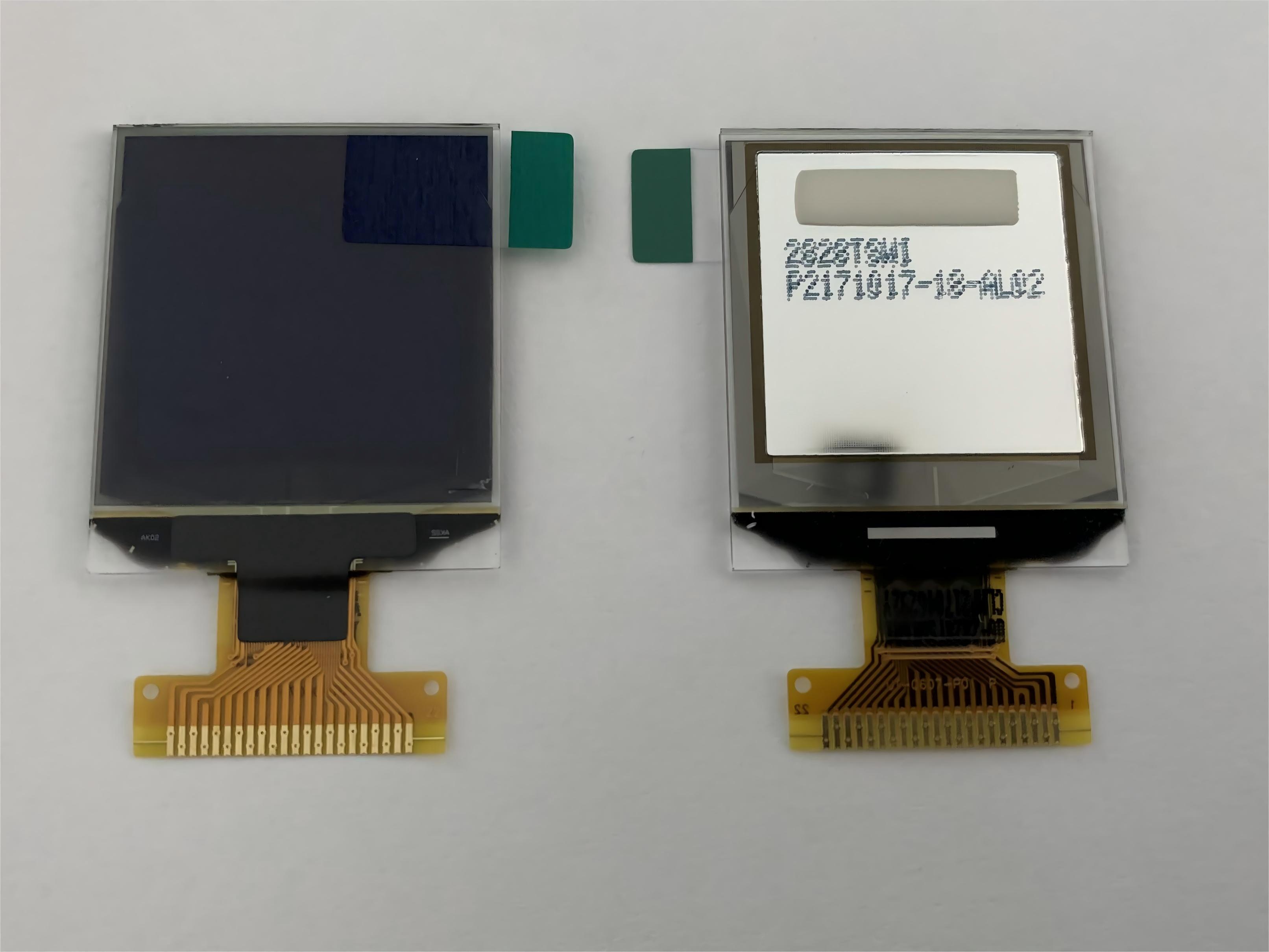

1.12'' 1.12inch oled display panel 128x128 pixels 22 pin white color soldering display screen VG-2828TSWIG01
- Overview
- Recommended Products
Driver IC:SH1107
Interface:Parallel/I2C/4-wire SPI
Color options:White

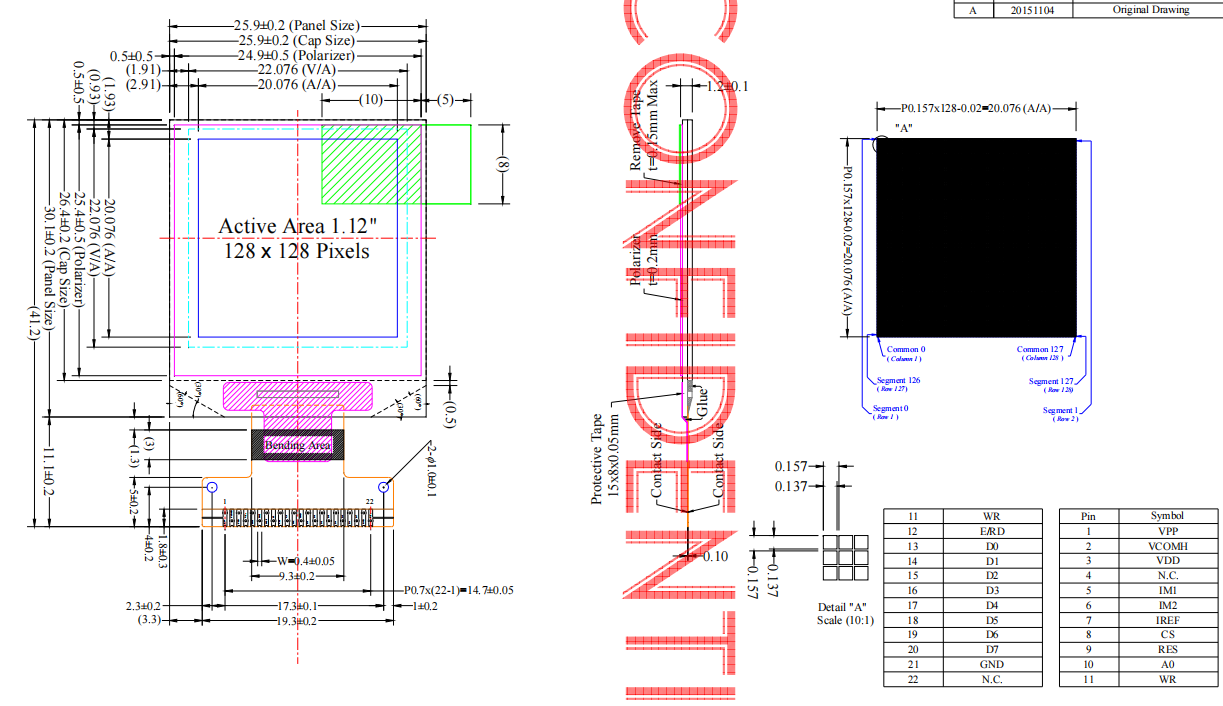

1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 128
3) Module Size : 25.90 × 41.20 × 1.20 (mm)
4) Panel Size : 25.90 × 30.10 × 1.20 (mm) including “Anti-Glare Polarizer”
5) Active Area : 20.076 × 20.076 (mm)
6) Pixel Pitch : 0.157 × 0.157 (mm)
7) Pixel Size : 0.137 × 0.137 (mm)
