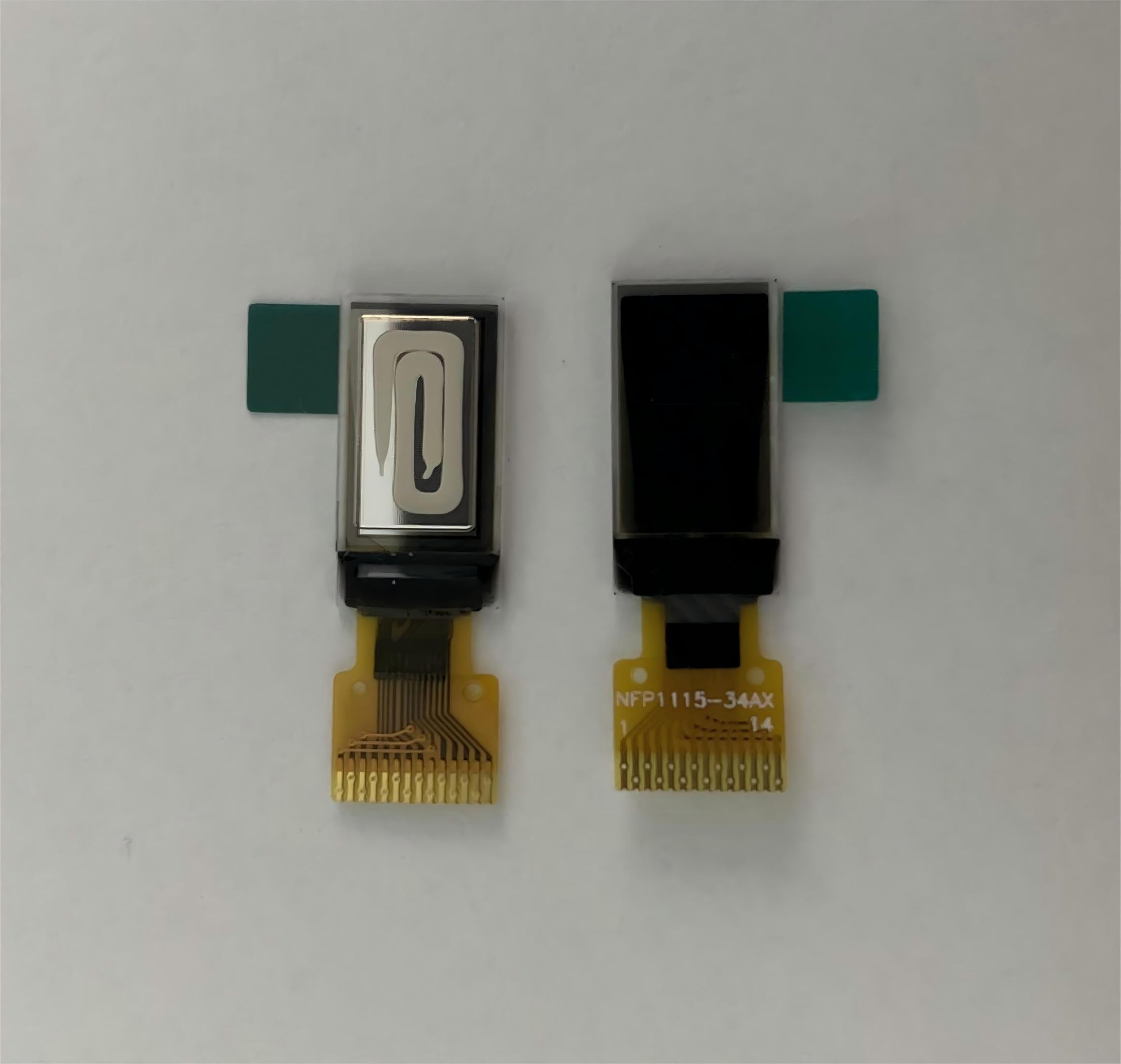

0.5'' 0.5inch small oled display 48x88 resolution white color 14 pin soldering type CH1115 IC
- Overview
- Recommended Products
Driver IC:CH1115
Interface: I²C
Color options:White
Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/48 Duty
Mechanical Specifications

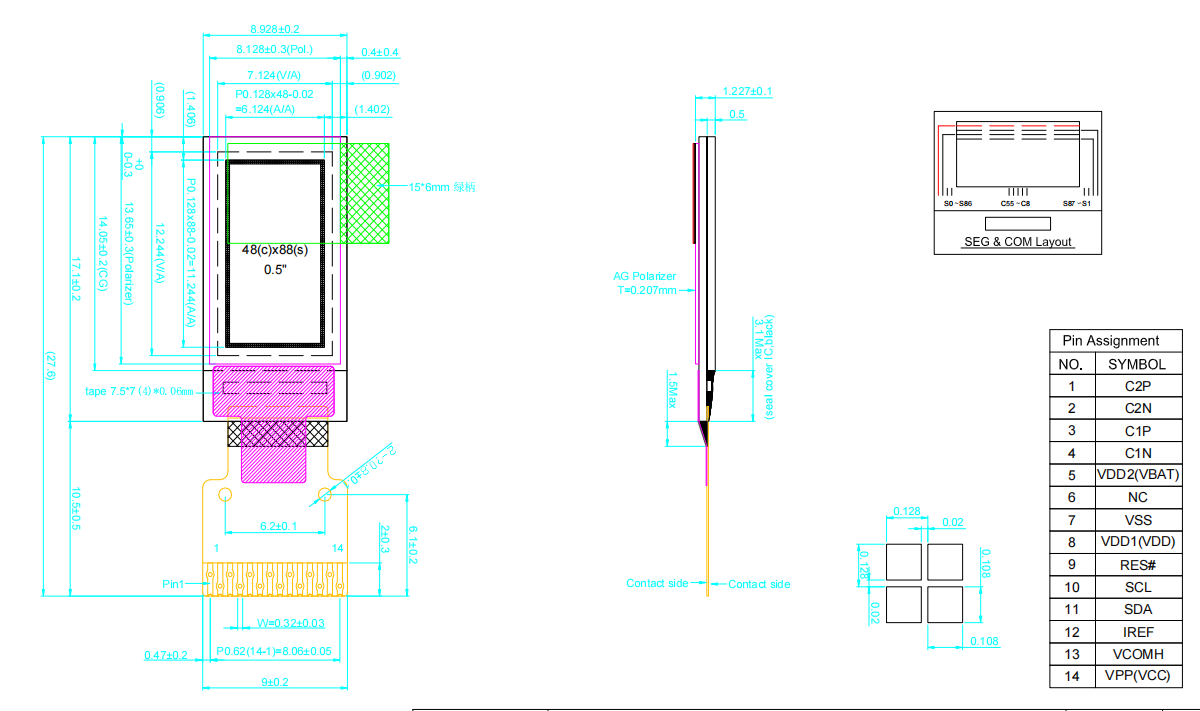

1) Outline Drawing: APPording to the annexed outline drawing
2) Number of Pixels: 88 x 48
3) Panel Size: 8.928 x 17.1 x 1.227 (mm)
4) Active Area: 6.124 x 11.244 (mm)
5) Pixel Pitch: 0.128 x 0.128 (mm)
6) Pixel Size: 0.108 x0.108 (mm)
