Driver IC:7315
Interface:Parallel /I2C/ 4-wire SPI
Color options:White
Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: Monochrome (White)
3) Drive Duty: 1/48 Duty
Mechanical Specifications

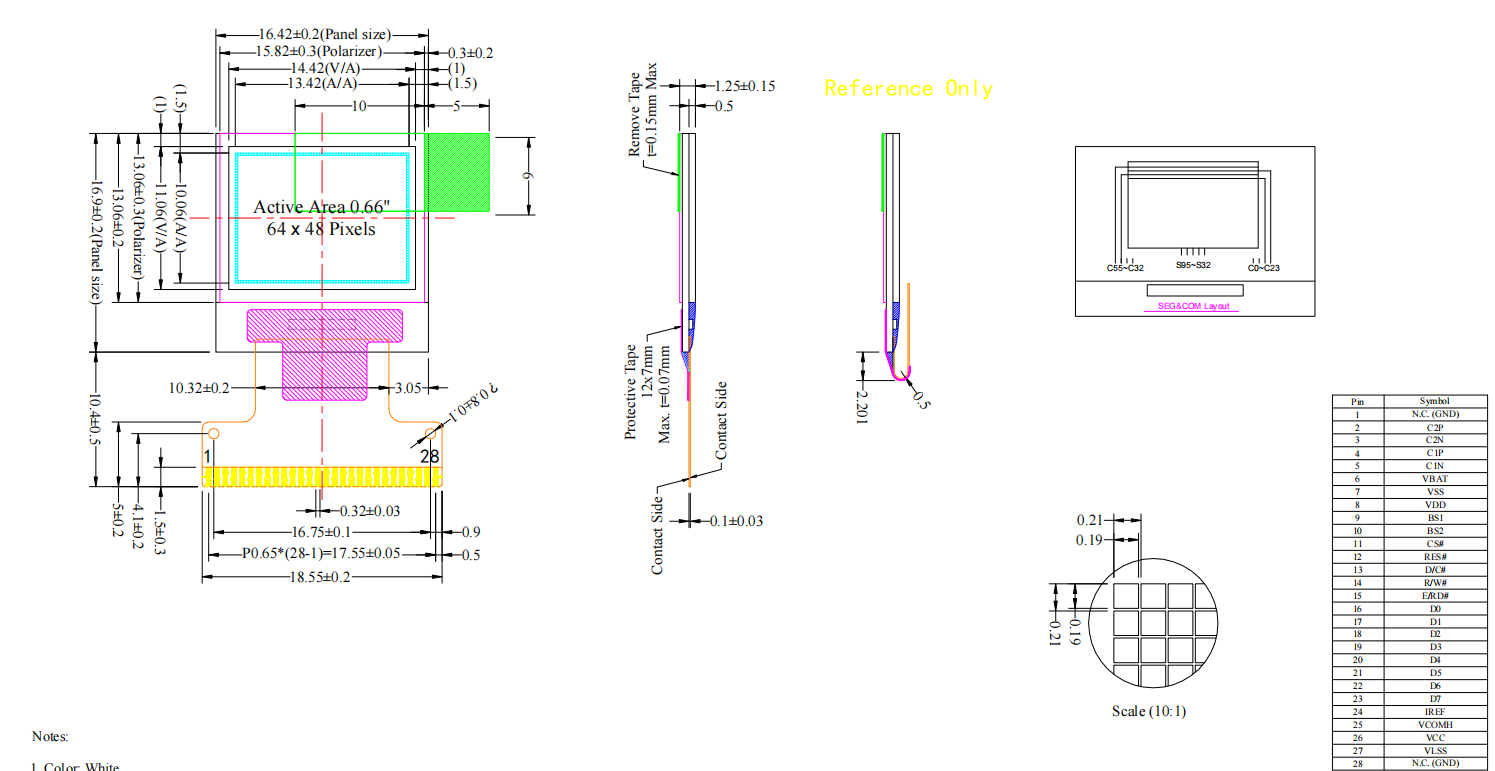

1) Outline Drawing: According to the annexed outline drawing
2) Number of Pixels: 64 x 48
3) Panel Size: 16.42 x 16.9 x 1.25 (mm)
4) Active Area: 13.42 x 10.06 (mm)
5) Pixel Pitch: 0.21 x 0.21(mm)
6) Pixel Size: 0.19 x 0.19 (mm)
