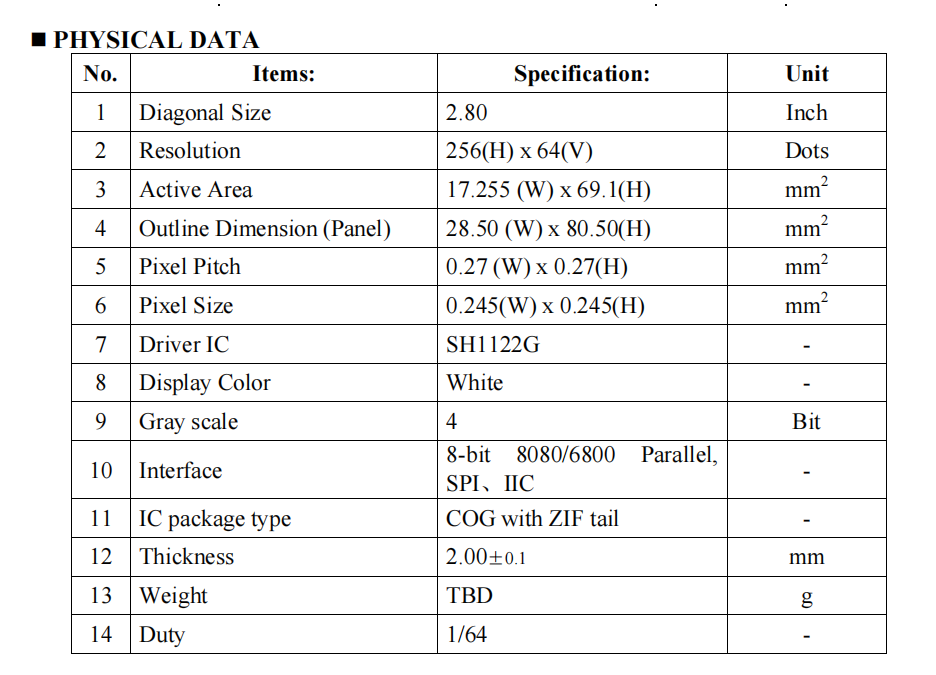

1 Diagonal Size 2.80 Inch
2 Resolution 256(H) x 64(V) Dots
3 Active Area 17.255 (W) x 69.1(H) mm
4 Outline Dimension (Panel) 28.50 (W) x 80.50(H) mm
5 Pixel Pitch 0.27 (W) x 0.27(H) mm
6 Pixel Size 0.245(W) x 0.245(H) mm
7 Driver IC SH1122G -
8 Display Color White -
9 Gray scale 4 Bit
10 Interface 8-bit 8080/6800 Parallel, SPI、IIC
11 IC package type COG with ZIF tail
12 Thickness 2.00±0.1 mm
13 Duty 1/64 -
