3.19inch 3.2inch bar amoled display panel CTP ONCEL Touch Panel 262x928 RM690C0 MIPI Interface Full Color Am oled screen
- Overview
- Recommended Products

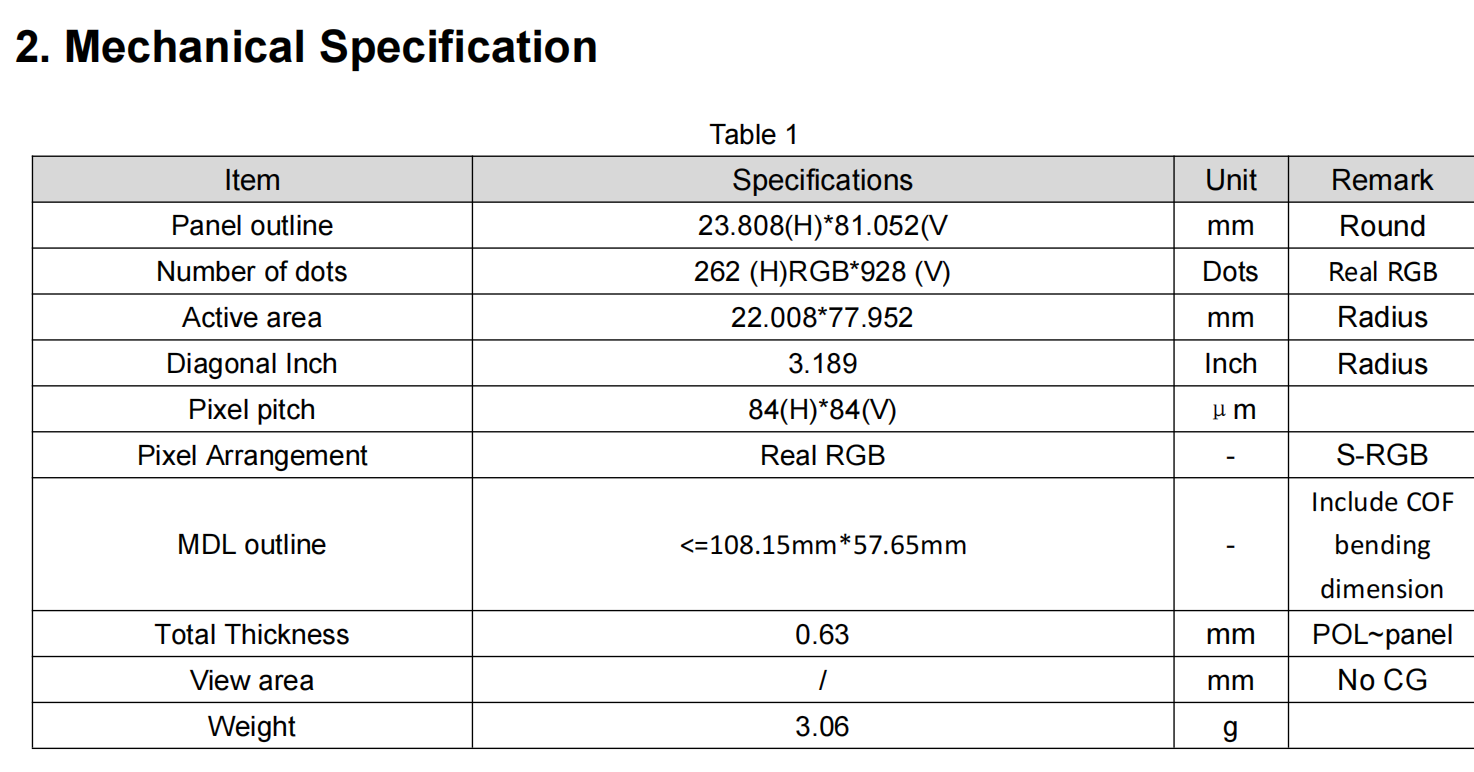

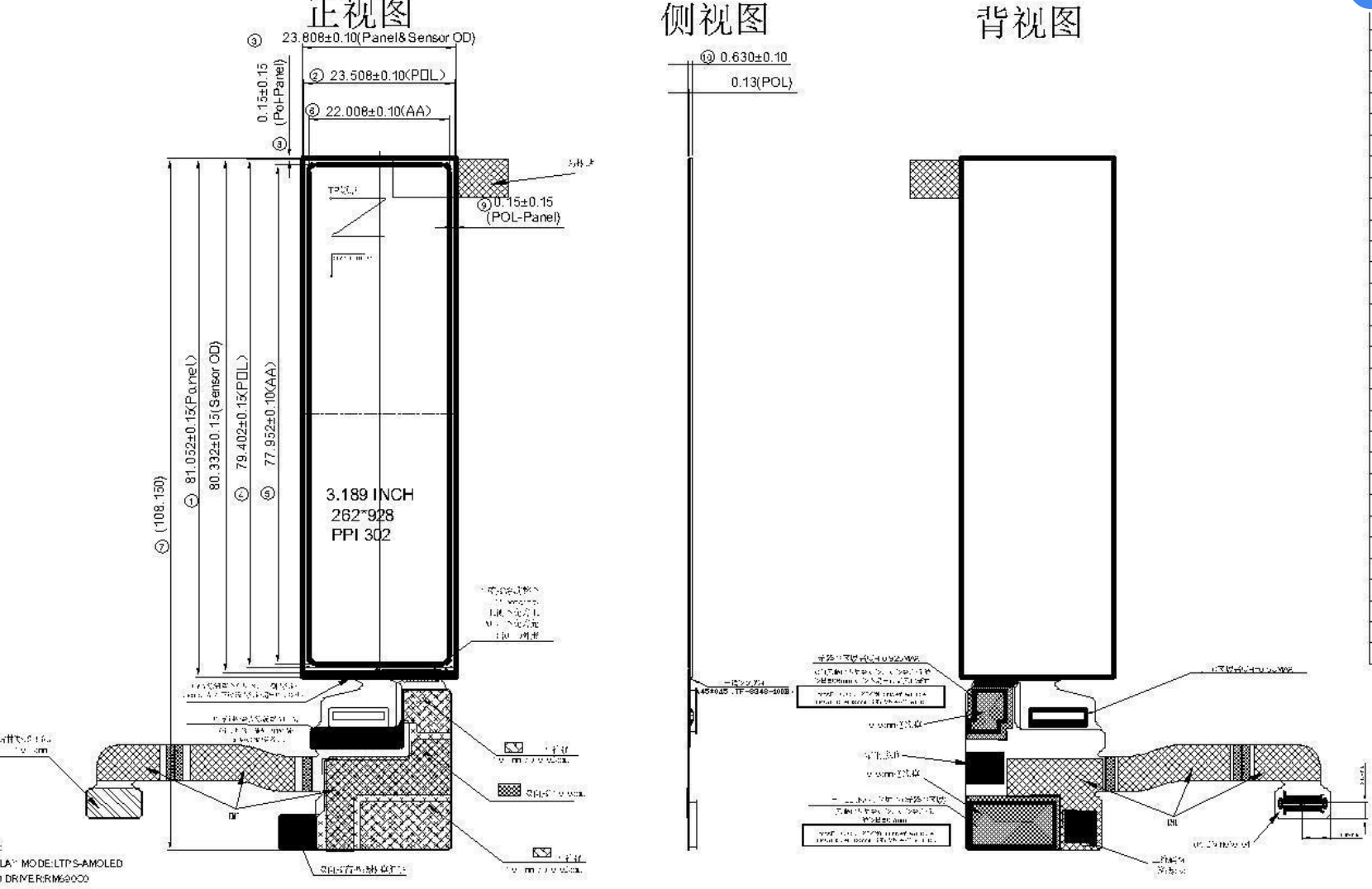

Panel outline 23.808(H)*81.052(V mm Round
Number of dots 262 (H)RGB*928 (V) Dots Real RGB
Active area 22.008*77.952 mm Radius
Diagonal Inch 3.189 Inch Radius
Pixel pitch 84(H)*84(V) μm
Pixel Arrangement Real RGB - S-RGB
MDL outline <=108.15mm*57.65mm -
Include COF
bending
dimension
Total Thickness 0.63 mm POL~panel
View area / mm No CG
Weight 3.06 g
