1.9" 1.9 inch resolution 170*320 LCD tft display panel IPS full color SPI MCU interface IC ST7789
- Overview
- Recommended Products

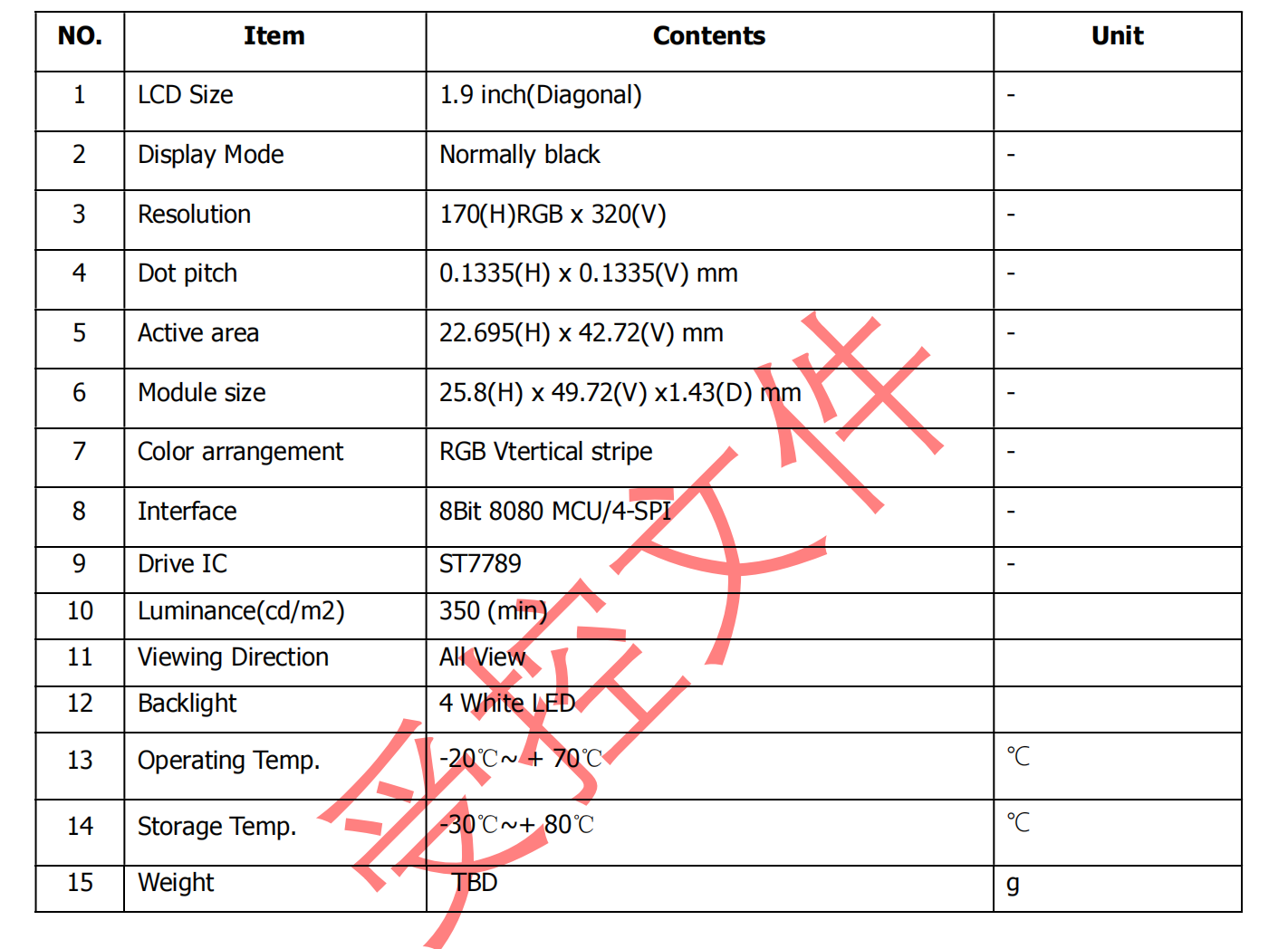

1 LCD Size 1.9 inch(Diagonal)
2 Display Mode Normally black
3 Resolution 170(H)RGB x 320(V)
4 Dot pitch 0.1335(H) x 0.1335(V) mm
5 Active area 22.695(H) x 42.72(V) mm

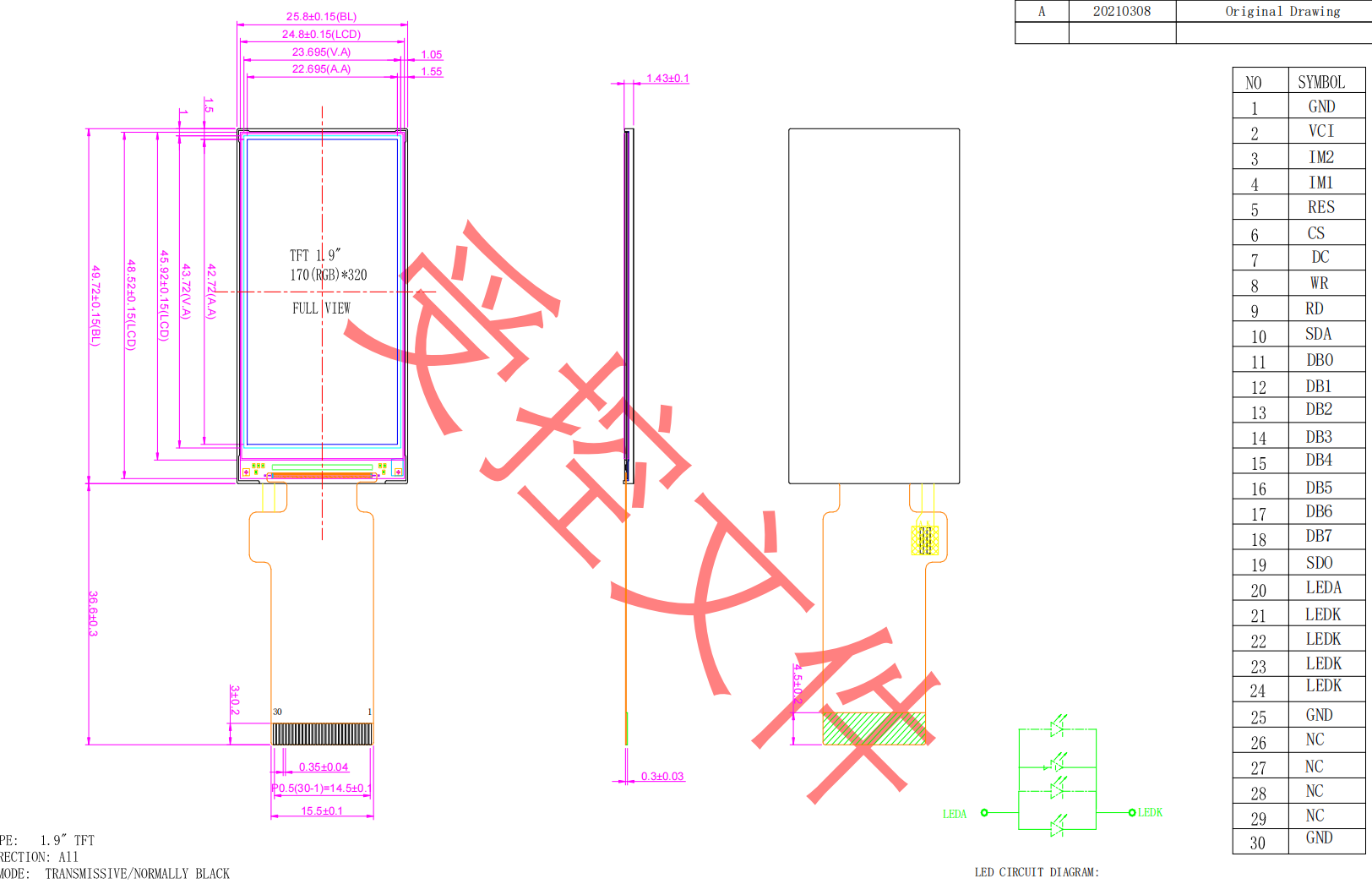

6 Module size 25.8(H) x 49.72(V) x1.43(D) mm
7 Color arrangement RGB Vtertical stripe
8 Interface 8Bit 8080 MCU/4-SPI
9 Drive IC ST7789
10 Luminance(cd/m2) 350 (min)
11 Viewing Direction All View
13 Operating Temp.-20℃~ + 70℃
14 Storage Temp.-30℃~+ 80℃
