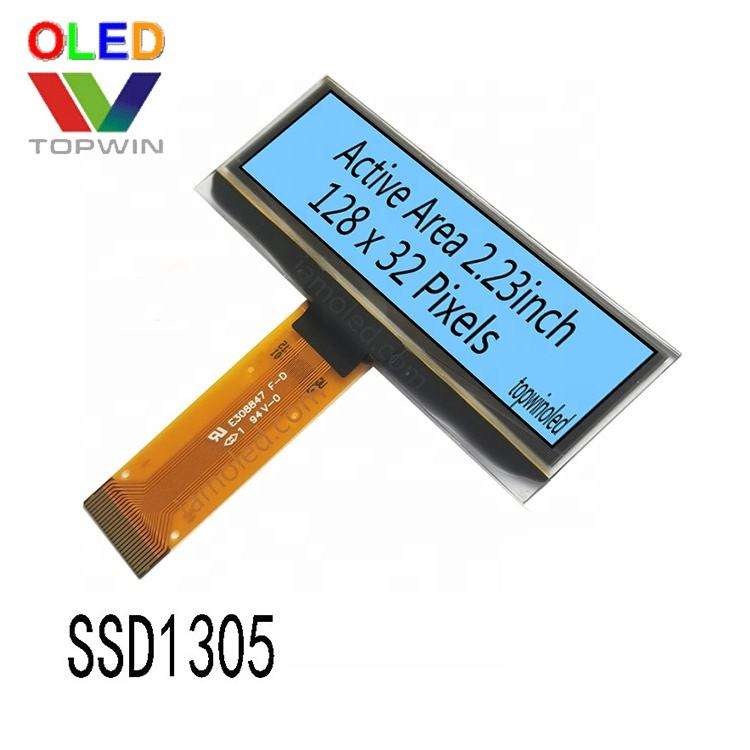

Driver IC: SSD1305/SSD1309
Interface:Parallel/I²C/4-wireSPI

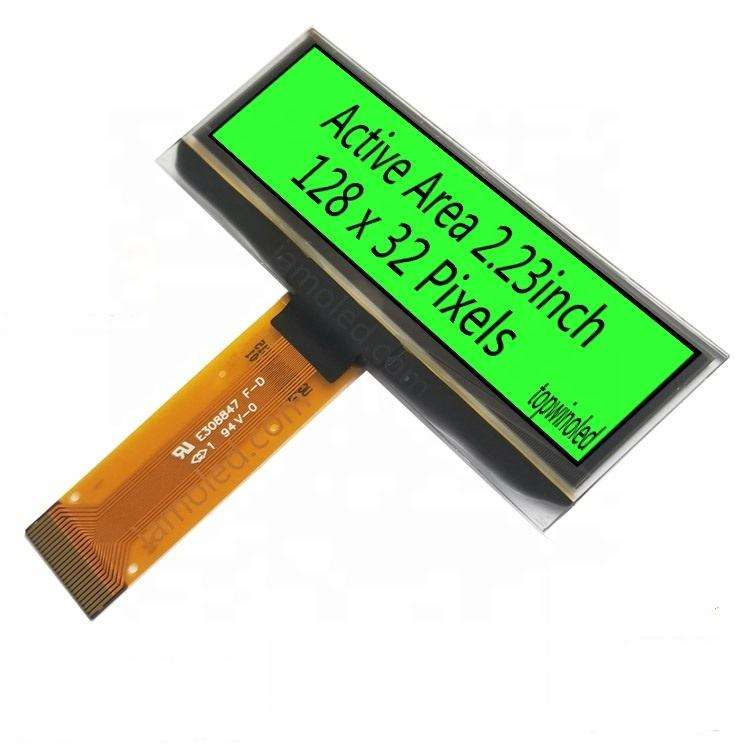

Color options:White/blue/yellow/green
1.1 Display Specifications
1) Display Mode : Passive Matrix
2) Display Color : Monochrome (White/Yellow/Green/Light Blue)
3) Drive Duty : 1/32 Duty
1.2 Mechanical Specifications
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 32
3) Module Size : 62.00 × 60.00 × 2.00 (mm)
3) Panel Size : 62.00 × 24.00 × 2.00 (mm) including “Anti-Glare Polarizer”
4) Active Area : 55.02 × 13.10 (mm)
5) Pixel Pitch : 0.43 × 0.41 (mm)
6) Pixel Size : 0.41 × 0.39 (mm)
7) Weight : 5.80 (g) ± 10%
