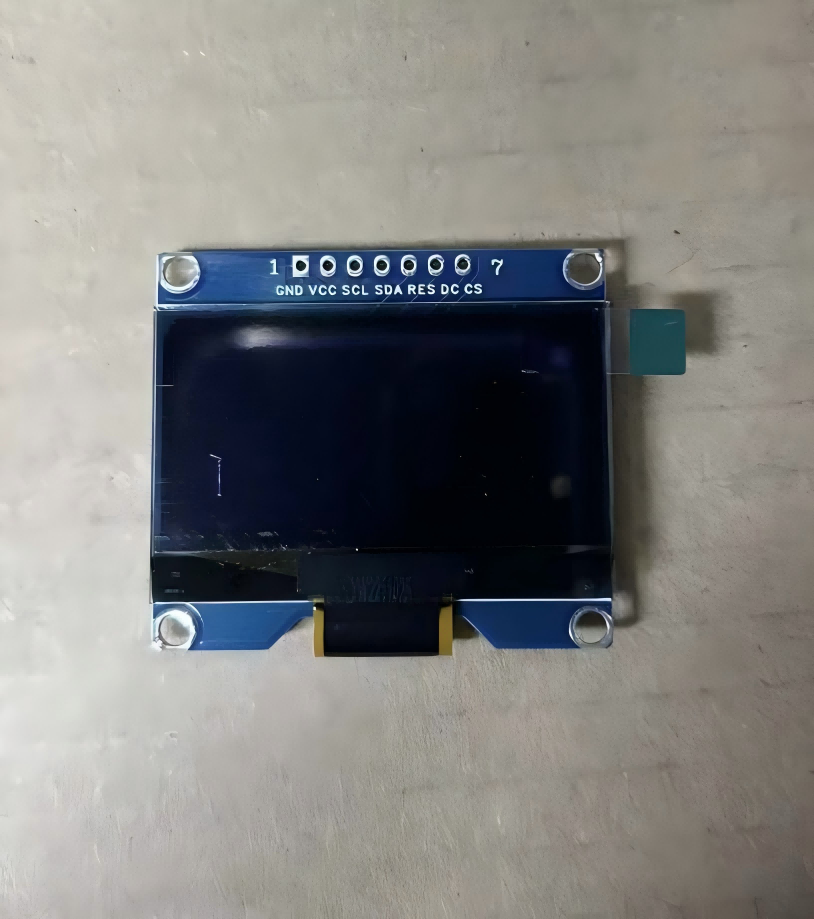

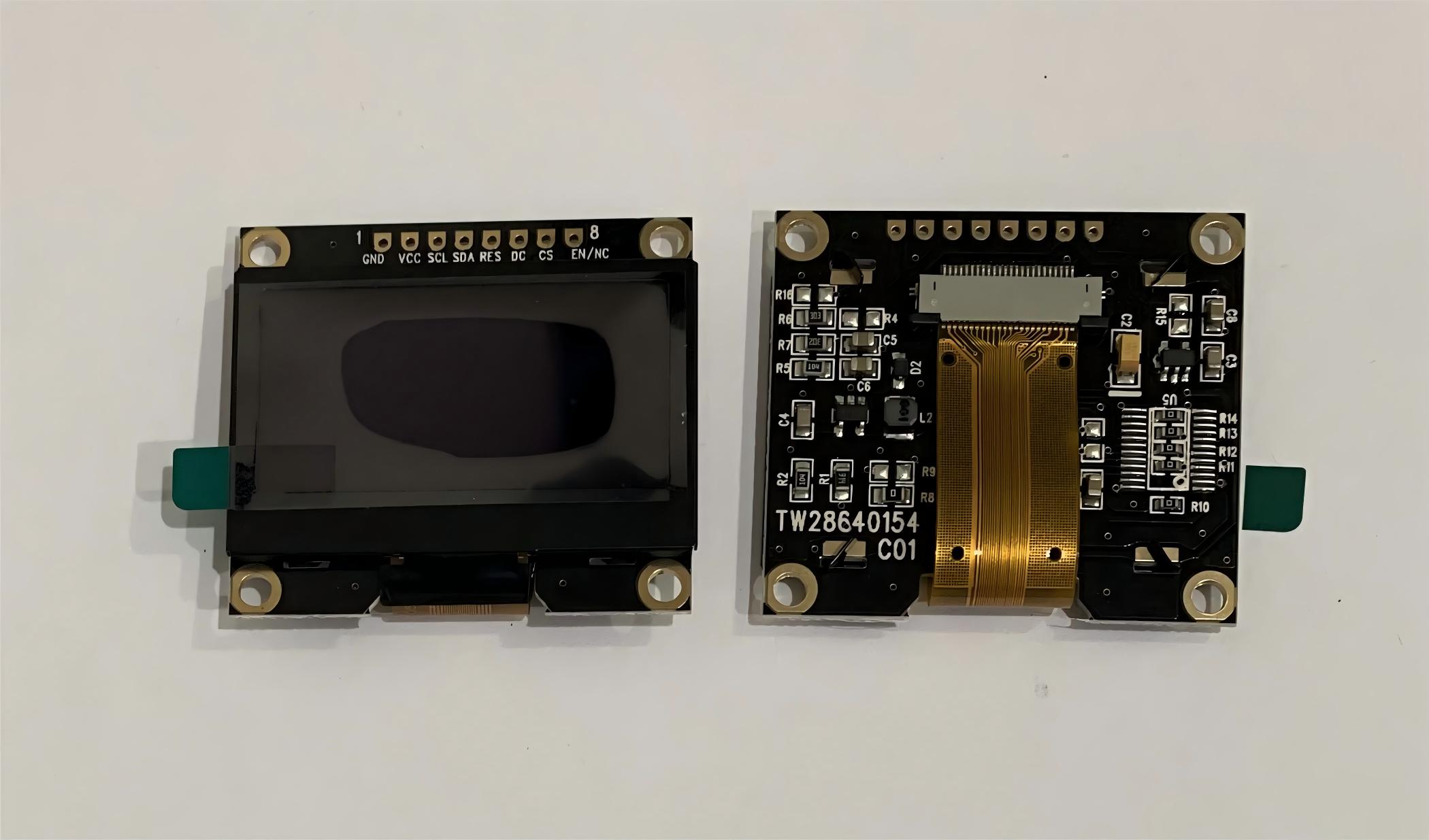

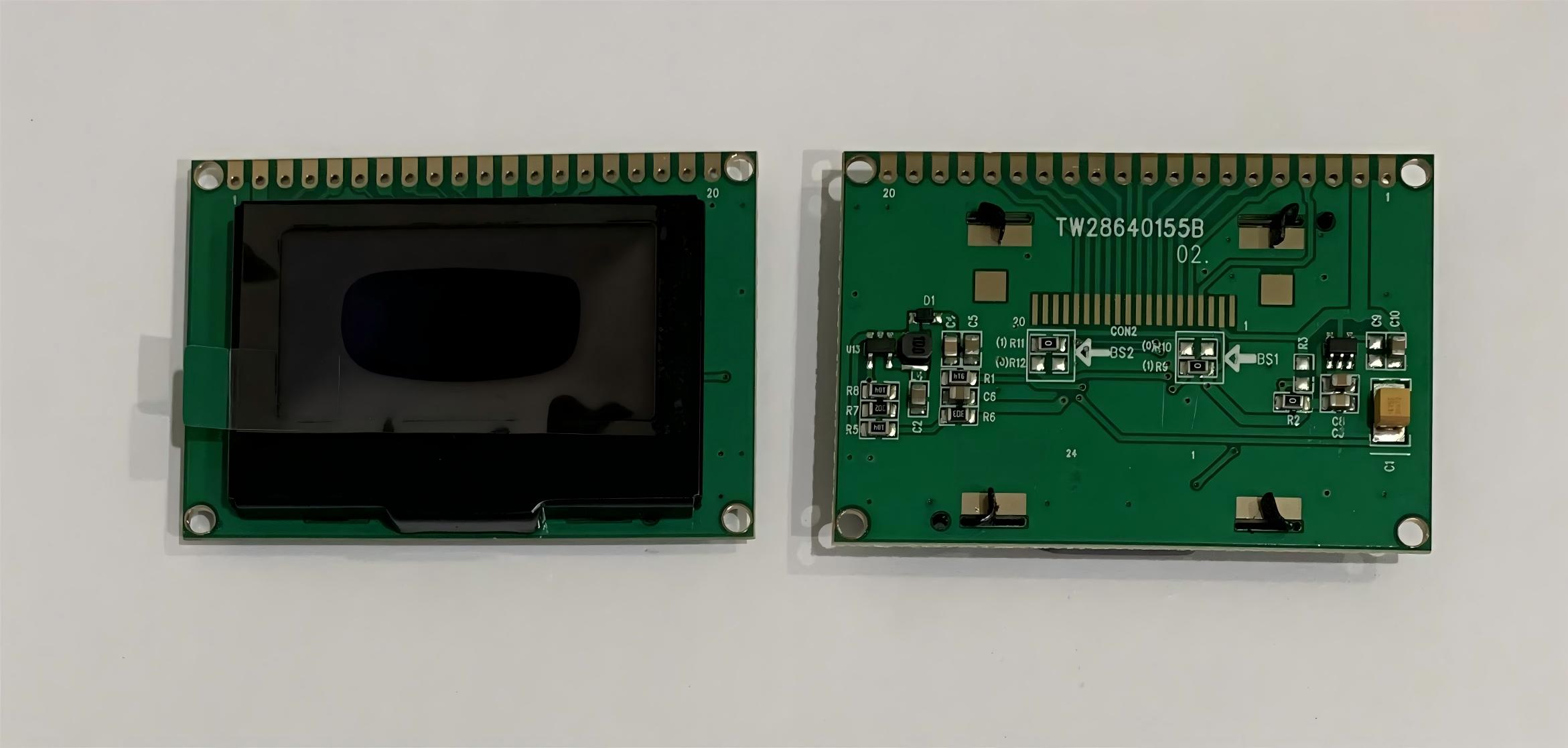

1.54'' 1.54inch 128x64 oled module 20pin 8pin 7pin oled display module ssd1309 SPI parallel I2C Interface inside
- Overview
- Recommended Products
1.1 Display Specifications
Display Mode
Passive Matrix—OLED：White/Yellow/Blue
Interface:8-Bit 68XX/80XX Parallel、4-Wire SPI、I2C
Drive Duty:1/64
Driver IC:SSD1305/1309/CH1116
Shell:0.5T

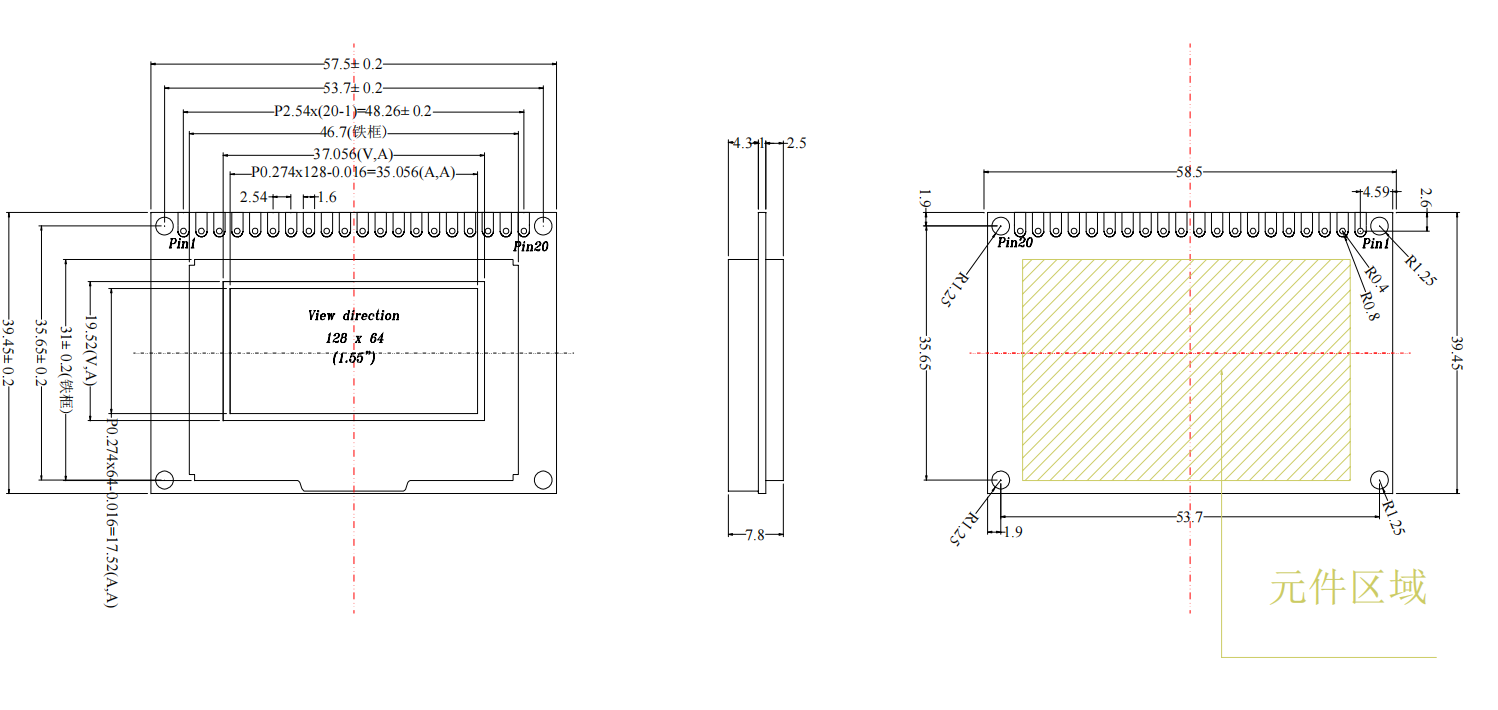

Mechanical Specifications
Outline Drawing:57.5(W)x39.45(H)x7.8Max(T) mm
View Area: 37.0(W)x19.5(H) mm
Active Area:35.052(W)x17.516(H) mm
Resolution:128dots x 64
Pixel Pitch:0.274(W)x0.274(H) mm
Pixel Size:0.258(W)x0.258(H) mm
