Landscape 10.1" 10.1 inch resolution 1024*600 LCD tft display panel IPS full color RGB interface
- Overview
- Recommended Products

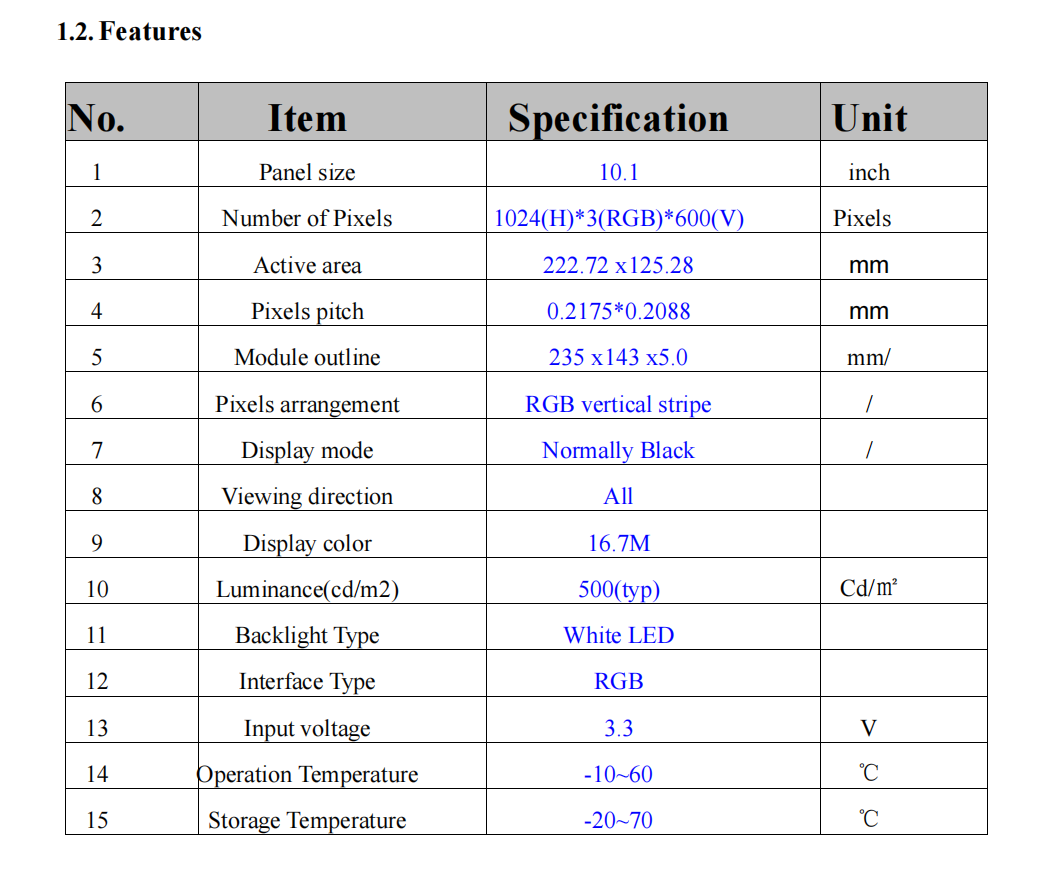

Size:10.1inch Landscape LCD display
Resolution：1024(H)*600(V)
Active area：222.72 x125.28mm
Pixels pitch：0.2175*0.2088mm
Module outline：235 x143 x5.0mm
Pixels arrangement：RGB vertical stripe
Display mode：Normally Black
Viewing direction：All
Display color：16.7M
Luminance(cd/m2)：500
Backlight Type：12 White LED

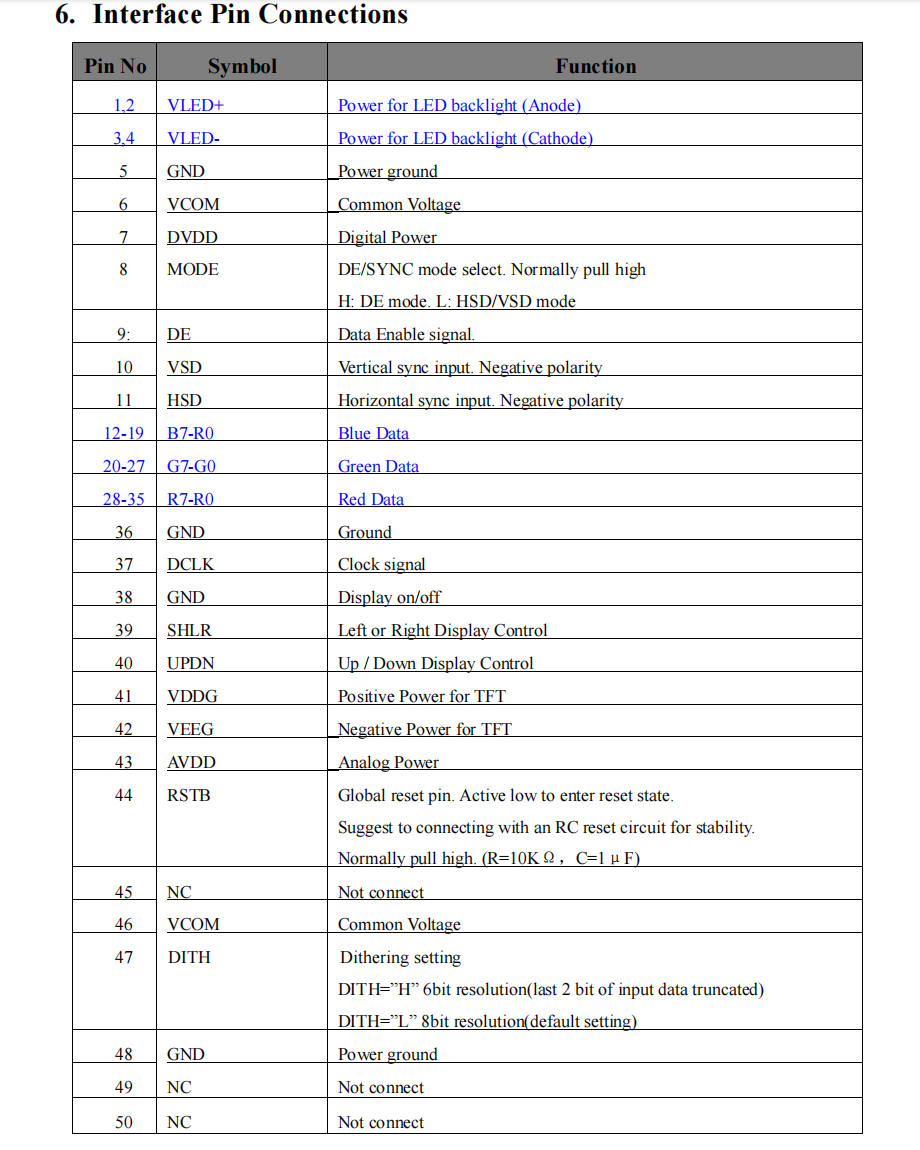

Interface Type：RGB
Input voltage：3.3V
Operation Temperature：-10~60℃
Storage Temperature：-20~70℃
