10.1inch Spectra 6 Color E-Ink Display for Digital Signage & Smart Information Boards
Designed for retail information boards, meeting room displays, and smart signage where color clarity and ultra-low power consumption are required.
- Overview
- Recommended Products

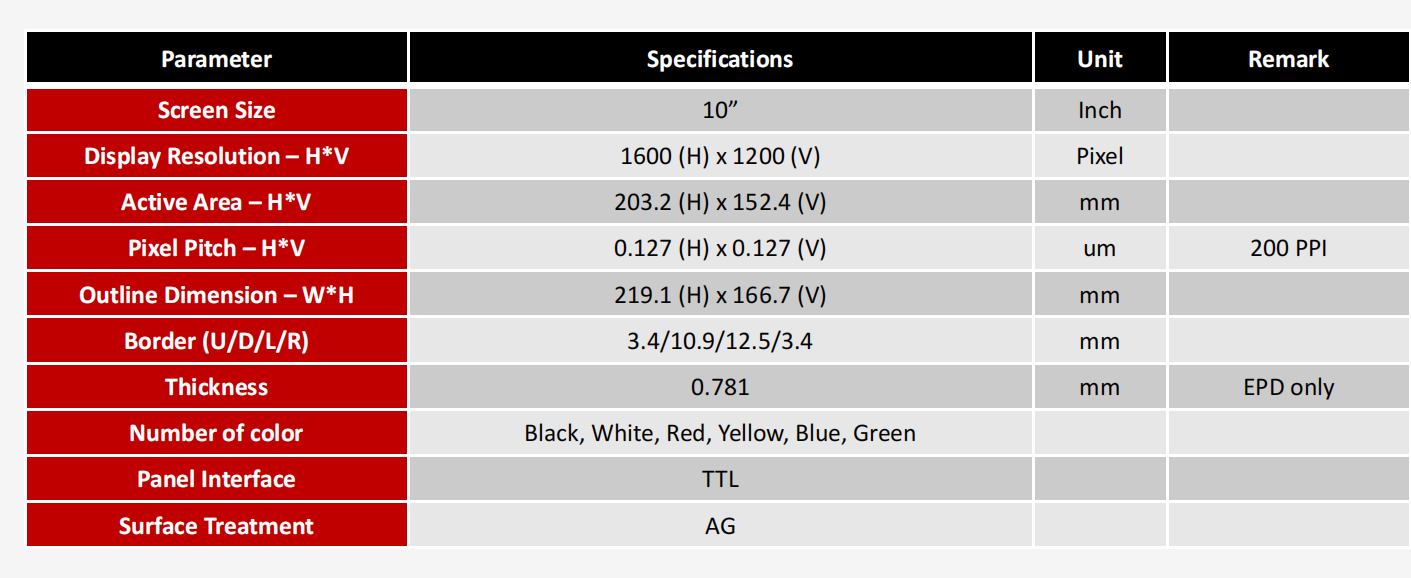

Screen Size 10 inch 200ppi
Display Resolution 1600 (H) x 1200 (V)
Pixel 4:3
Active Area 203.2 (H) x 152.4 (V)
Pixel Pitch 0.127 (H) x 0.127 (V) mm
Pixel Configuration Square

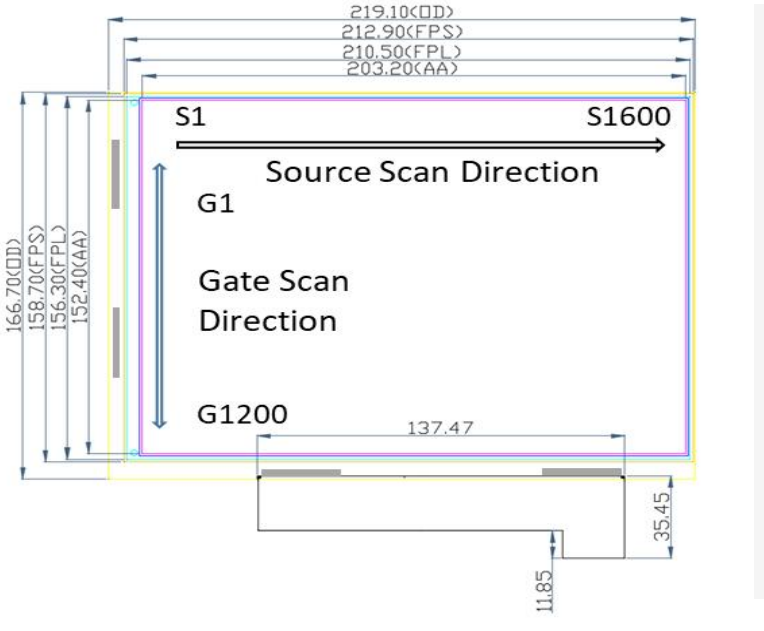

Outline Dimension 219.1 (H) x 166.7 (V) x 0.78(D) mm
Without masking film
Module Weight 31 ± 6g
Display operating mode Reflective mode
FPL E Ink Spectra 6
Surface treatment Anti-glare treatment for protective sheet
Operating Temp. Range 0 ~ 50 °C
Storage Temp. Range -25 ~ 60 °C
