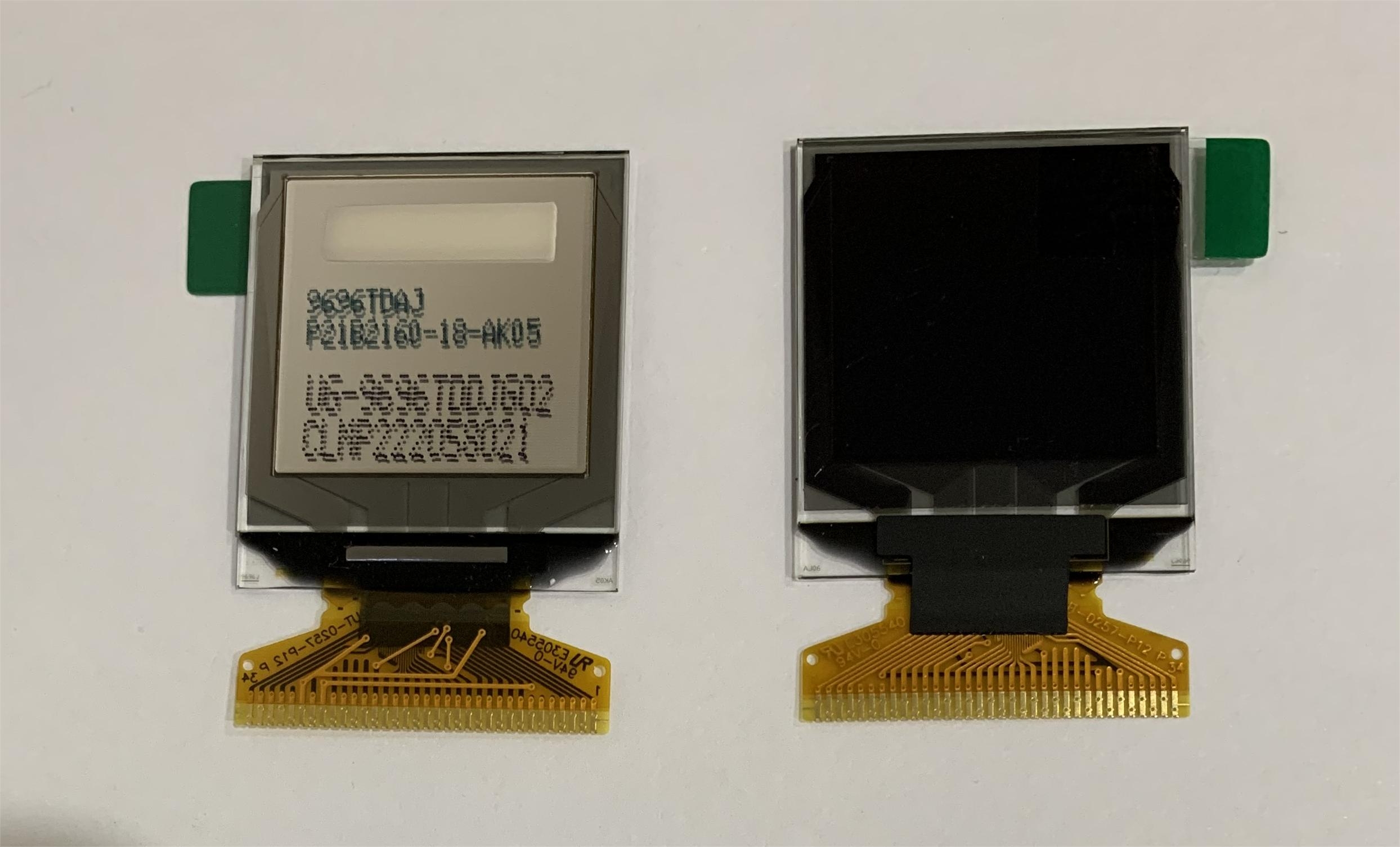

1.12'' 1.12inch 96x96 pixels 65k colorful Welding type small oled screen UG-9696TDDJG02 Parallel, 4-wire SPI
- Overview
- Recommended Products

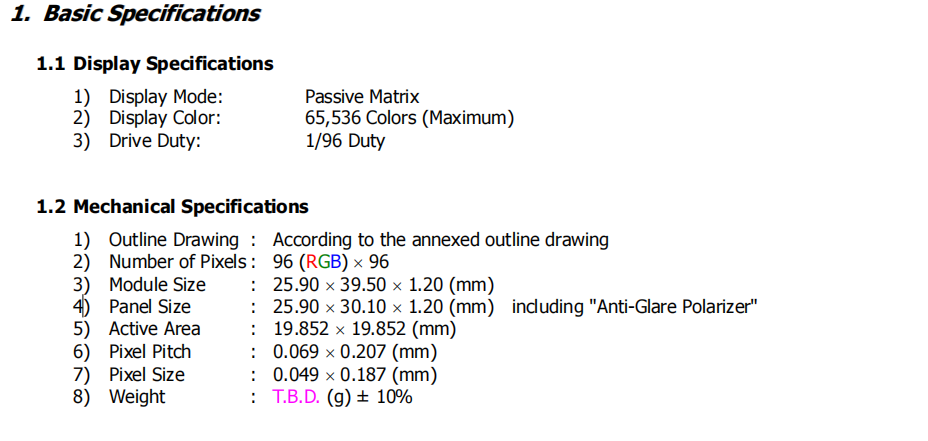

1.1 Display Specifications
1) Display Mode: Passive Matrix
2) Display Color: 65,536 Colors (Maximum)
3) Drive Duty: 1/96 Duty
1.2 Mechanical Specifications

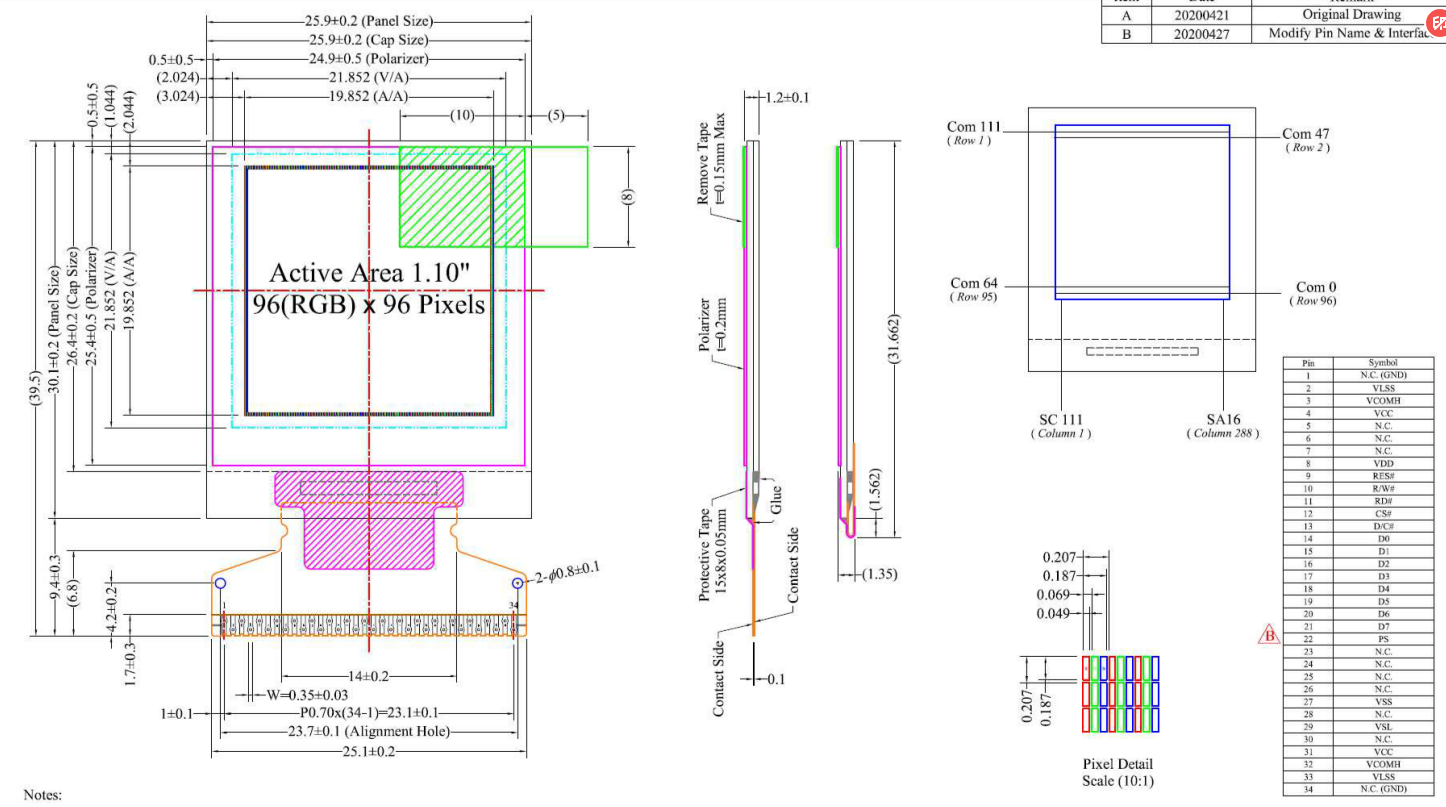

1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 96 (RGB) x 96
3) Module Size : 25.90x 39.50x 1.20 (mm)
4) Panel Size : 25.90 x30.10 x 1.20 (mm) including "Anti-Glare Polarizer"
5) Active Area : 19.852x 19.852 (mm)
6) Pixel Pitch : 0.069 x0.207 (mm)
7) Pixel Size : 0.049 x 0.187 (mm)
8) Weight : T.B.D. (g) ± 10%
Driver IC:1357
Interface:Parallel/4-wire SPI
