3.2" 3.2 inch 240x320 LCD tft display panel full color high resolution driver SPI MCU IC ILI9341V
- Overview
- Recommended Products
Size:3.2inch LCD

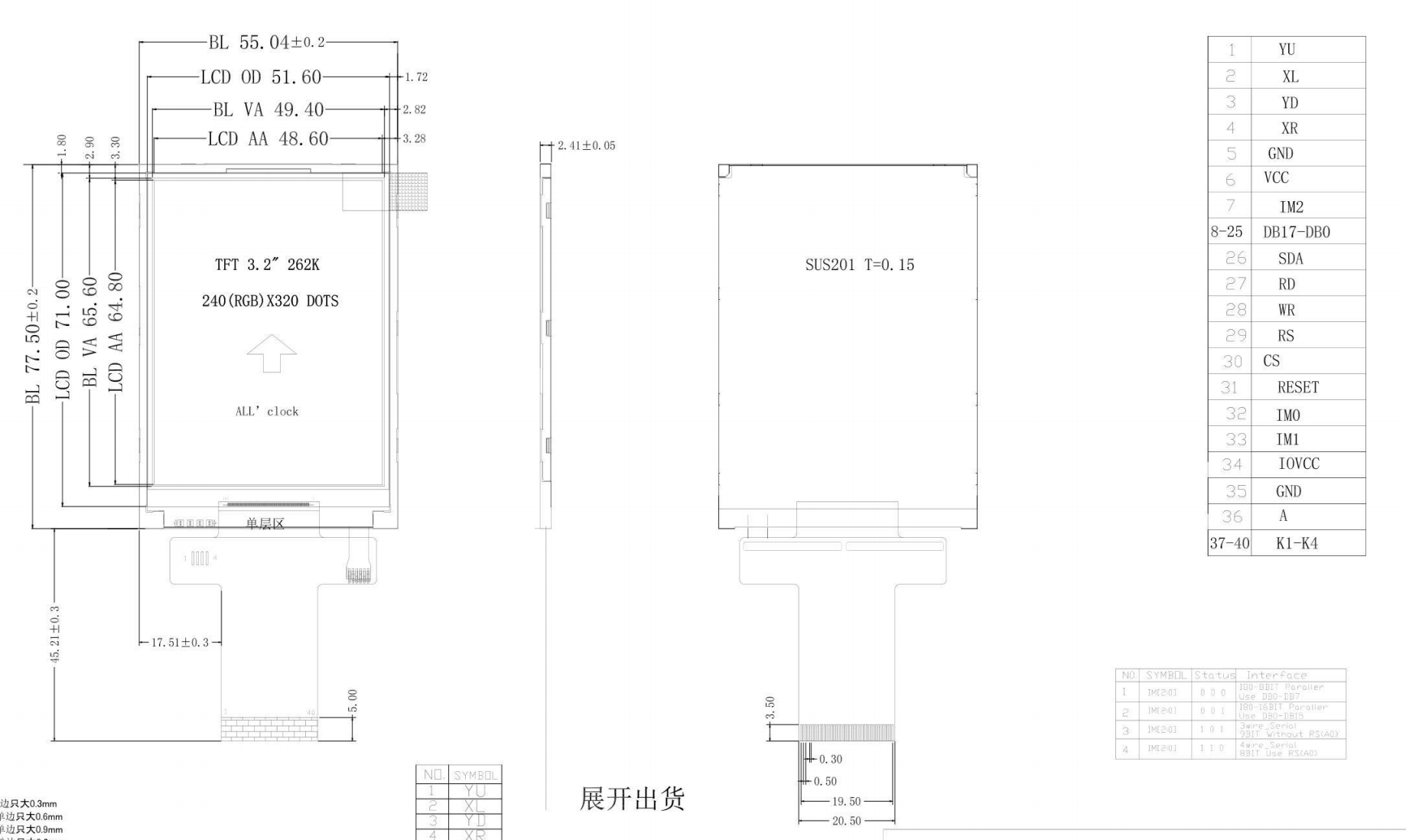

LCM outline size:55.04 (H) x 77.50 (V)mm
Active area:48.60 (H) x 64.80 (V)mm
Resolution:240(H)X320(V)
Pixel arrangement:RGB stripe
Pixel Pitch:51.6x 56.8mm
Display color:262K
Viewing direction:ALL
Controller / Driver:ILI9341V
Data interface:MCU/SPI
Backlight:5 White LEDs In Parallels
