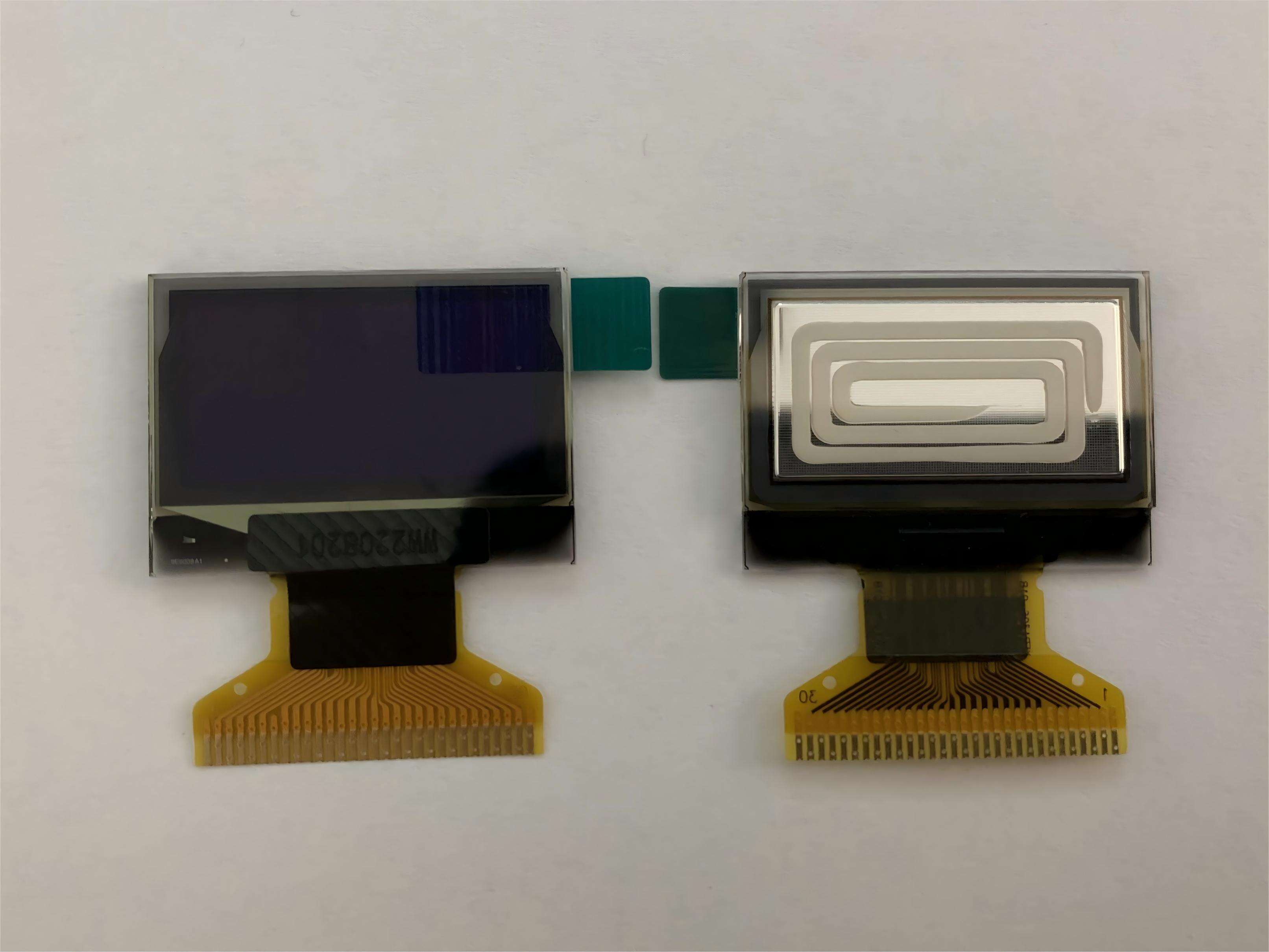

0.96" 0.96inch oled display 128x64 Resolution White blue Colour Oled Screen Panel SSD1315 SSD1306
- Overview
- Recommended Products
Driver IC:SSD1306/SSD1315
Interface: Parallel/I2C/ 4-wire SPI
Color options:Blue/White
Mechanical Specifications

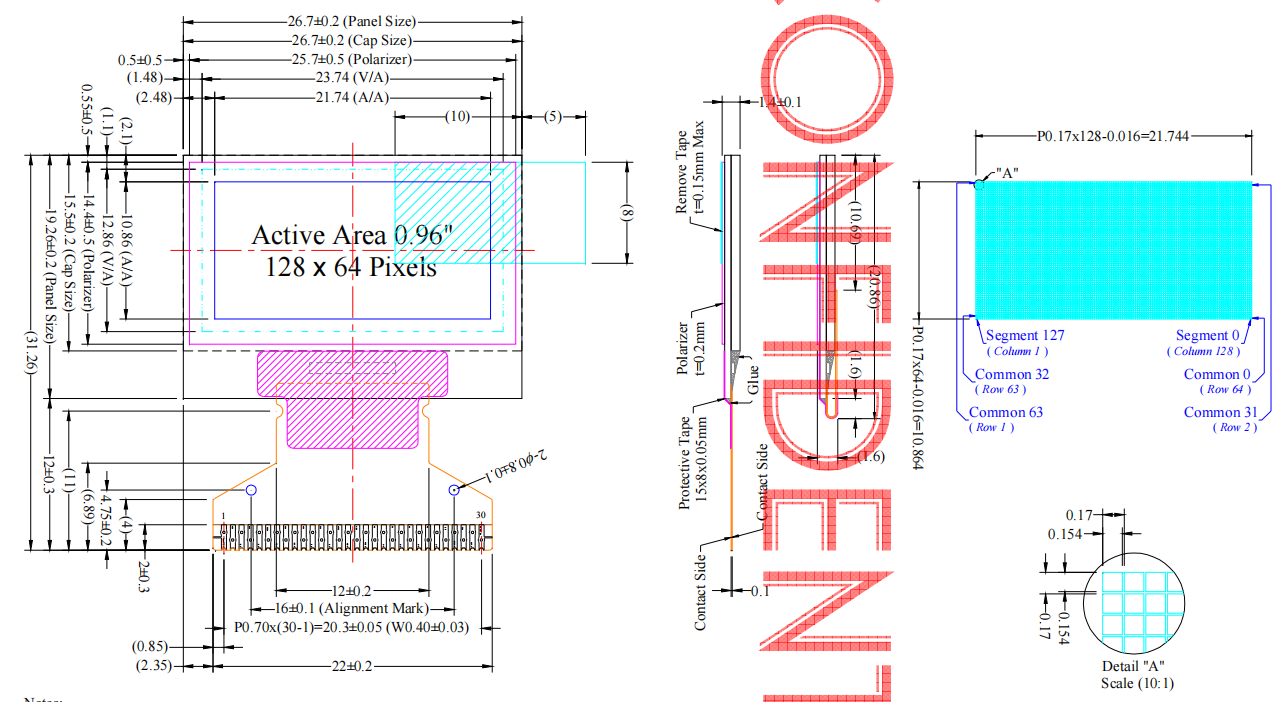

1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 128 × 64
3) Module Size : 26.70 × 19.26 × 1.45 (mm)
4) Panel Size : 26.70 × 19.26 × 1.45 (mm) including “Anti-Glare Polarizer”
5) Active Area : 21.744 × 10.864 (mm)
6) Pixel Pitch : 0.17 × 0.17 (mm)
7) Pixel Size : 0.154 × 0.154 (mm)
8) Weight : 1.54 (g) ± 10%
