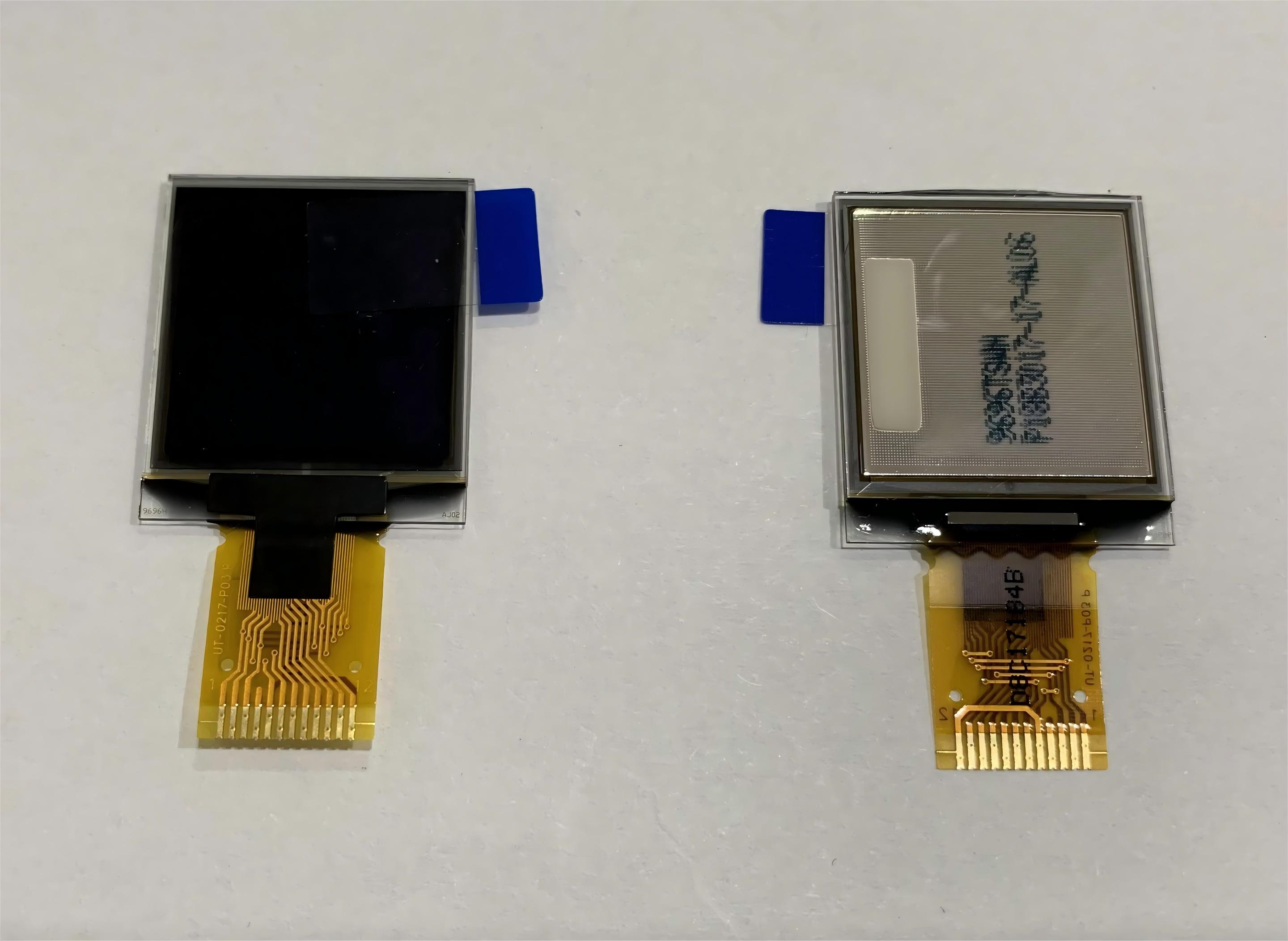

Square 0.96" 0.96inch small oled display panel 96x96 SSD1317 i2c display mini oled display oled screen soldering 12pin
- Overview
- Recommended Products
Driver IC:SSD1317
Interface:I²C
Color options:White

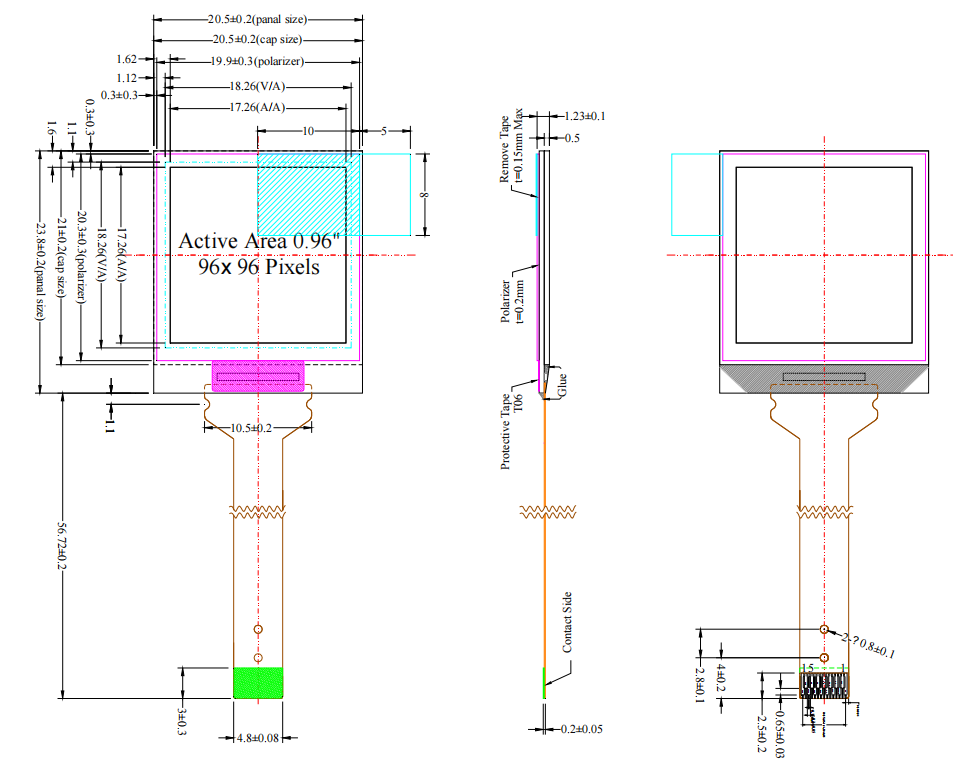

1) Outline Drawing:
According to the annexed outline drawing
2) Number of Pixels: 96 x 96
3) Panel Size:
20.5x 23.8 x 1.2 (mm)
4) Active Area:
17.26 x 17.26 (mm)
5) Pixel Pitch:
0.18 x 0.18 (mm)
6) Pixel Size:
0.16 x 0.16 (mm)
7) Weight:
1.147g
