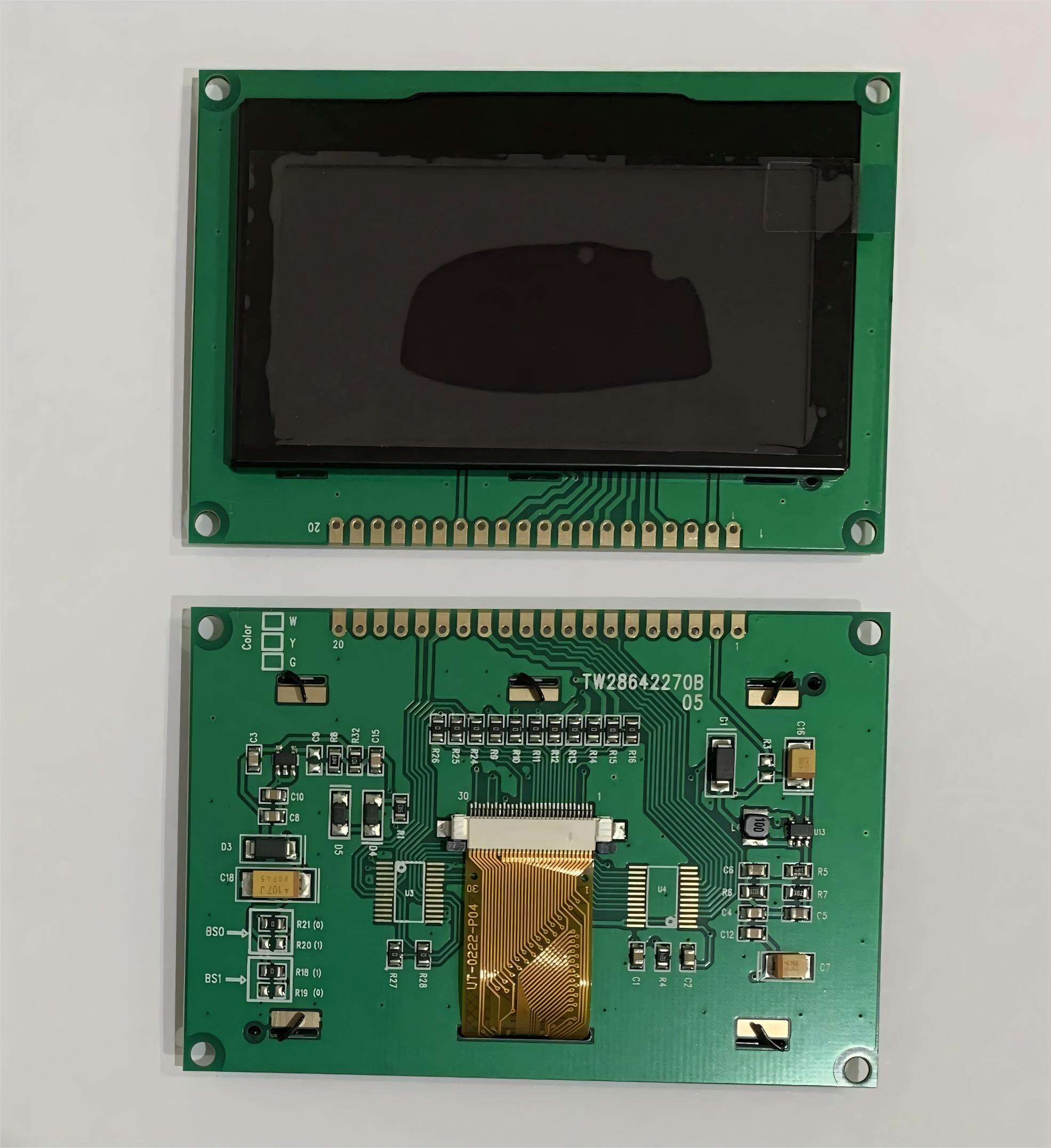

1.1 Display Specifications
Display Mode
Passive Matrix—OLED
Color:Yellow/White
Interface:8-Bit 68XX/80XX Parallel、 SPI、I2C
Drive Duty:1/64
Driver IC:SSD1363
Shell:0.5T

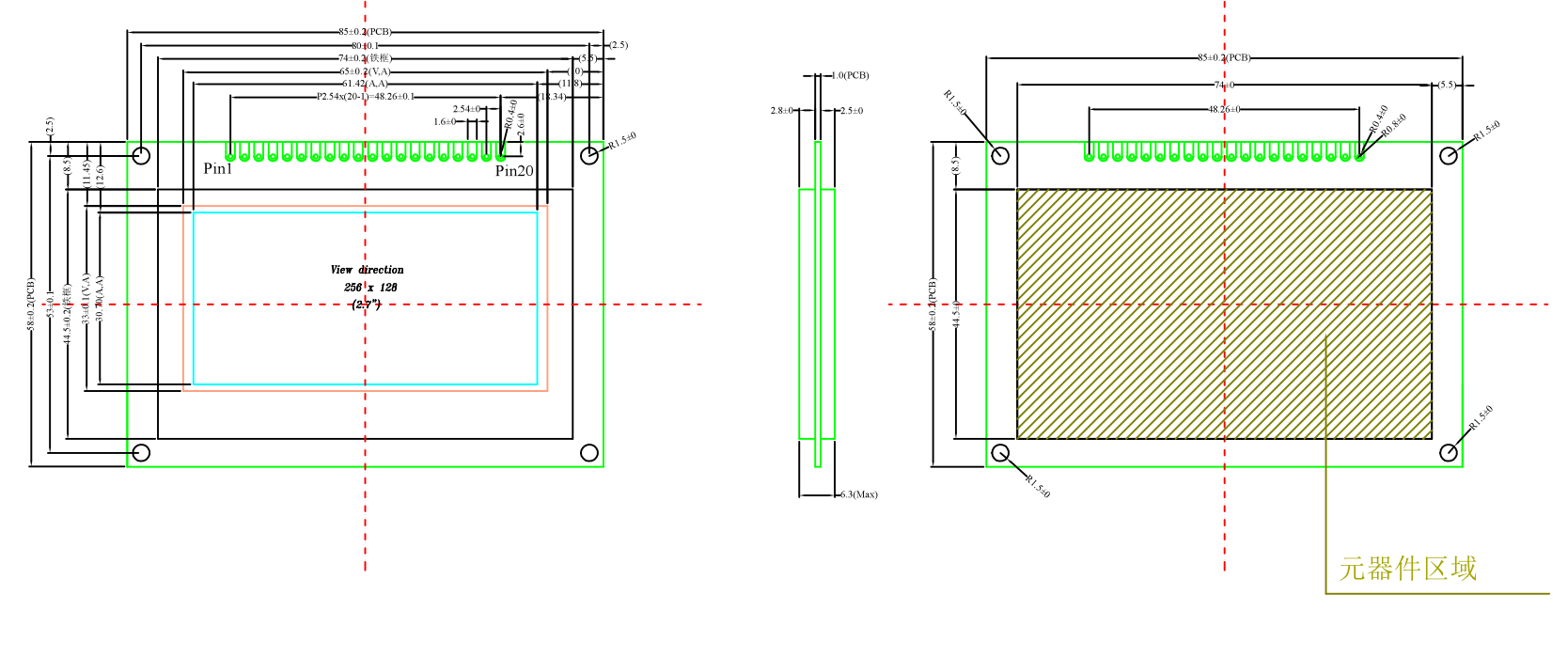

Mechanical Specifications
Outline Drawing :85.0(W)x58.0(H)x7.0Max(T) mm
View Area 65.0(W)x33.0(H) mm
Active Area: 61.42(W)x30.70(H) mm
Resolution: 256dots x 128dots --
Pixel Pitch 0.24(W)x0.24(H) mm
Pixel Size 0.22(W)x0.22(H) mm
