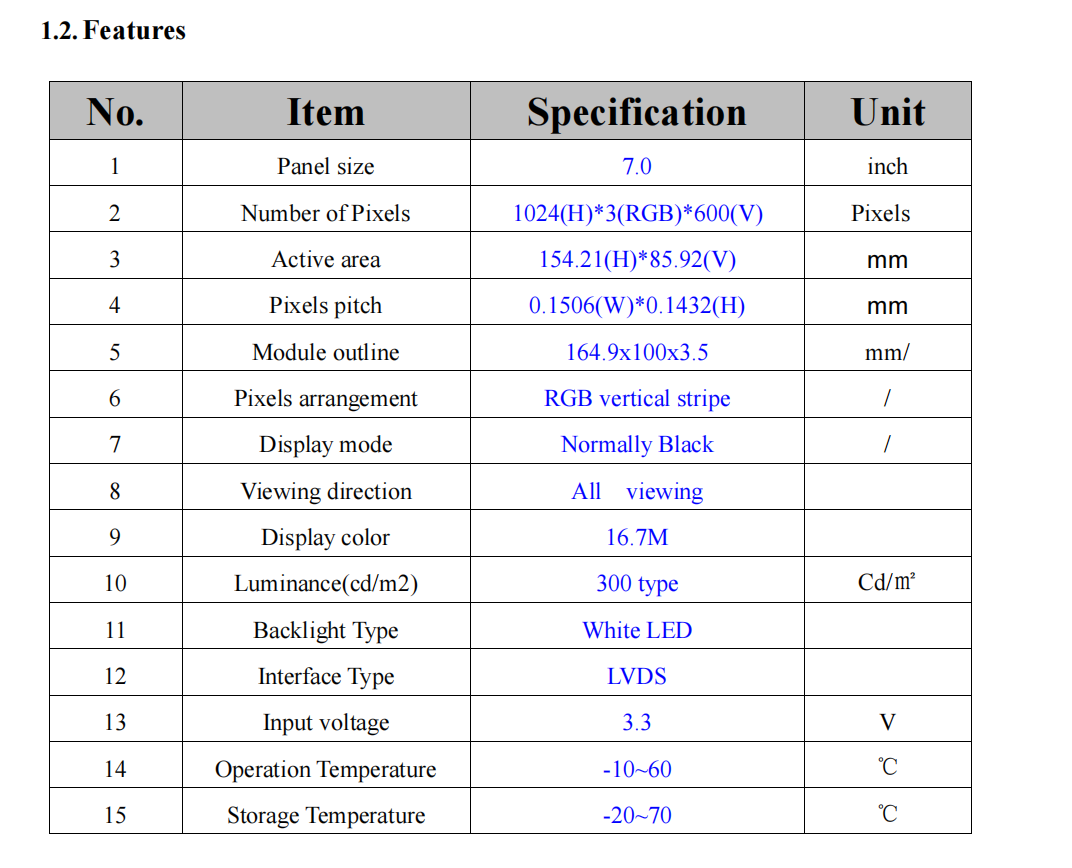

Panel Size:7”inch Landscape
Resolution:1024×600
Active Area:154.21(H)*85.92(V)
Pixel Pitch:0.1506(H)×0.1432(V)mm

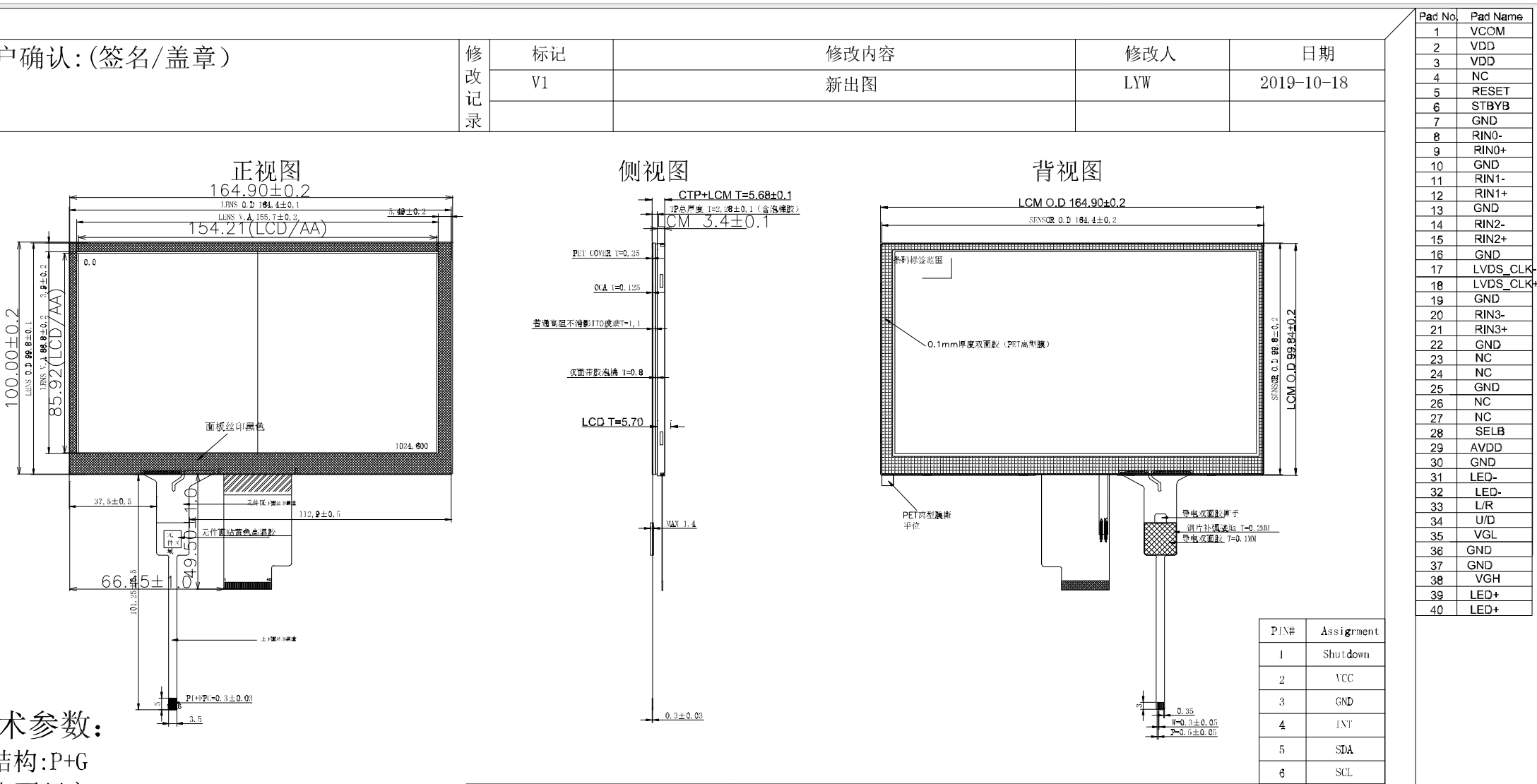

OutlineDimension:164.9x100x3.5mm
Number of Colors:16.7M
Display Mode:Normally black
Viewing Direction:All
Display Format:RGB vertical stripe
Luminance(cd/m^2):300 (TYP.)nits
Input voltage:3.3V
Interface:LVDS
Backlight:White LED
OperationTemperature:-10~60℃
StorageTemperature:-20~70℃
