Landscape 10.1" 10.1 inch high resolution 1280*800 LCD tft display panel IPS full color LVDS interface
- Overview
- Recommended Products
Size:10.1inch Landscape LCD display

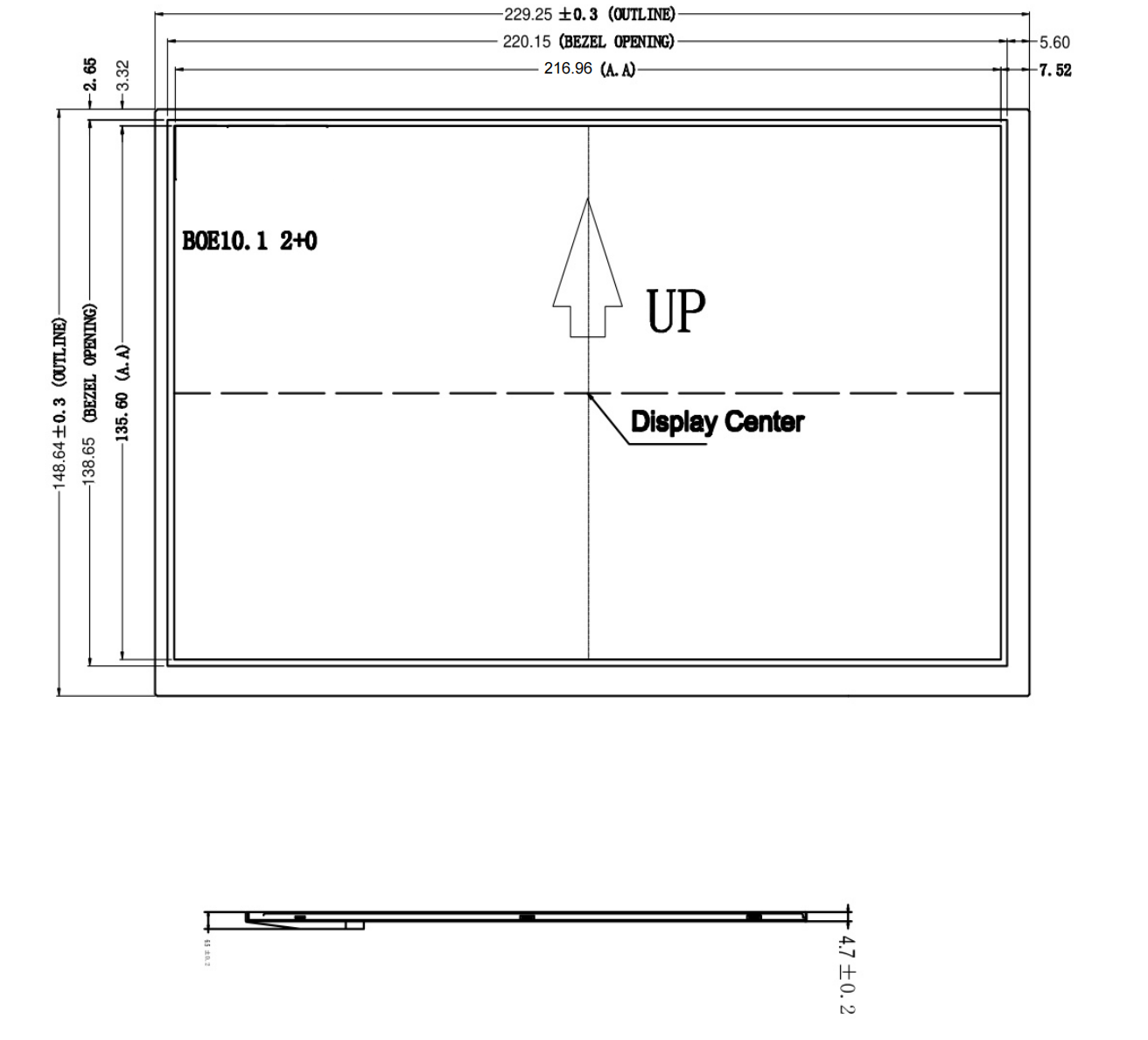

Outline dimension:229.25(H)*148.64(V)*4.7(D)mm
ActiveArea: 216.96(H)*135.6(V) mm
Resolution:1280(H)×800(V) pixels
PixelPitch:0.0565(H)×RGB×0.1695(V) mm
PixelArrangement Pixels:RGBstripearrangement
DisplayMode: NormallyBlack
ContrastRatio: 1000:1(typ.)
ViewingAngle(CR>10):80/80/80/80(typ.)
ResponseTime 35(typ.)/40(max.) ms
ColorGamut: 50%NTSC
PowerConsumption Panel:0.6(Typ.)0.94（Max.）watt
