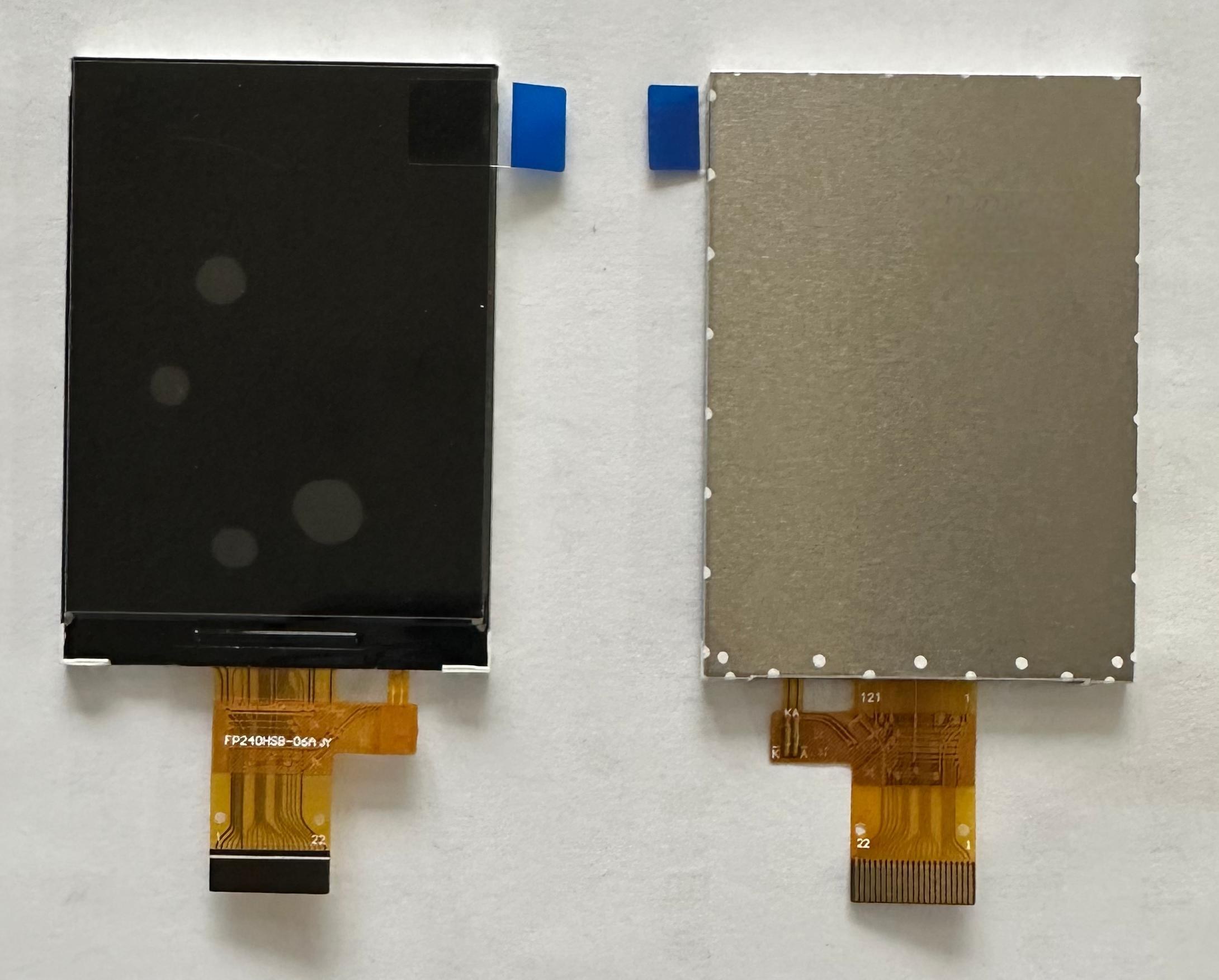

2.4" 2.4 inch resolution 240x320 LCD tft display panel full color SPI MCU interface IC ST7789
- Overview
- Recommended Products

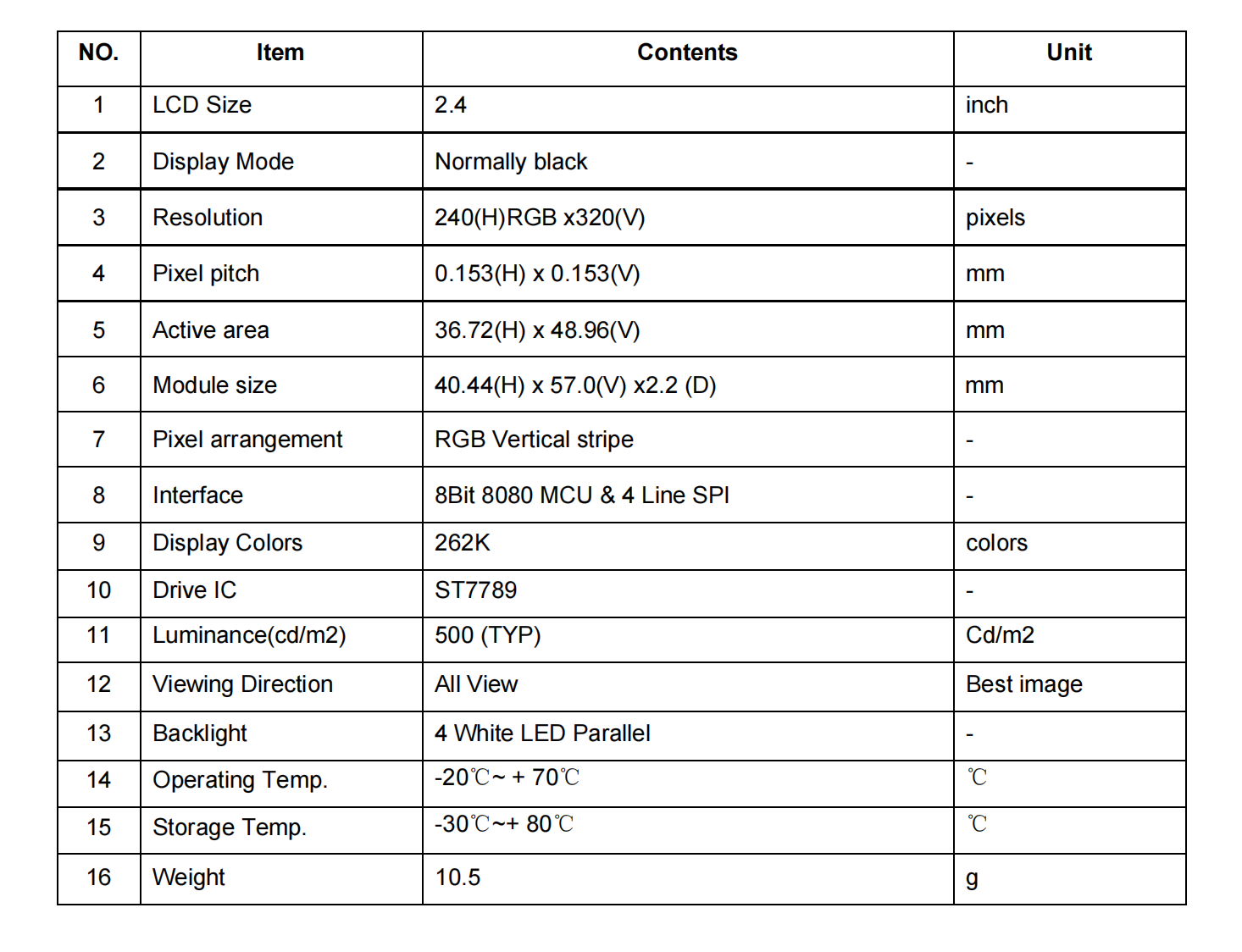

1 LCD Size 2.4 inch
2 Display Mode Normally black
3 Resolution 240(H)RGB x320(V) pixels
4 Pixel pitch 0.153(H) x 0.153(V) mm
5 Active area 36.72(H) x 48.96(V) mm

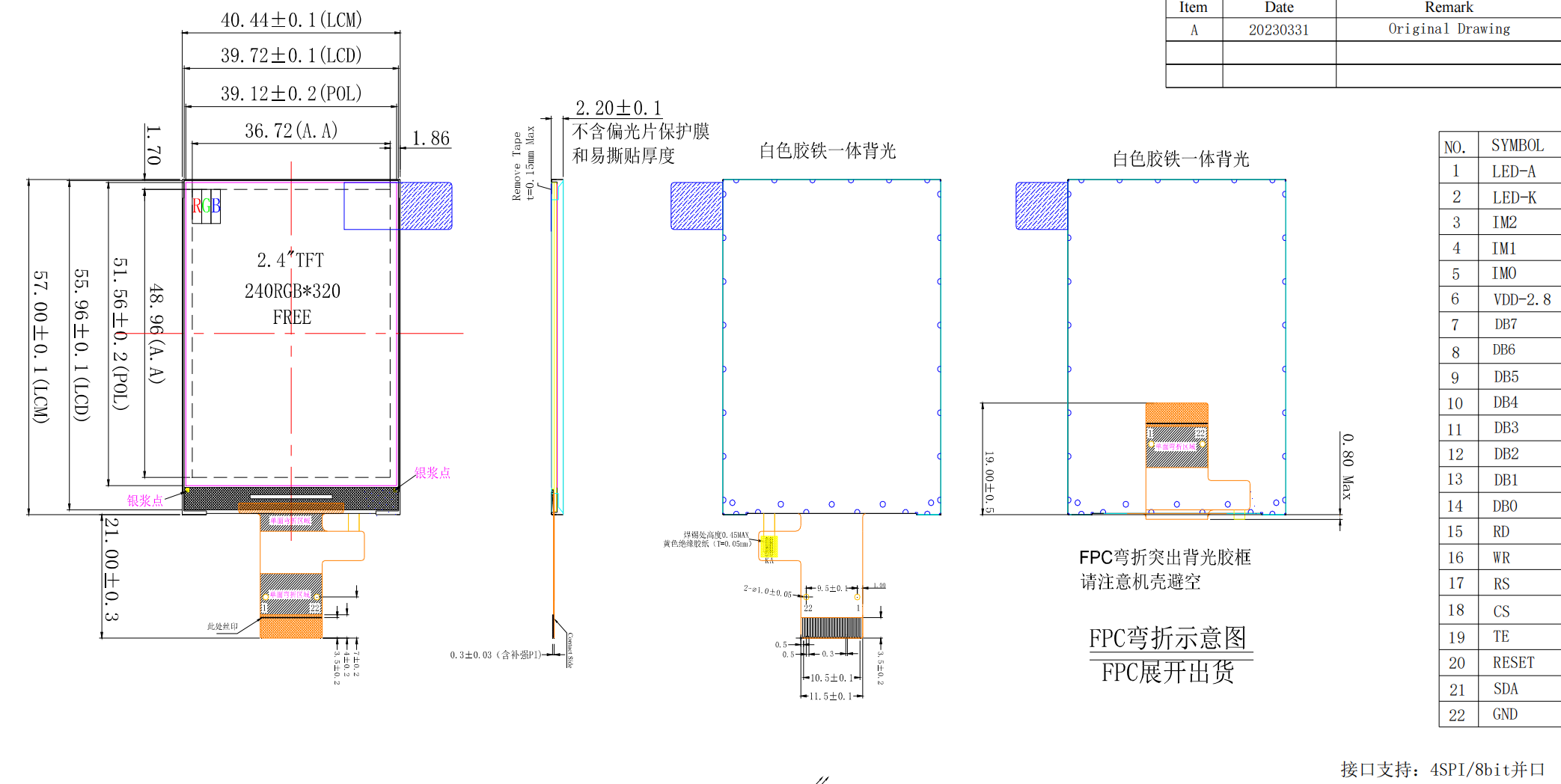

6 Module size 40.44(H) x 57.0(V) x2.2 (D) mm
7 Pixel arrangement RGB Vertical stripe
8 Interface 8Bit 8080 MCU & 4 Line SPI
9 Display Colors 262K colors
10 Drive IC ST7789
11 Luminance(cd/m2) 500 (TYP) Cd/m2
12 Viewing Direction All View Best image
13 Backlight 4 White LED Parallel -
14 Operating Temp.-20℃~ + 70℃
15 Storage Temp.-30℃~+ 80℃
16 Weight 10.5 g
