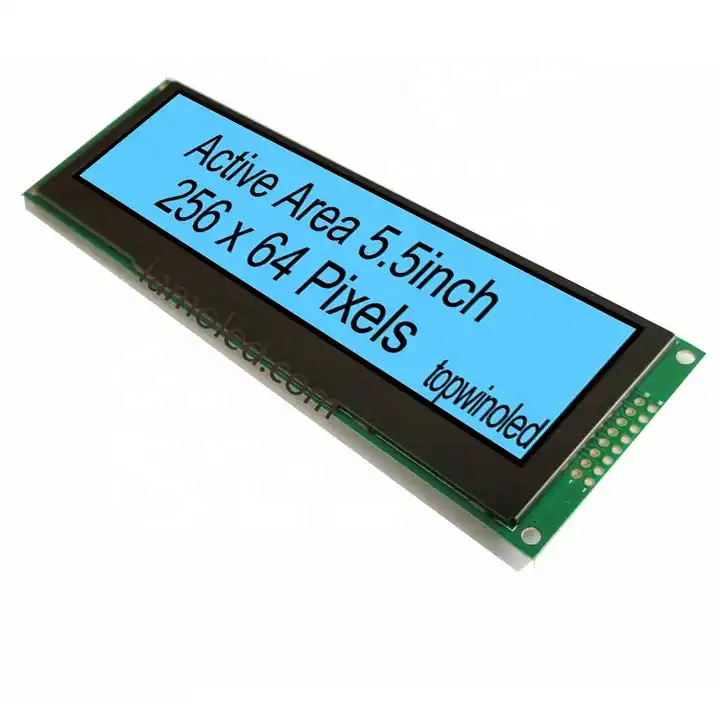

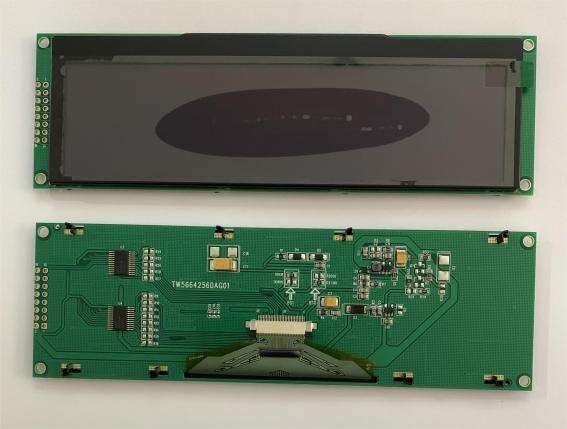

Best selling 5.5 inch 5.5'' 256x64 pixel green 16 gray oled module for electronic instrument SSD1322 TW56640560A01 with PCB

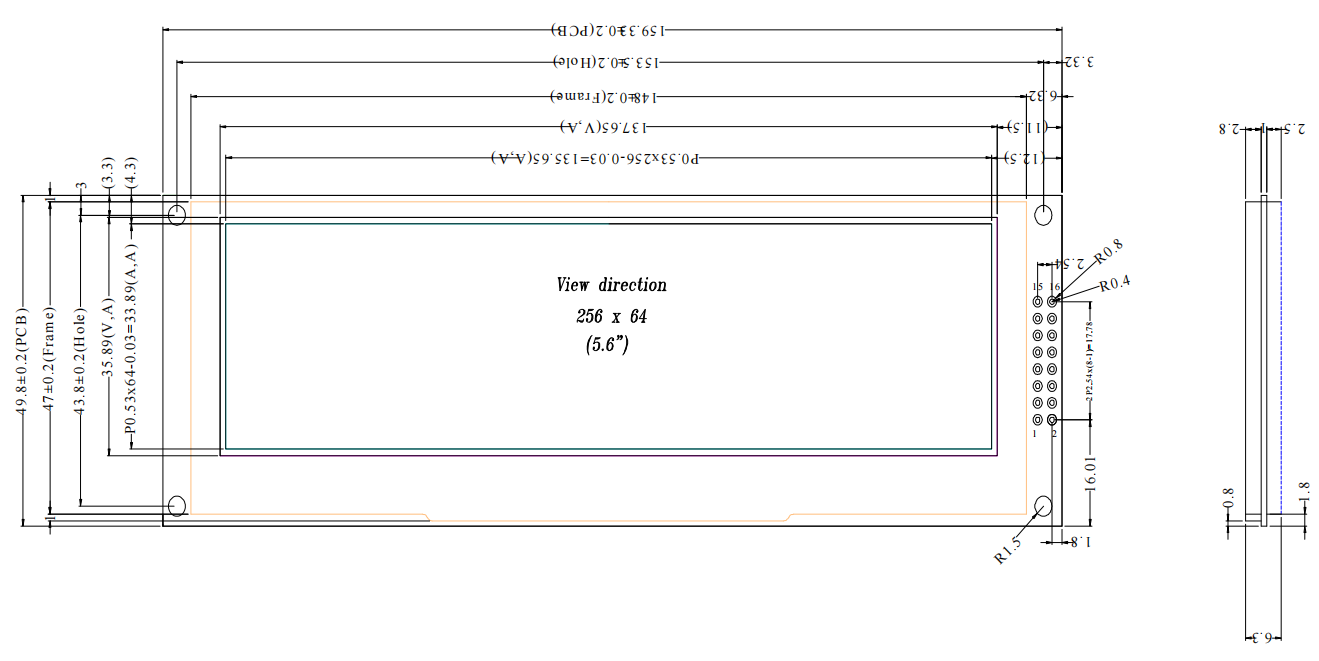

Outline Drawing:159.33(W)x49.8(H)x6.3Max(T)mm
View Area:137.65(W)x35.89(H)mm
Active Area:135.65(W)x33.89(H)mm
Lattice:256dots x 64dots
Pixel Pitch:0.53(W)x0.53(H)mm
Pixel Size:0.50(W)x0.50(H)mm
Driver IC:SSD1322
Color:Yellow,Blue, Green,White
Interface:8-Bit 68XX/80XX Parallel、 SPI
- Overview
- Contact us for detailed datasheet and prices
- Recommended Products
Get sample & datasheet
