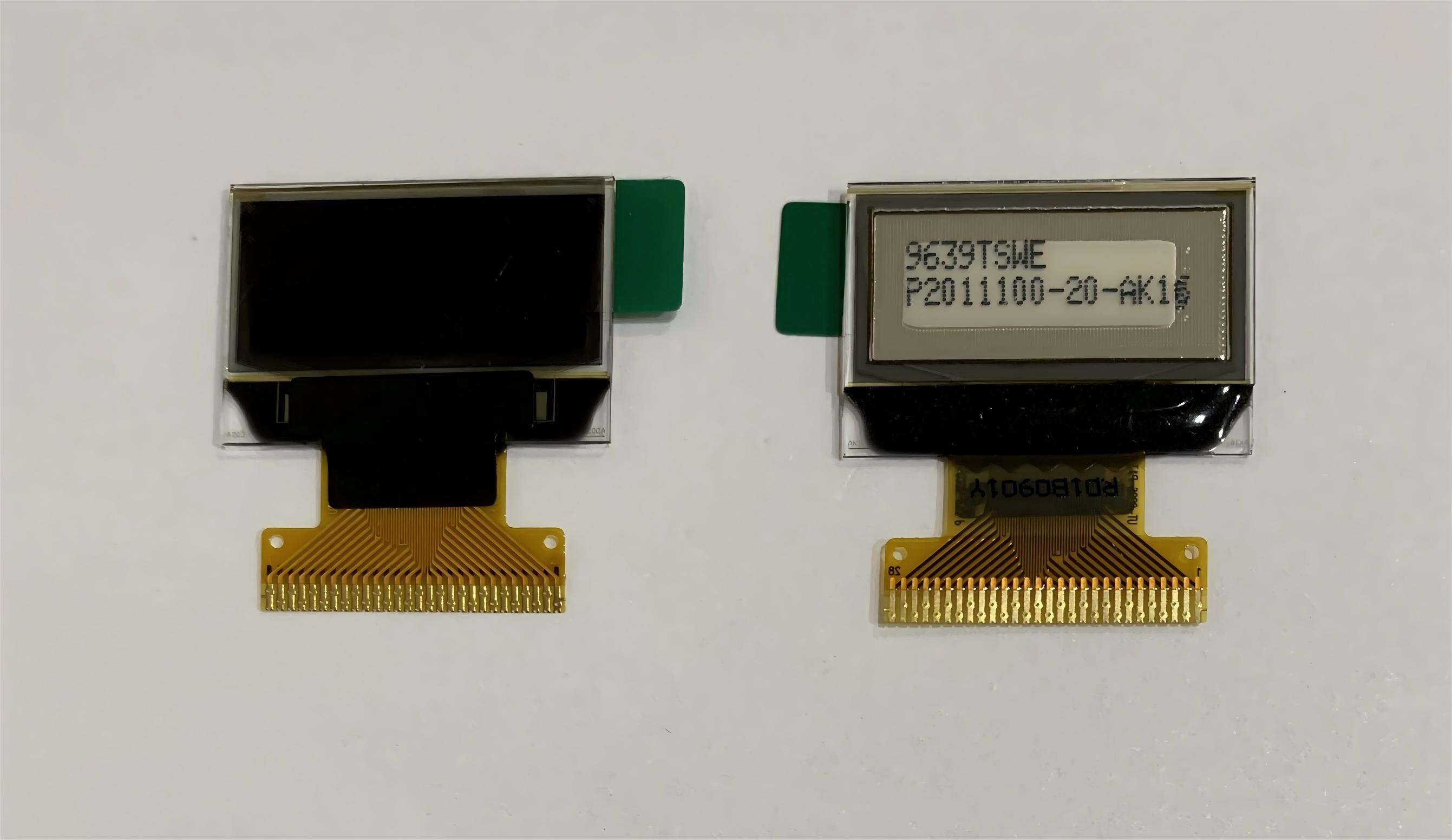

0.83'' 0.83inch white color 28pin Soldering type 96x39 pixels oled display panel UG-9639TSWEG03 small oled
- Overview
- Recommended Products
Driver IC:SSD1306
Interface:8-bit 68xx/80xx Parallel,3/4-wire SPI, I²C
Color options:Blue/White
Mechanical Specifications
1) Outline Drawing : According to the annexed outline drawing
2) Number of Pixels : 96 × 39
3) Module Size : 23.80 × 26.00 × 1.30 (mm)
4) Panel Size : 23.80 × 16.20 × 1.30 (mm) including “Anti-Glare Polarizer”
5) Active Area : 19.372 × 7.858 (mm)
6) Pixel Pitch : 0.202 × 0.202 (mm)
7) Pixel Size : 0.182 × 0.182 (mm)
8) Weight : 0.99 (g) ± 10%
