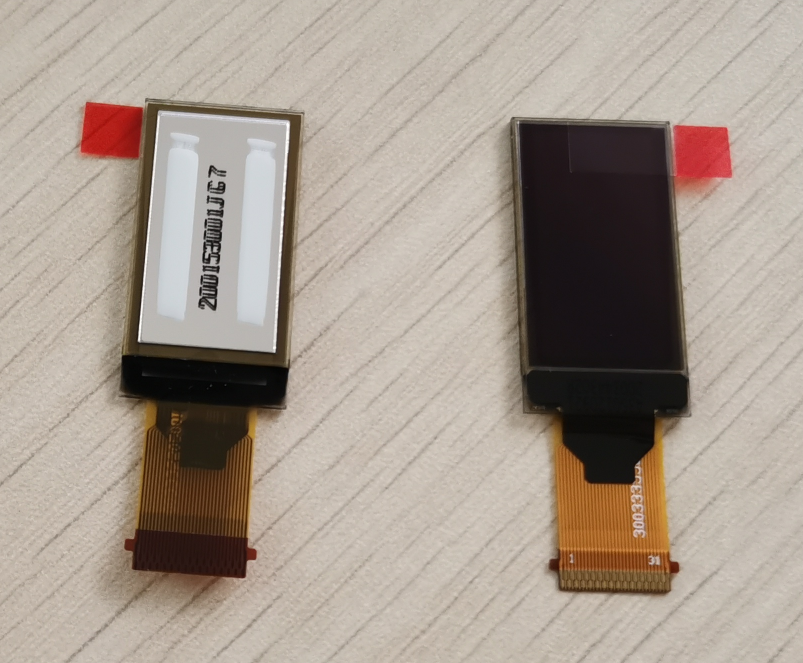

0.96'' 0.96inch oled display 128x64 resolution full color connector type QG-6428HDDAG01 Parallel, 4-wire SPI Interface
- Overview
- Recommended Products
- Color : Full
- Panel resolution : 64x3x128
- Driver IC : SSD1357Z
- Excellent Quick response time : 10µs
- Extremely thin thickness for best mechanism design : 1.02 mm
- High contrast : 2000:1
- Wide viewing angle : 160°
- Interface: 8080-series parallel Interface and Serial Peripheral Interface
- Wide range of operating temperature : -40 to 70°C

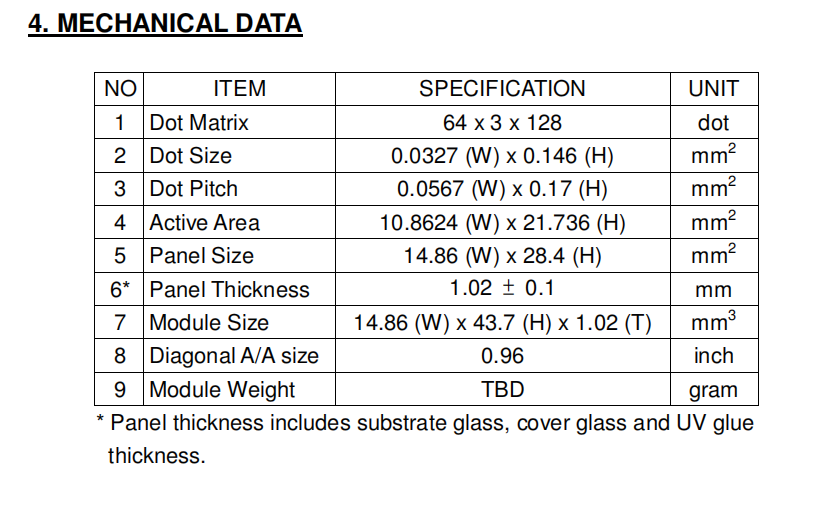

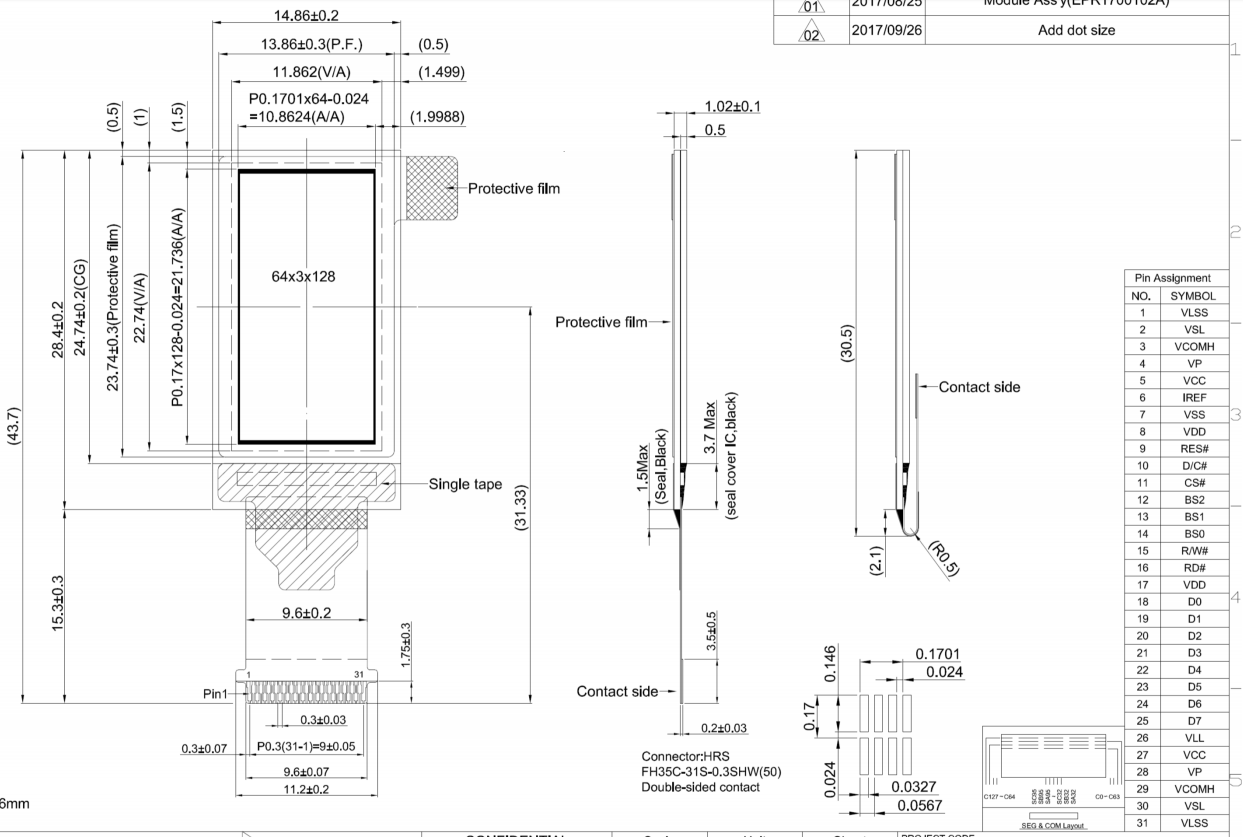

1 Dot Matrix 64 x 3 x 128 dot
2 Dot Size 0.0327 (W) x 0.146 (H) mm2
3 Dot Pitch 0.0567 (W) x 0.17 (H) mm2
4 Active Area 10.8624 (W) x 21.736 (H) mm2
5 Panel Size 14.86 (W) x 28.4 (H) mm2
6* Panel Thickness1.02 ± 0.1mm
7 Module Size 14.86 (W) x 43.7 (H) x 1.02 (T) mm
8 Diagonal A/A size:0.96 inch
9 Module Weight TBD gram
