Monochrome1.5'' 1.5 inch 128x128 oled module 7pin 4pin oled display module 1327/1107 SPI I2C Interface
- Overview
- Recommended Products
1.1 Display Specifications
Display Mode
Passive Matrix—OLED：White
Interface:SPI、I2C
Driver IC:1327/1107

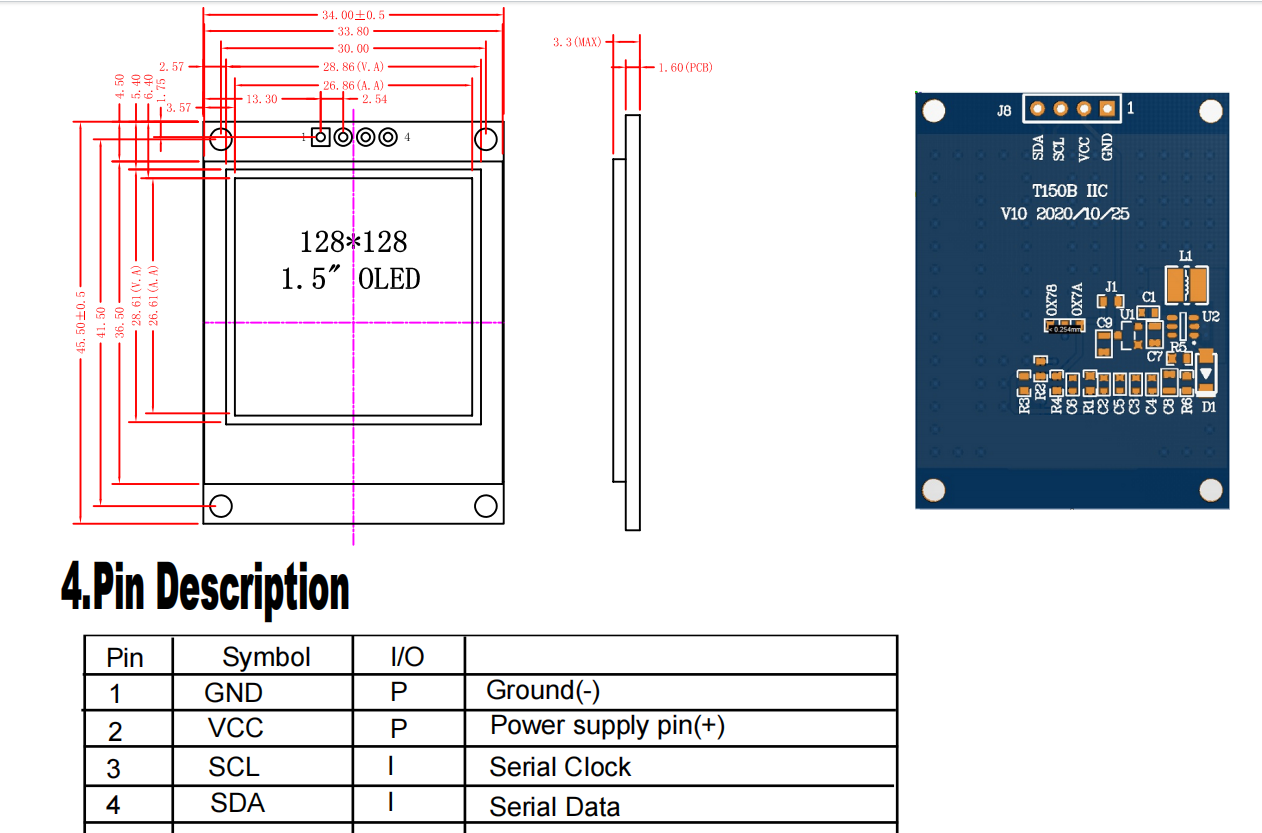

Mechanical Specifications
Outline Drawing:34.0*45.5*3.3mm
Active Area:26.86(H)x26.86(V)mm
Resolution:128x128
Pixel Size:0.19x0.19mm
