1.54" (1.54 inch) E Ink Spectra 6 Color E Paper Display Module 240×240 SPI Reflective Electronic Paper Screen
- Overview
- Recommended Products

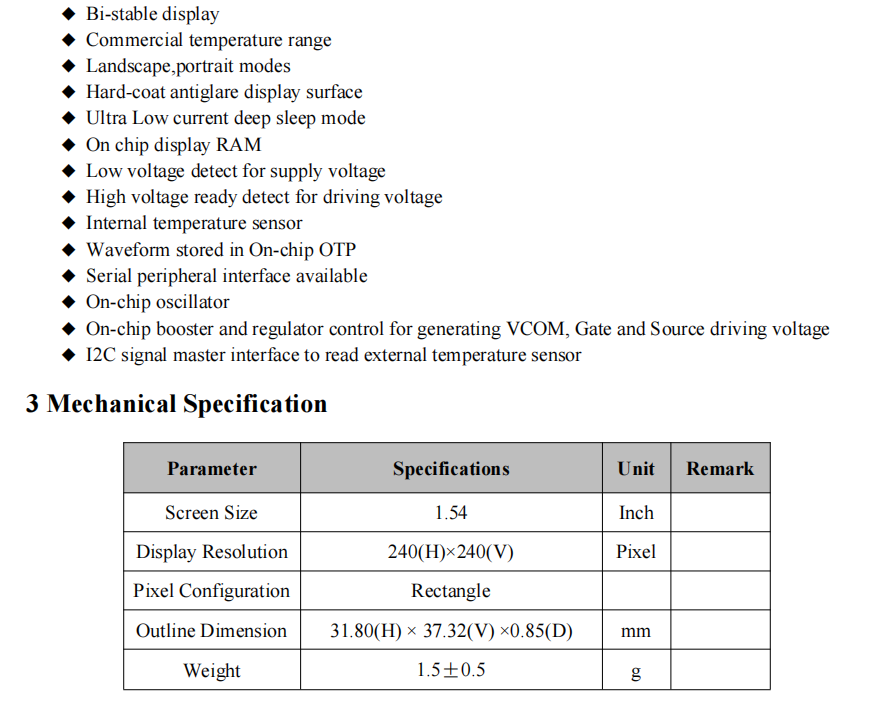

Parameter Specification
Model ：TWE0154HNP47-CNG-A0
Display Size： 1.54 Inch
Resolution： 240 × 240 Pixels
Color Capability： 3-bit Full Color (Black, White, Red, Yellow, Blue, Green)
Pixel Configuration： Rectangle

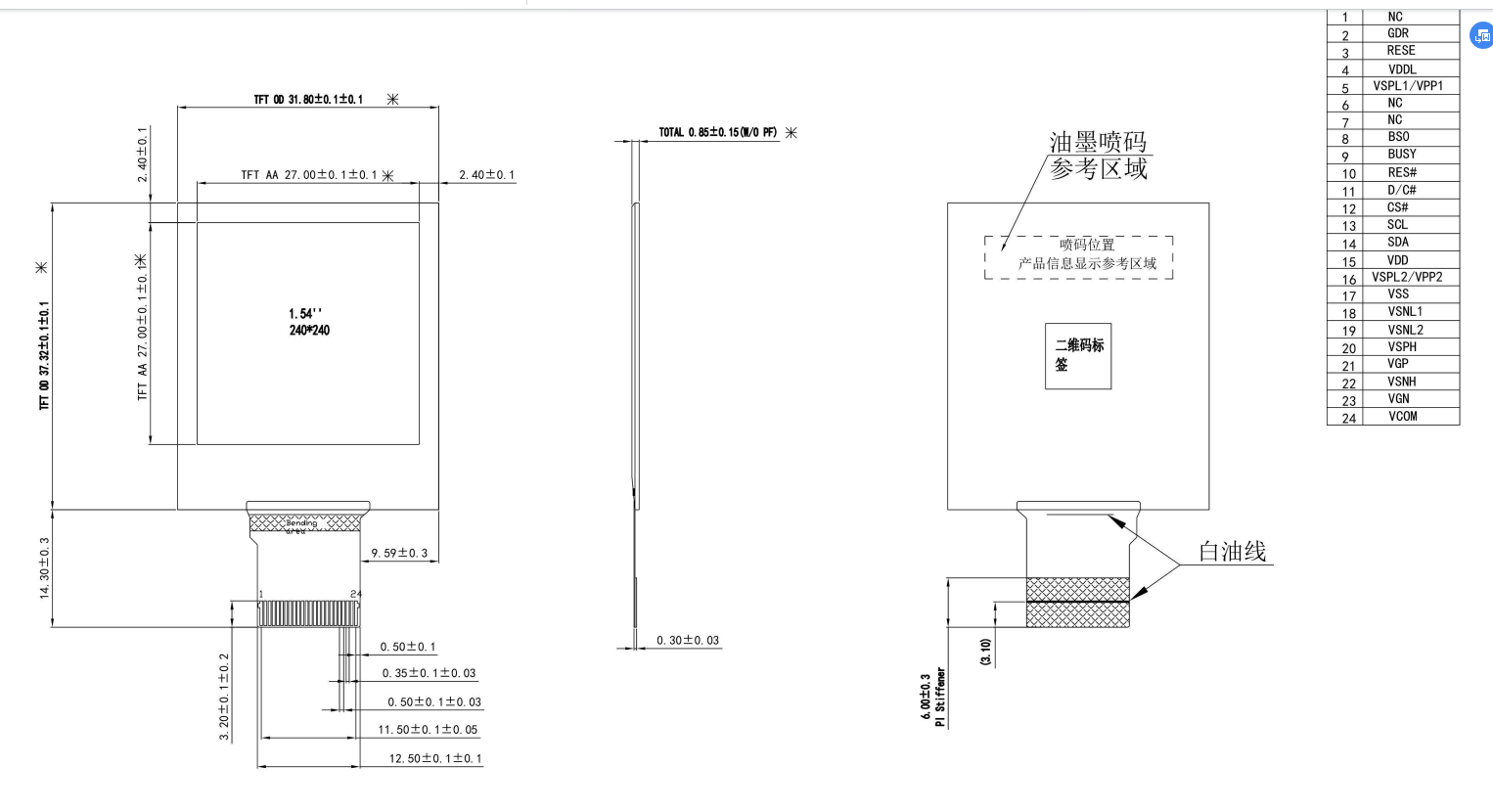

Outline Dimension： 31.80 × 37.32 × 0.85 mm
Weight ：1.5 ± 0.5 g
Display Surface： Hard-Coat Anti-Glare
Display Mode： Pure Reflective E Paper Display
Viewing Angle： Ultra Wide Viewing Angle
Interface： 3-wire / 4-wire SPI
Operating Voltage： 2.4–3.6 V (Typical 3.0 V)
Power Consumption： Ultra Low Power
Operating Temperature：0°C to +50°C
Storage Temperature： -25°C to +50°C
Compliance RoHS
Typical Applications： Electronic Shelf Labels (ESL), Smart Tags, Wearable Devices, Portable Instruments, IoT Devices
