4.39inch 4.39'' amoled AM OLED Display Panel ONCELL Touch Panel 568x1210 SD5207 MIPI Interface Full Color Am Oled Display
- Overview
- Recommended Products

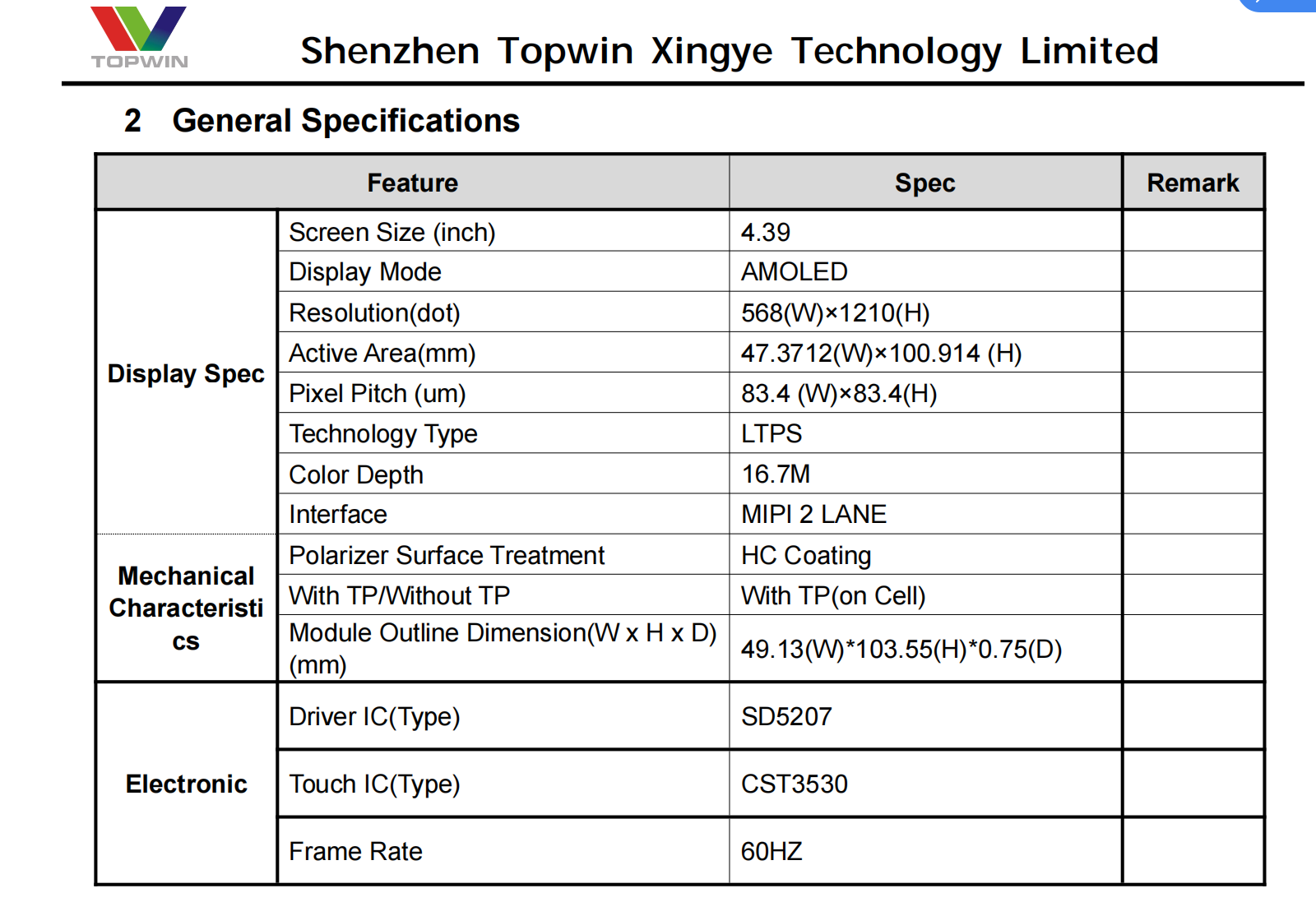

Screen Size (inch) 4.39
Display Mode AMOLED
Resolution(dot) 568(W)×1210(H)
Active Area(mm) 47.3712(W)×100.914 (H)
Pixel Pitch (um) 83.4 (W)×83.4(H)
Technology Type LTPS
Color Depth 16.7M
Interface MIPI 2 LANE
Polarizer Surface Treatment HC Coating
With TP/Without TP With TP(on Cell)

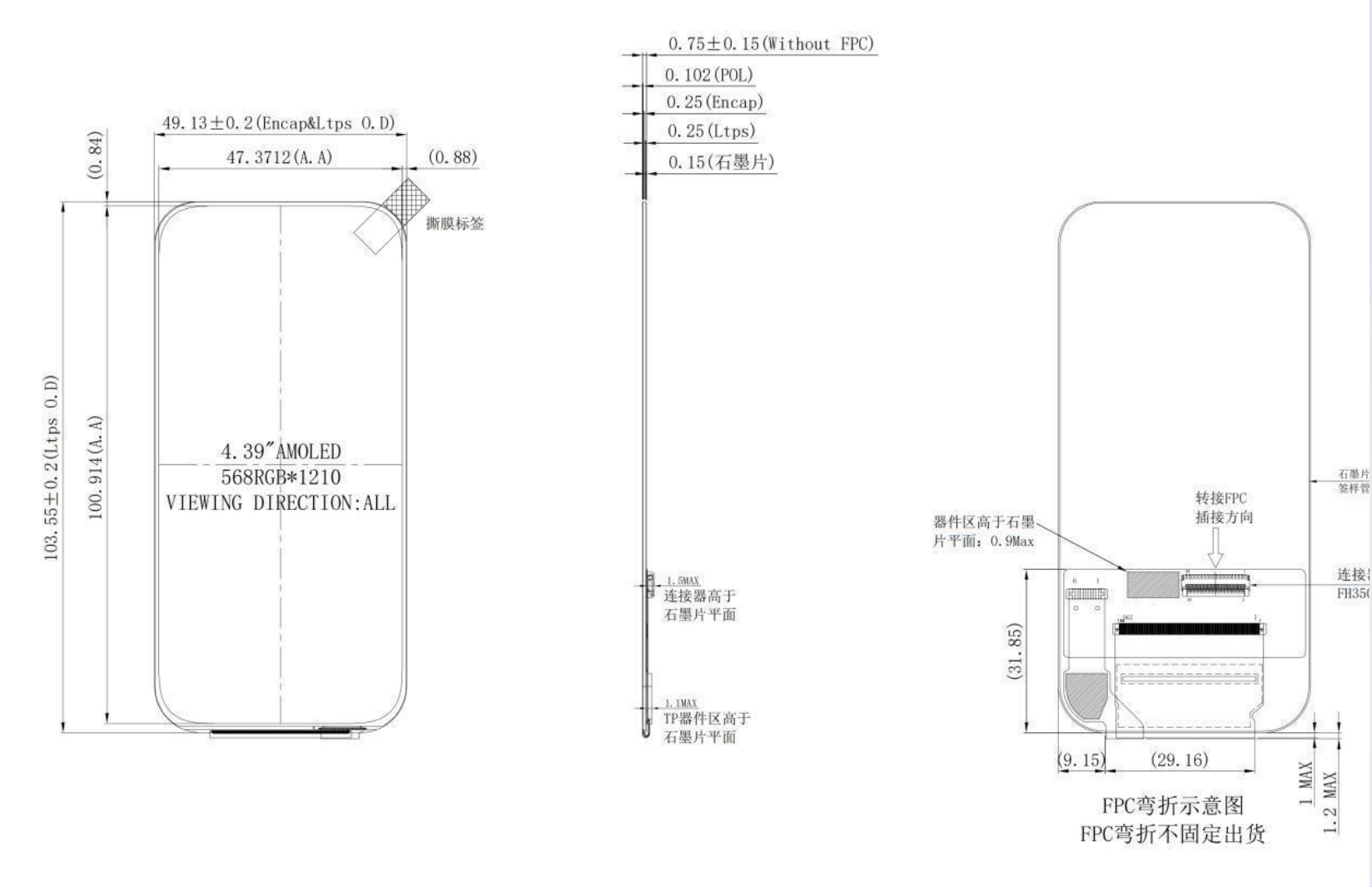

Module Outline Dimension(W x H x D)
(mm) 49.13(W)*103.55(H)*0.75(D)
Driver IC(Type) SD5207
Touch IC(Type) CST3530
Frame Rate 60HZ
