7inch AM OLED display touch panel ONCELL 1080x1920 MIPI DSI interface am oled panel oled screen driver GD7658A BOE glass
- Overview
- Recommended Products

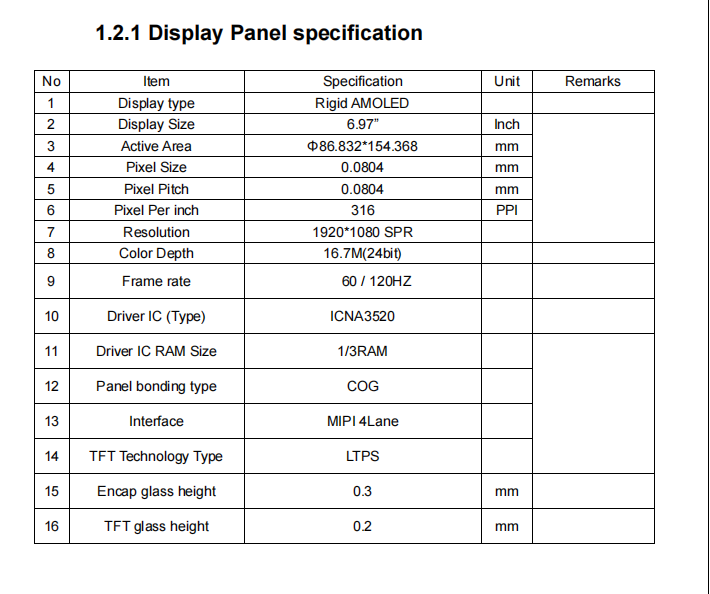

Display type：Rigid AMOLED
Display Size：6.97”Inch

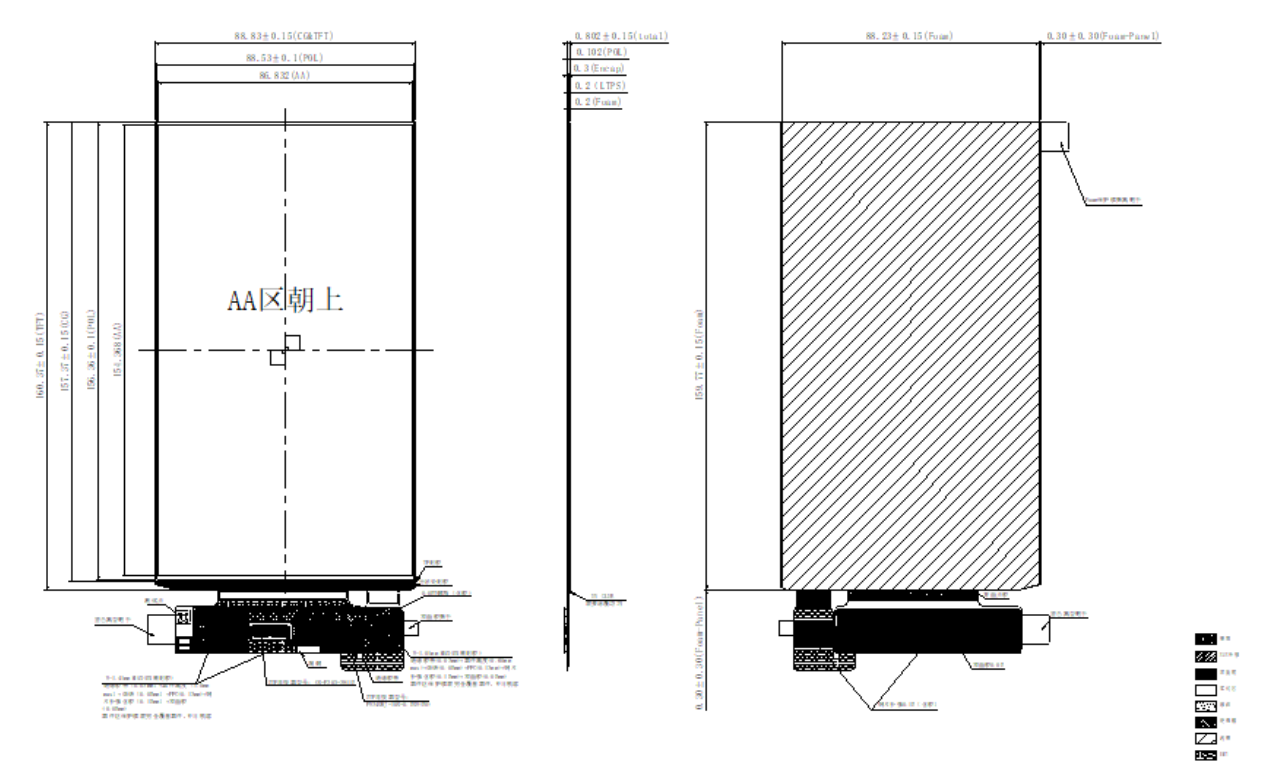

Active Area：Φ86.832*154.368mm

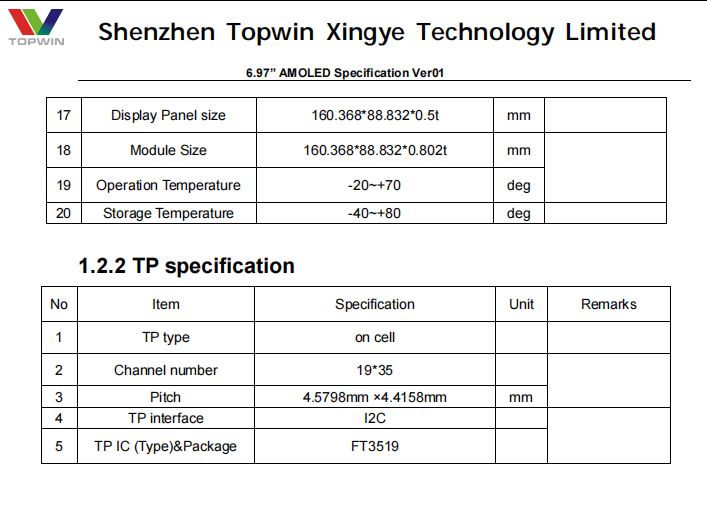

Display Panel size：160.368*88.832*0.5t mm
Module Size:160.368*88.832*0.802t mm
Pixel Size：0.0804mm
Pixel Pitch：0.0804mm
Pixel Per inch：316PPI
Resolution：1920*1080 SPR
Color Depth：16.7M(24bit)
Frame rate：60 / 120HZ
Driver IC (Type)：ICNA3520
TP IC (Type)&Package:FT3519
Driver IC RAM Size：1/3RAM
Panel bonding type：COG
Interface：MIPI 4Lane
TFT Technology Type：LTPS
Encap glass height：0.3mm
TFT glass height：0.2mm
Operation Temperature:-20~+70deg
Storage Temperature:-40~+80deg
