3.6" (3.6 Inch) E Ink Spectra 6 Color E Paper Display Module 400×600 SPI Reflective Electronic Paper Screen
The 3.6inch E Ink Spectra™ 6 Display Module delivers vibrant six-color images with a 400 × 600 resolution and 200 PPI pixel density, providing crisp text and graphics for compact embedded applications. Featuring ultra-low power consumption, bi-stable image retention, and a pure reflective display, it offers outstanding readability in ambient light without requiring a backlight. Equipped with an all-in-one display controller integrating the source driver, gate driver, TCON, PMIC, and OTP memory, along with support for 3-wire and 4-wire SPI interfaces, this module is ideal for smart labels, electronic shelf labels (ESL), industrial devices, digital signage, and IoT applications.
- Overview
- Recommended Products

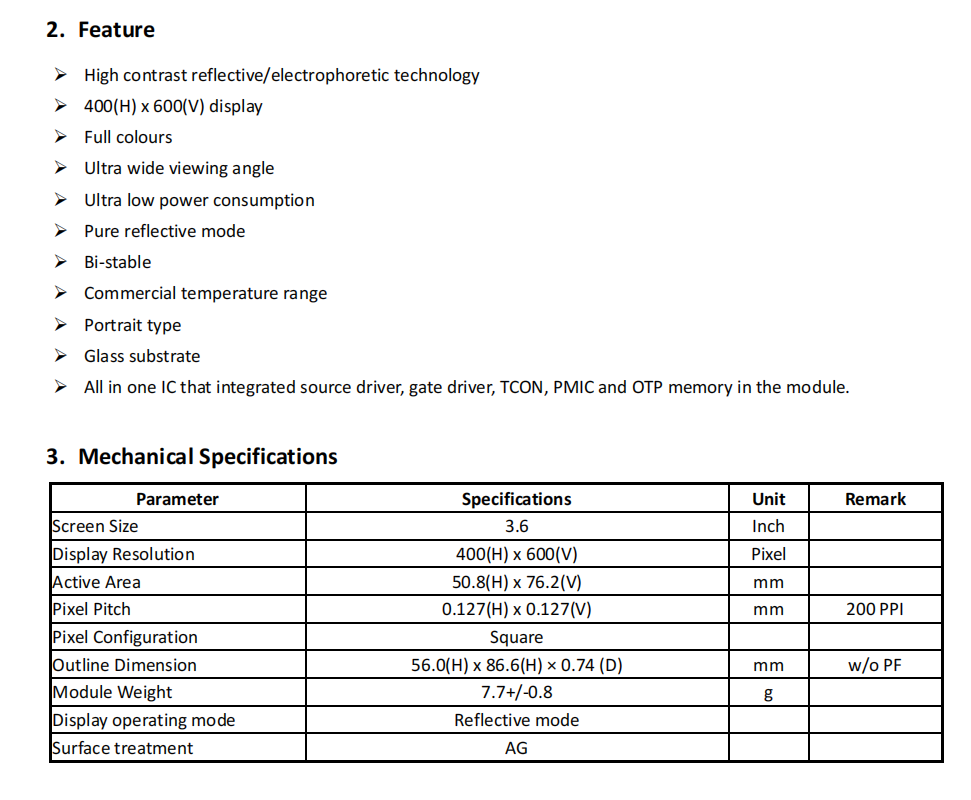

Parameter Specification
Model: TWE0360MF01
Display Technology :E Ink Spectra™ 6
Display Size :3.6 inch
Resolution: 400 × 600 Pixels
Pixel Density :200 PPI
Active Area: 50.8 × 76.2 mm

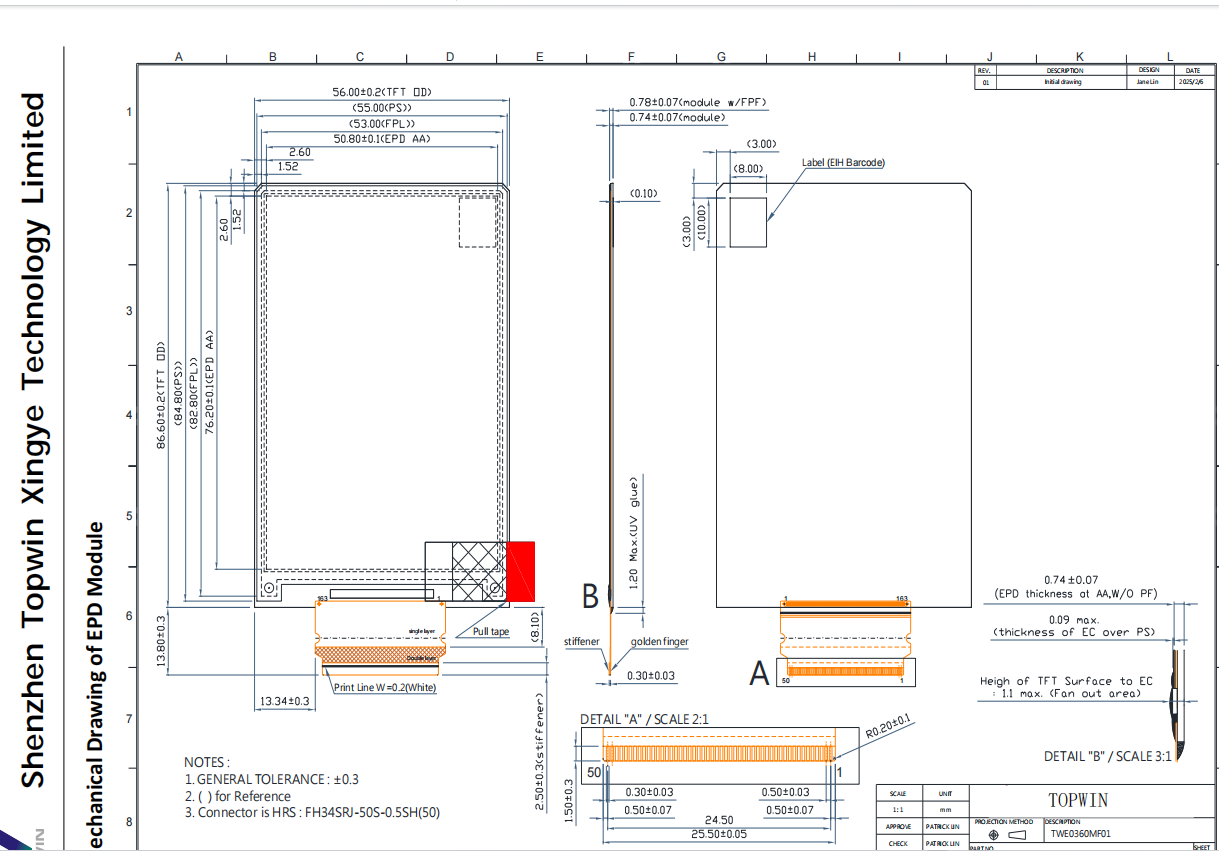

Outline Dimension :56.0 × 86.6 × 0.74 mm
Pixel Pitch: 0.127 × 0.127 mm
Display Colors: Black, White, Red, Yellow, Green, Blue
Display Mode: Reflective Electrophoretic Display (EPD)
Viewing Angle: Ultra Wide Viewing Angle
Interface: 3-wire / 4-wire SPI
Operating Voltage: 2.4–3.6 V (Typical 3.0 V)
Power Consumption: Ultra Low Power
Operating Temperature: 0°C to +40°C*
Storage Temperature: -25°C to +60°C
Typical Refresh Time :15 s (25°C)
Module Weight :7.7 ± 0.8 g
Typical Applications: Electronic Shelf Labels (ESL), Smart Labels, Digital Signage, Industrial Devices, IoT Applications
