1.69" 1.69inch square LCD tft display panel full color 240x280 resolution Driver IC ST7789V3
- Overview
- Recommended Products
Size:1.69inch LCD

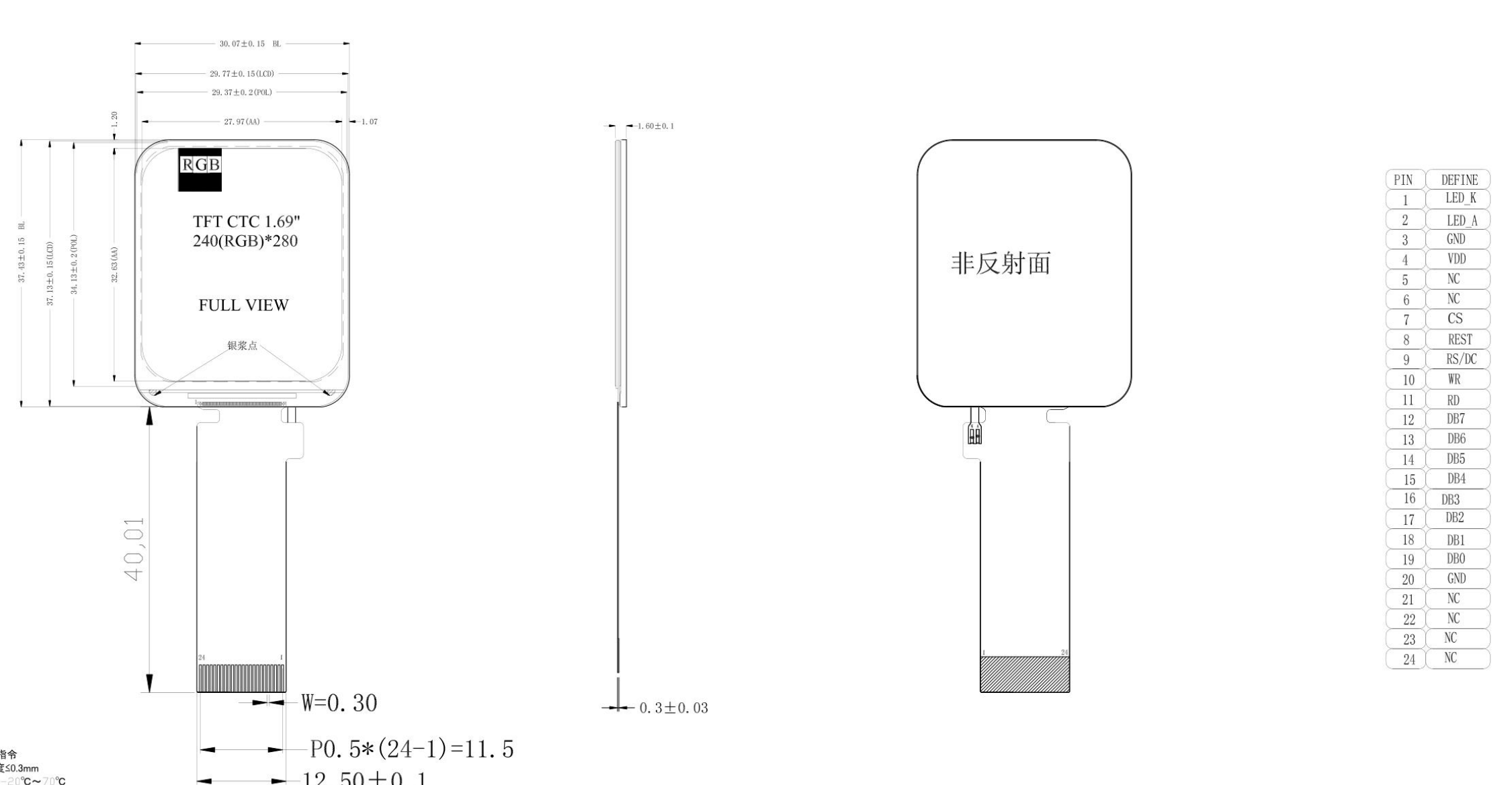

LCM outline size:30.07 (H) x 37.43 (V)mm
Active area:27.97 (H) x 32.63 (V)mm
Number of pixels:240(H)X280(V)
Pixel arrangement:RGB stripe
Pixel Pitch:0.11655x 0.11655
Display color:262kcolor
Viewing direction:ALL
Controller / Driver:ST7789V3
Data interface:MCU 8BIT
Backlight:3 White LEDs In Parallels
