1 LCD Size 2.25 inch
2 Display Mode Normally White -
3 Resolution 76(H)RGB x284(V) pixels
4 Pixel pitch 0.1947(H) x 0.1947(V) mm
5 Active area 14.7972(H) x 55.2948(V) mm

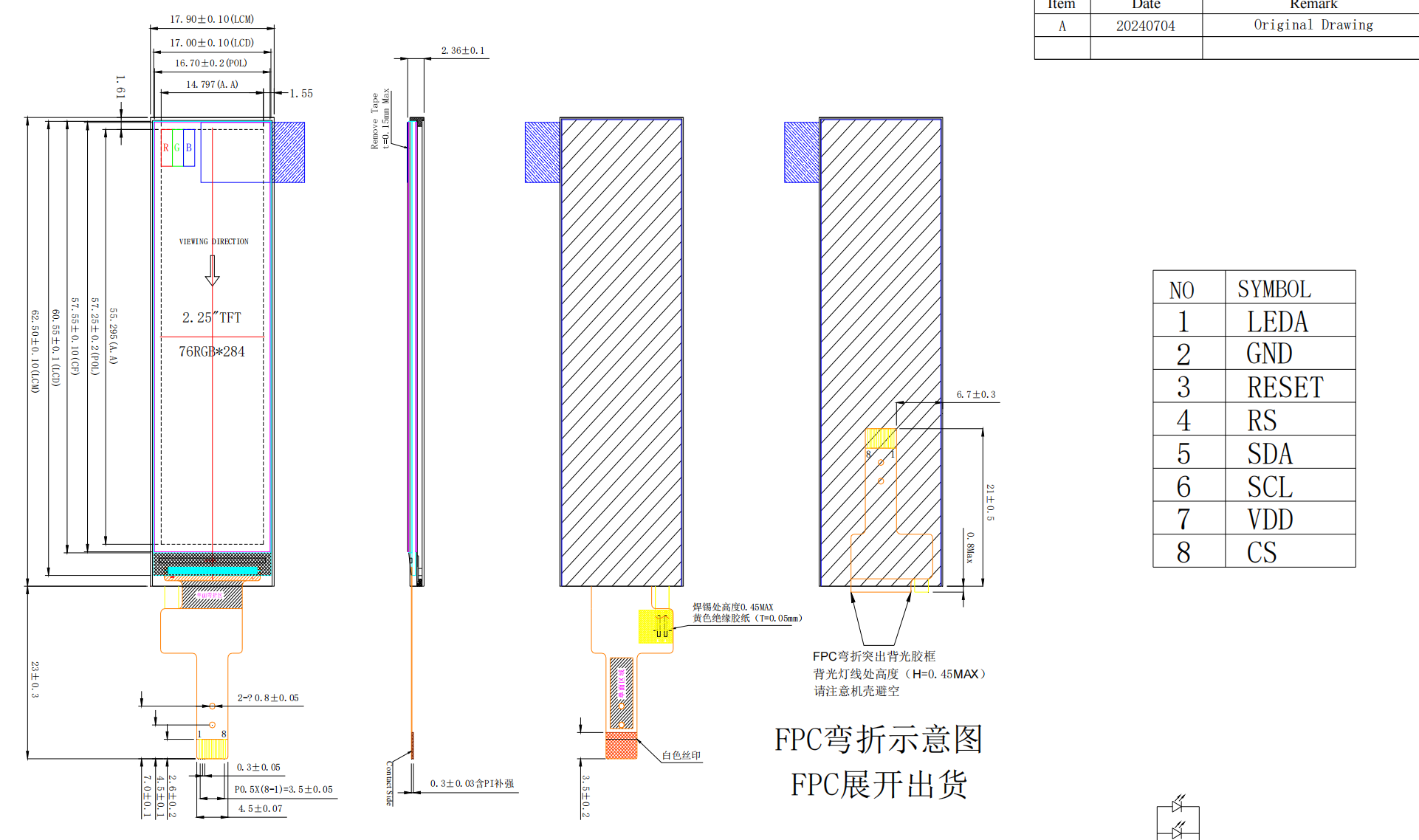

6 Module size 17.9(H) x 62.5(V) x2.36 (D) mm
7 Pixel arrangement RGB Vertical stripe -
8 Interface 4 Line SPI -
9 Display Colors 262K colors
10 Drive IC ST7789P3 -
11 Luminance(cd/m2) 600 (TYP) Cd/m2
12 Viewing Direction 12 O’clock Best image
13 Backlight 4 White LED Parallel -
14 Operating Temp.-20℃~ + 70℃
15 Storage Temp.-30℃~+ 80℃
16 Weight :5 g
