3.71" 3.7 inch Bar LCD Screen MIPI 3.7 inch Tft Lcd Display 240*960 Stretched Bar 3.71inch Lcd Module
- Overview
- Recommended Products
Size:3.71inch bar LCD display panel
Drive element:a-Si TFT

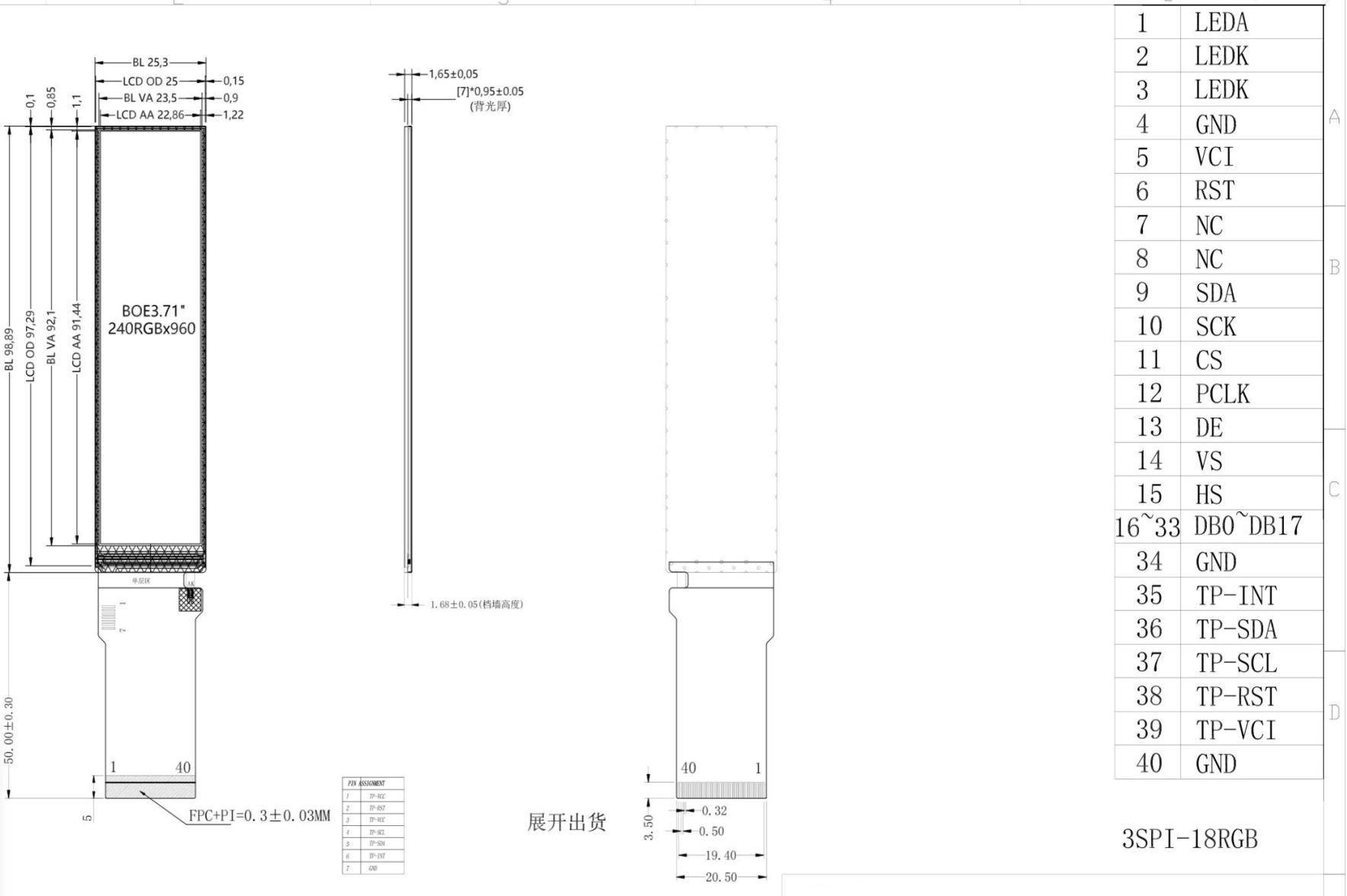

LCM outline size:25.3 (H) x98.89 (V)mm
Active area:22.86 (H) x 91.44(V)mm
Number of pixels:240(H)X960(V)pixels
Pixel arrangement:RGB stripe
Pixel Pitch:0.09x0.09mm
Display color:16.7m color
Viewing direction:ALL
Controller / Driver:ST7701S
Data interface:SPI3W+RGB18bit
Backlight:6 White LEDs In Parallels
