8.14inch E Ink Spectra 6 Color E Paper Display Module | 1024×576 SPI Reflective Ultra Low Power Electronic Paper Screen
The 8.14inch E Ink Spectra 6 Display Module delivers vivid full-color images with a resolution of 1024 × 576 pixels, supporting black, white, red, yellow, green, and blue for eye-catching visual communication. Featuring ultra-low power consumption, bi-stable technology, a wide viewing angle, and a reflective, sunlight-readable display, it is an ideal solution for digital signage, smart retail, electronic shelf labels (ESL), information displays, and industrial applications. The module supports SPI interface integration and provides reliable performance for long-life embedded systems.
- Overview
- Recommended Products

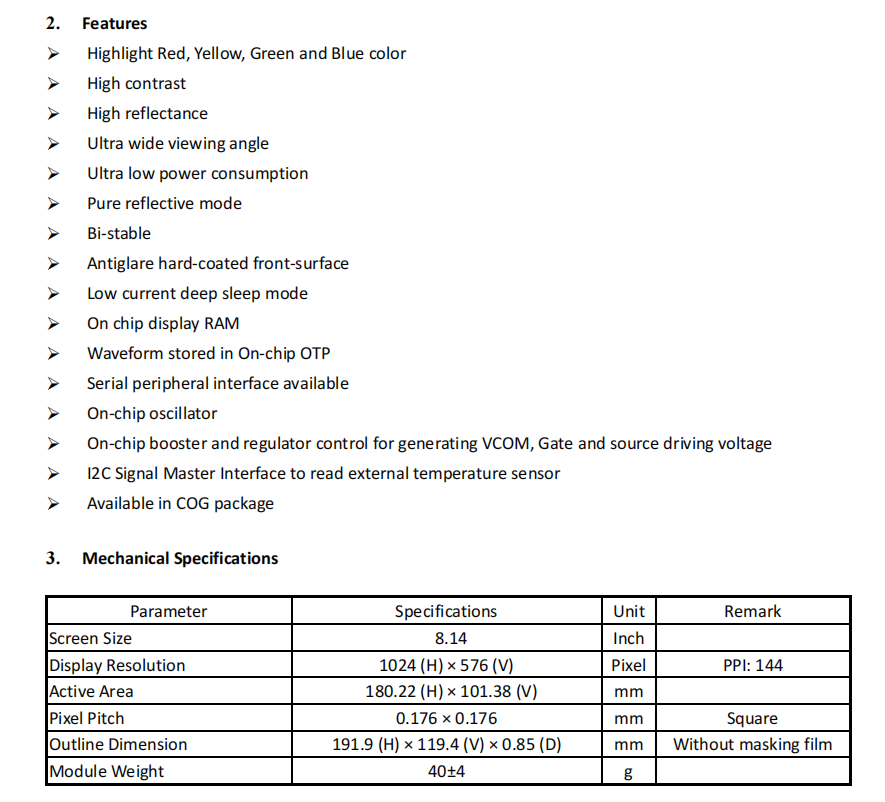

Product Model:TWE0810EF02
Display Technology: E Ink Spectra 6
Display Size: 8.14 inch
Resolution: 1024 × 576 Pixels
Pixel Density :144 PPI
Display Colors :Black, White, Red, Yellow, Green, Blue
Active Area: 180.22 × 101.38 mm

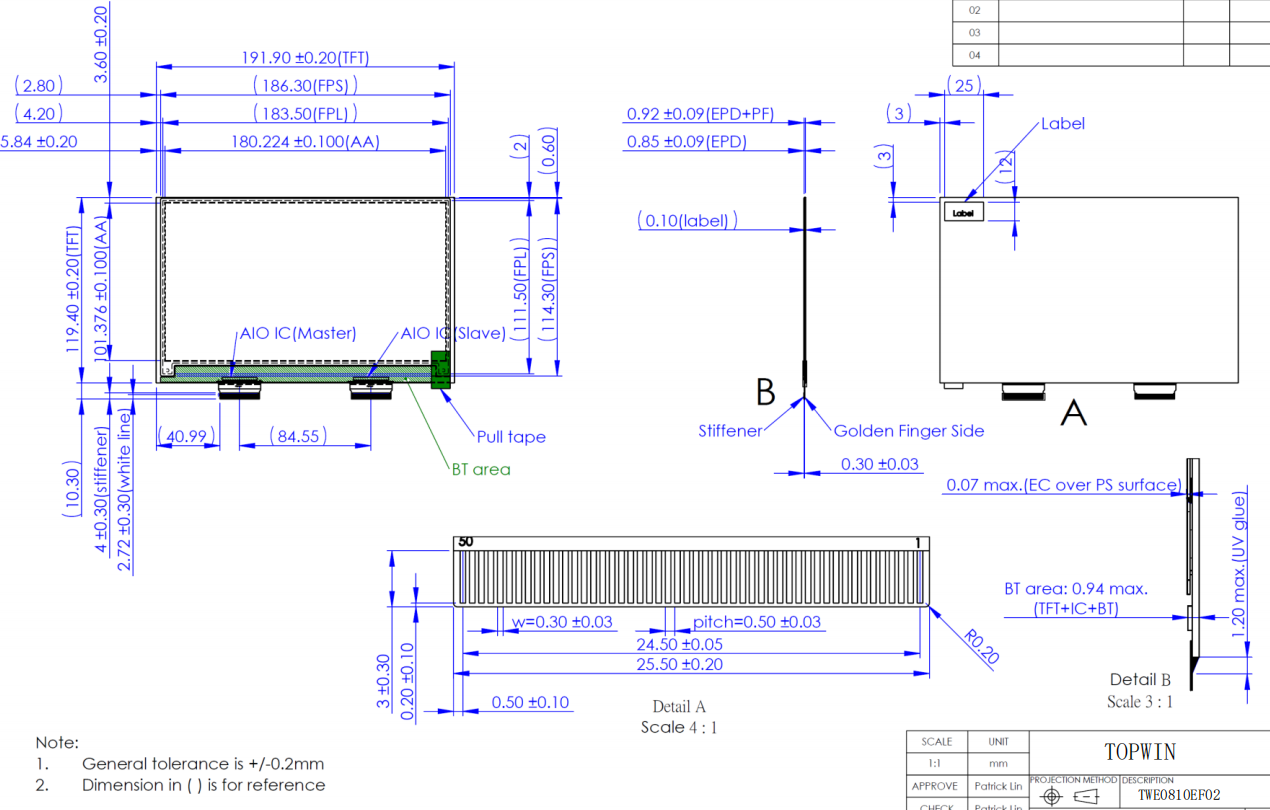

Outline Dimension :191.9 × 119.4 × 0.85 mm
Pixel Pitch :0.176 × 0.176 mm
Interface: 3-wire / 4-wire SPI
Display Mode: Reflective Electrophoretic Display (EPD)
Viewing Angle :Ultra Wide Viewing Angle
Surface Treatment: Anti-Glare Hard-Coated Surface
Power Consumption: Ultra Low Power
Image Retention: Bi-stable (Image Retained Without Power)
Operating Voltage： 2.5–3.6 V (Typical 3.0 V)
Operating Temperature： 0°C to +50°C
Storage Temperature： -25°C to +60°C
Refresh Time Typical ：12 s (25°C)
Reflectance Typical： 34%
Contrast Ratio Typical ：15:1
Weight： 40 ± 4 g
