3.98inch E Ink Spectra 6 Color E Paper Display Module 552×768 SPI Reflective Electronic Paper Screen
The 3.98inch E Ink Spectra™ 6 Display Module combines a compact design with vivid six-color display technology, offering a 552 × 768 resolution for clear text and graphics. Featuring ultra-low power consumption, bi-stable image retention, a pure reflective display, and an ultra-wide viewing angle, it provides excellent readability under ambient light without requiring a backlight. With an SPI interface, on-chip display RAM, and integrated waveform memory, it is an ideal solution for smart ID cards, electronic badges, digital photo frames, smart labels, and other low-power embedded applications.
- Overview
- Recommended Products
Parameter Specification
Model :TWE0398NZ19-CNG-A0
Display Technology: E Ink Spectra™ 6
Display Size: 3.98 Inch
Resolution: 552 × 768 Pixels
Active Area :59.06 × 82.18 mm

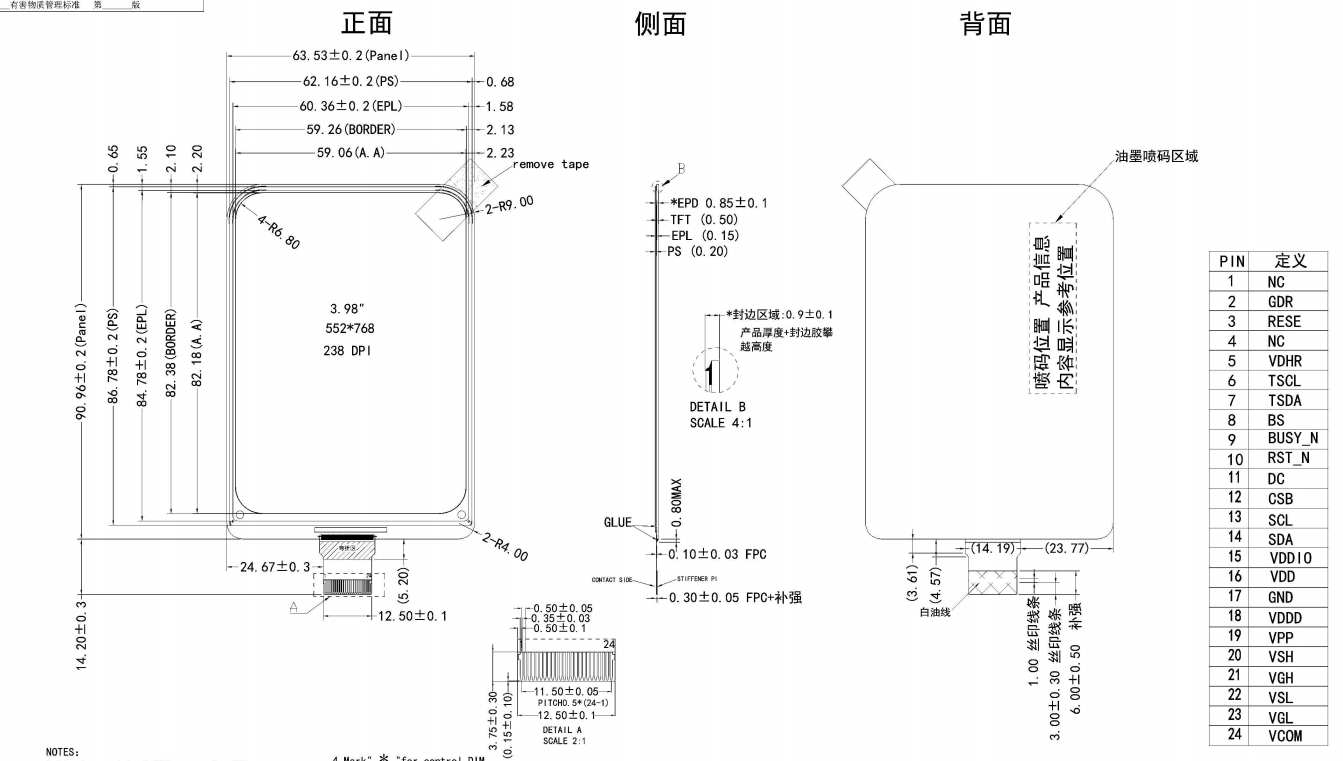

Outline Dimension :63.53 × 90.96 × 0.85 mm
Pixel Pitch :107 × 107 μm
Display Colors: Black, White, Red, Yellow, Blue, Green
Display Mode: Reflective Electrophoretic Display (EPD)
White Reflectance: ≥30%
Contrast Ratio: ≥8:1
Interface: 3-wire / 4-wire SPI
Operating Voltage: 2.8–3.6 V (Typical 3.0 V)
Operating Temperature :0°C to +50°C
Storage Temperature: -25°C to +60°C
Compliance RoHS Compliant
Typical Applications Smart ID Cards, Electronic Badges, Digital Photo Frames, Smart Labels, IoT Devices, Embedded Systems
