7.09 inch E Ink Spectra 6 Color E Paper Display Module 1200×1600 SPI High Resolution Reflective EPD
The 7.09inch E Ink Spectra™ 6 Display Module features an ultra-high 1200 × 1600 resolution with 282 PPI for exceptionally sharp text and detailed graphics. Supporting six vivid colors—black, white, red, yellow, blue, and green—it delivers outstanding readability with a reflective, paper-like display that remains visible even in bright sunlight. With ultra-low power consumption, bi-stable image retention, an SPI interface, and an ultra-thin design, this display is ideal for premium electronic shelf labels (ESL), digital signage, smart retail, industrial devices, and IoT applications
- Overview
- Recommended Products

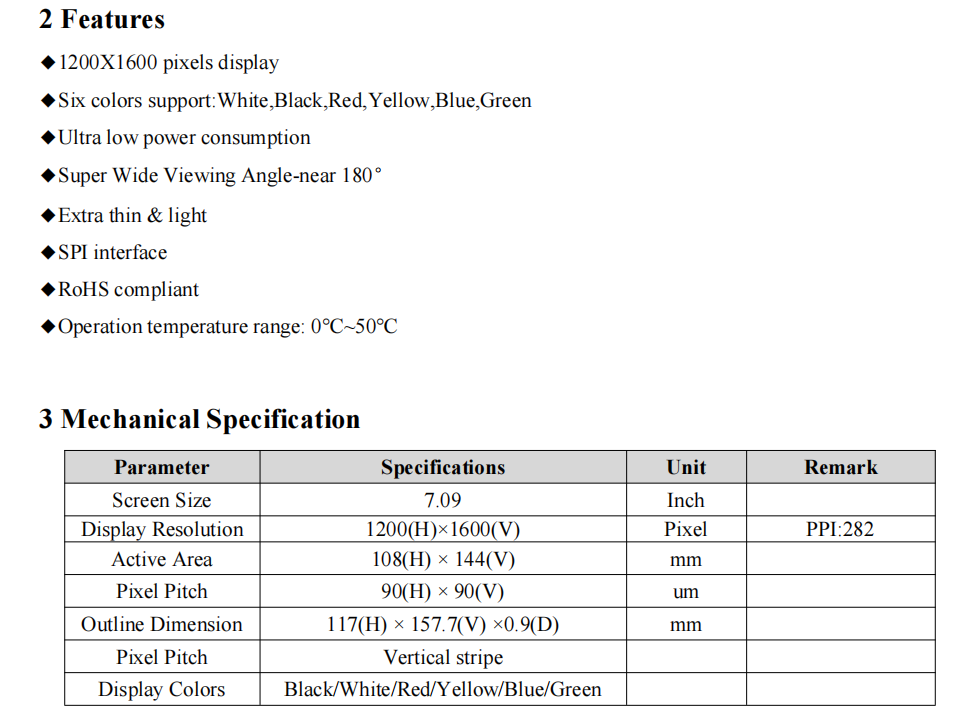

| Parameter | Specification |
|---|
| Model | TWE0709BNZ01-CNG-A0 |
| Display Technology | E Ink Spectra™ 6 |
| Display Size | 7.09 Inch |
| Resolution | 1200 × 1600 Pixels |
| Pixel Density | 282 PPI |
| Display Colors | Black, White, Red, Yellow, Blue, Green |
| Active Area | 108 × 144 mm |

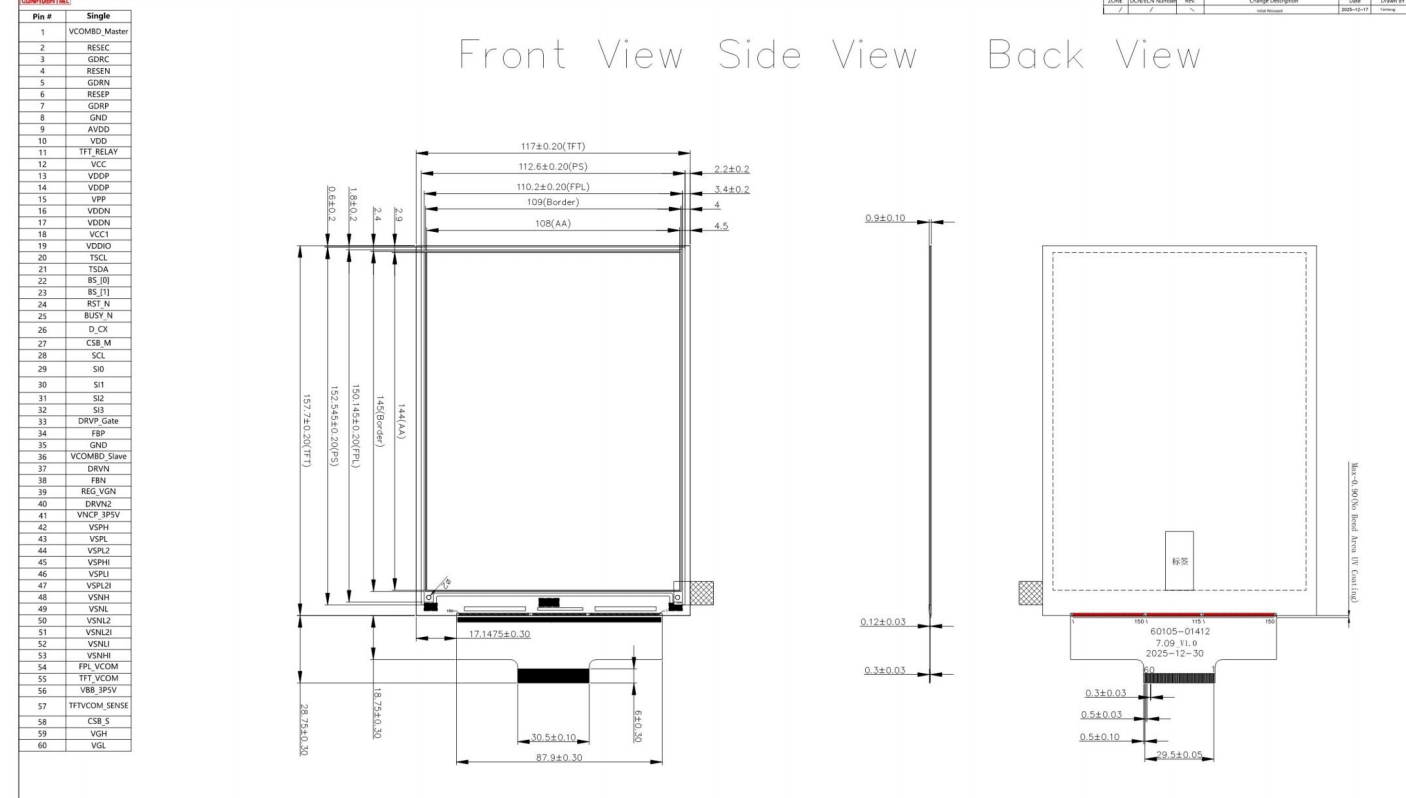

| Outline Dimension | 117 × 157.7 × 0.9 mm |
| Pixel Pitch | 90 × 90 μm |
| Interface | 3-wire / 4-wire SPI |
| Display Mode | Reflective Electrophoretic Display (EPD) |
| Viewing Angle | Near 180° |
| Display Type | Full Color Reflective Display |
| Power Consumption | Ultra Low Power |
| Image Retention | Bi-stable (Image Retained Without Power) |
| Structure | Extra Thin & Lightweight |
| Operating Voltage | 2.3–3.6 V |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -25°C to +60°C |
| Compliance | RoHS Compliant |
| Applications | Electronic Shelf Labels (ESL), Smart Retail, Digital Signage, Industrial Displays, IoT Devices |
