6'' 6inch AM OLED Display Panel ONCELL Touch Panel 1080x2160 CH13721CG1 MIPI Interface Full Color Am Oled Display
- Overview
- Recommended Products

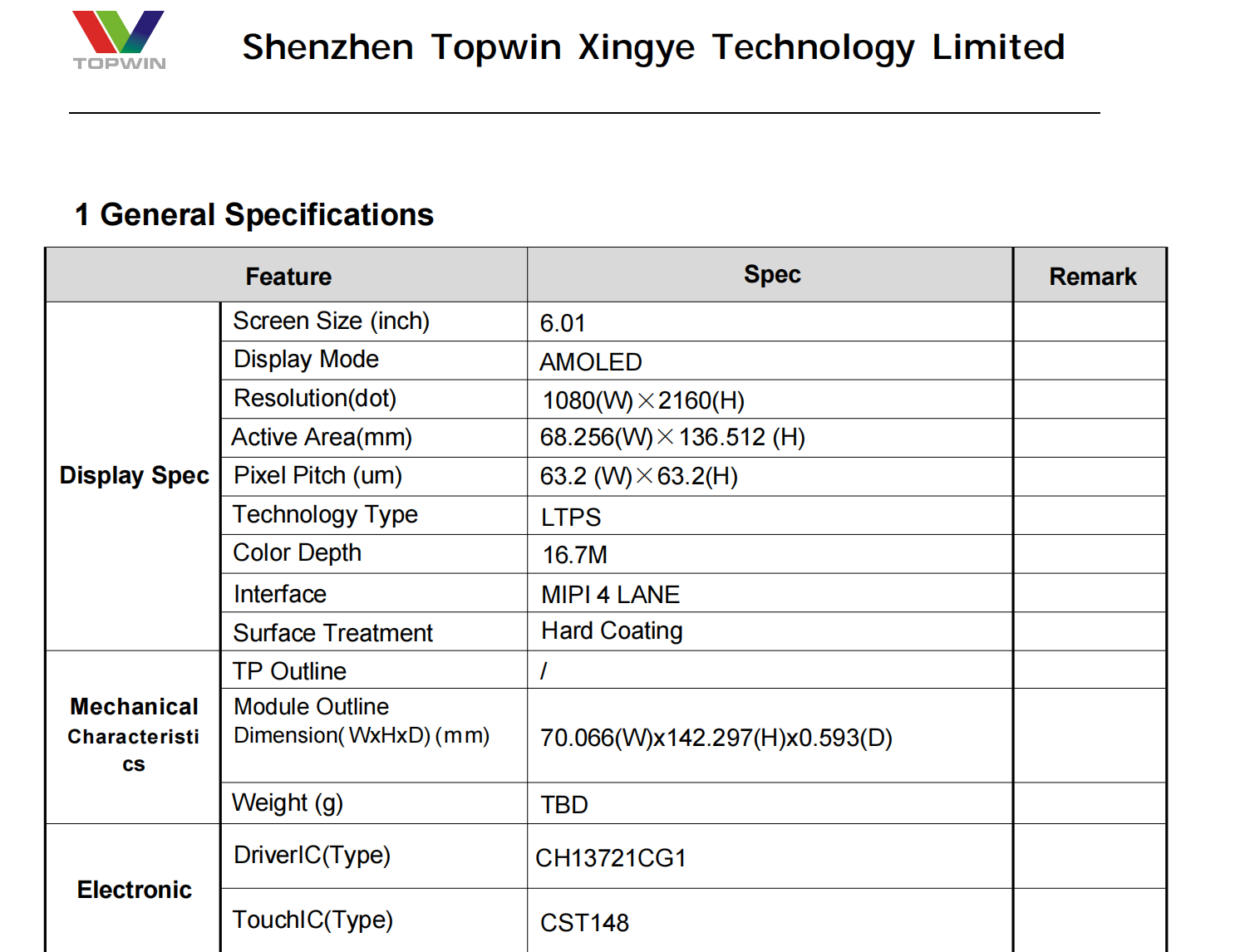

Screen Size:6.01inch
Display Mode:AM OLED
Resolution(dot):1080(W)×2160(H)
Active Area(mm):68.256(W)×136.512 (H )
Pixel Pitch (um):63.2 (W)×63.2(H )
Technology Type：LTPS
Color Depth：16.7 M
Interface：MIPI 4 LANE
Surface Treatment :Hard Coating

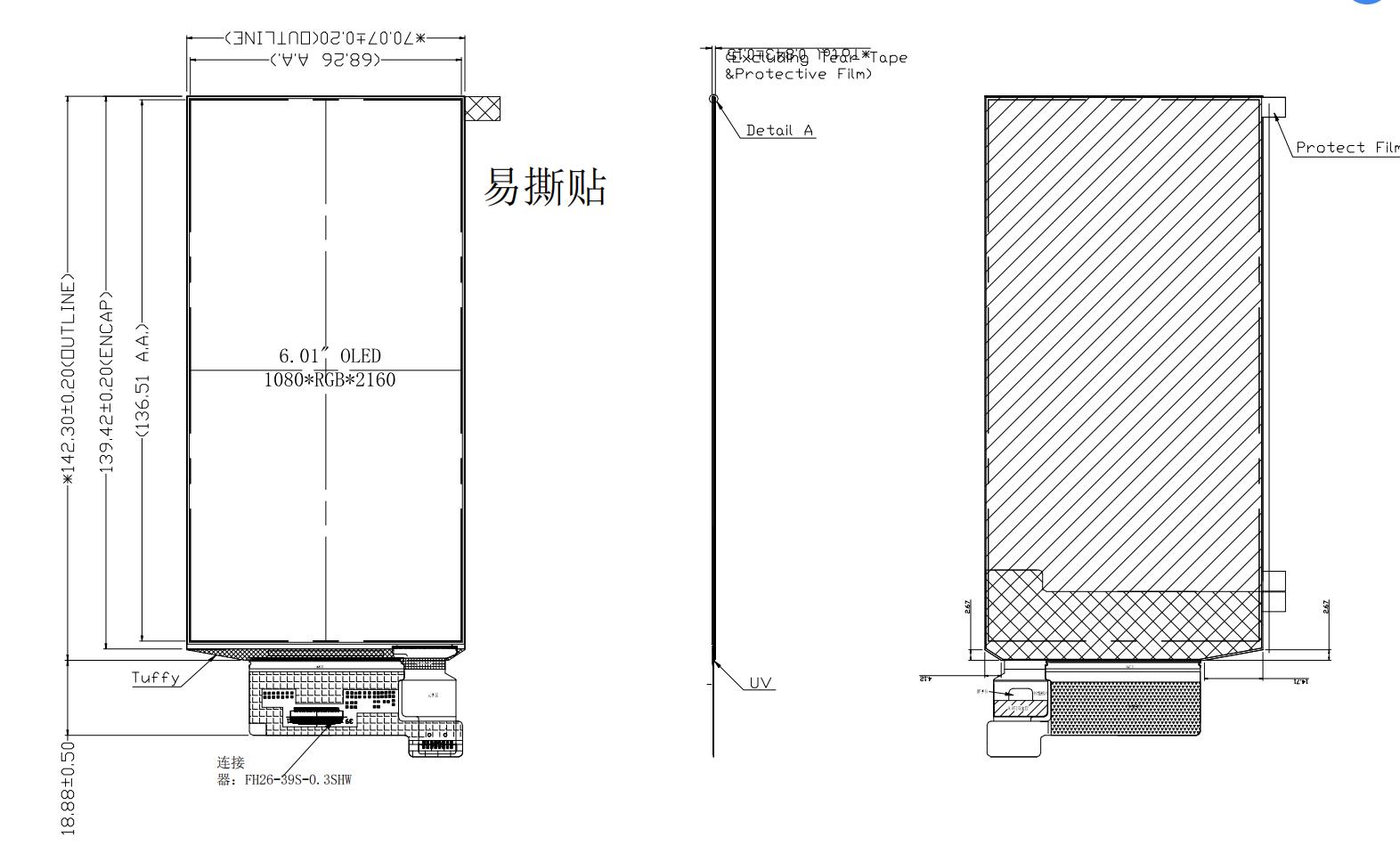

Module Outline
Dimension( WxHxD)(mm)：
70.066(W)x142.297(H)x0.593(D)
DriverIC(Type)：：CH13721CG1
TouchIC(Type）：CST148
