7.5 inch E Ink Spectra 6 Color E Paper Display Module 1024×600 SPI Reflective Electronic Paper Screen
The 7.5-inch E Ink Spectra 6 Display Module delivers vibrant six-color images with a 1024 × 600 resolution and a 158 PPI pixel density. Featuring ultra-low power consumption, bi-stable technology, and a reflective paper-like display, it remains clearly visible even under direct sunlight while retaining images without continuous power. With support for 3-wire/4-wire SPI interface, landscape and portrait display modes, and an anti-glare hard-coated surface, it is an ideal solution for smart retail, digital signage, electronic shelf labels (ESL), industrial control, and IoT display applications.
- Overview
- Recommended Products
| Parameter | Specification |
|---|---|
| Model | TWE0750MNJ30-CNG-A0 |
| Display Technology | E Ink Spectra 6 |
| Display Size | 7.50 inch |
| Resolution | 1024 × 600 Pixels |
| Pixel Density | 158 PPI |
| Display Colors | Black, White, Red, Yellow, Green, Blue |
| Color Depth | 2-bit / 3-bit Full Color Display |
| Active Area | 163.84 × 97.20 mm |

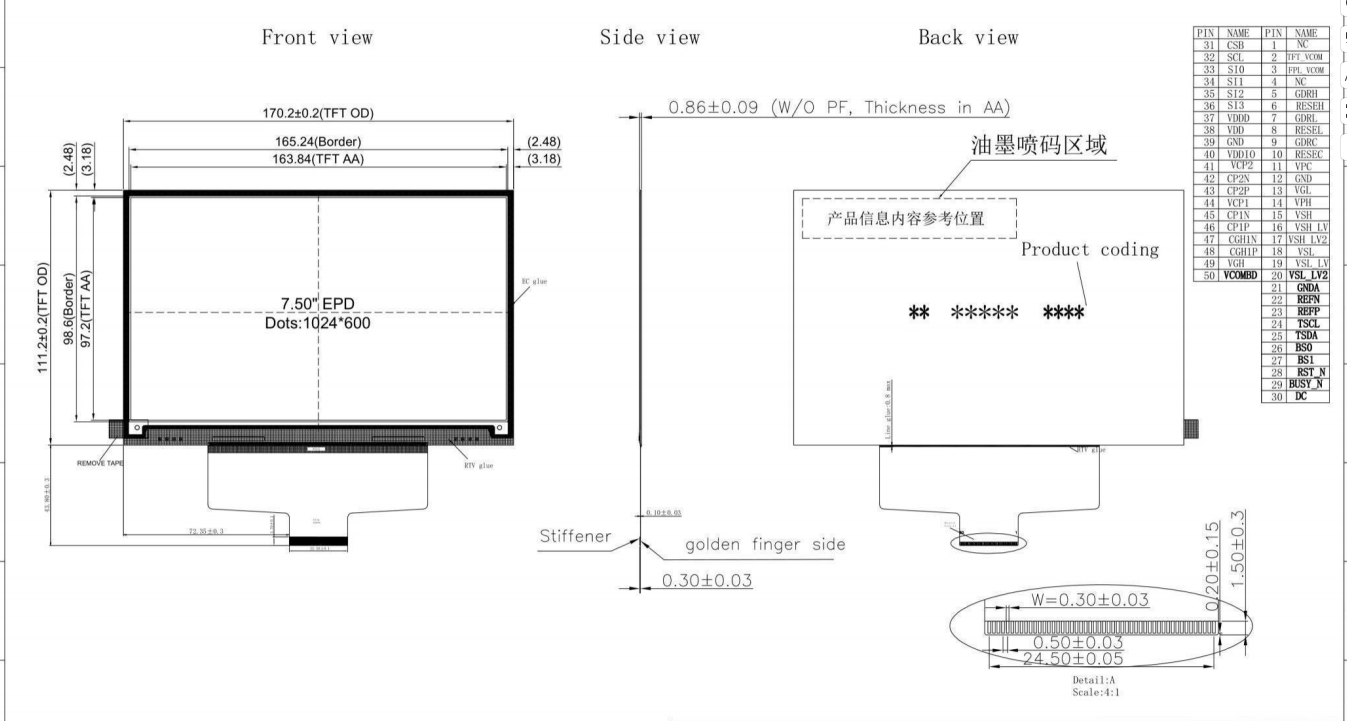

| Outline Dimension | 170.20 × 111.20 × 0.86 mm |
| Pixel Pitch | 0.160 × 0.162 mm |
| Interface | 3-wire / 4-wire SPI |
| Display Mode | Reflective Electrophoretic Display (EPD) |
| Viewing Angle | Ultra Wide Viewing Angle |
| Surface Treatment | Hard-Coated Anti-Glare Surface |
| Display Orientation | Landscape & Portrait |
| Power Consumption | Ultra Low Power |
| Image Retention | Bi-stable (Image Retained Without Power) |

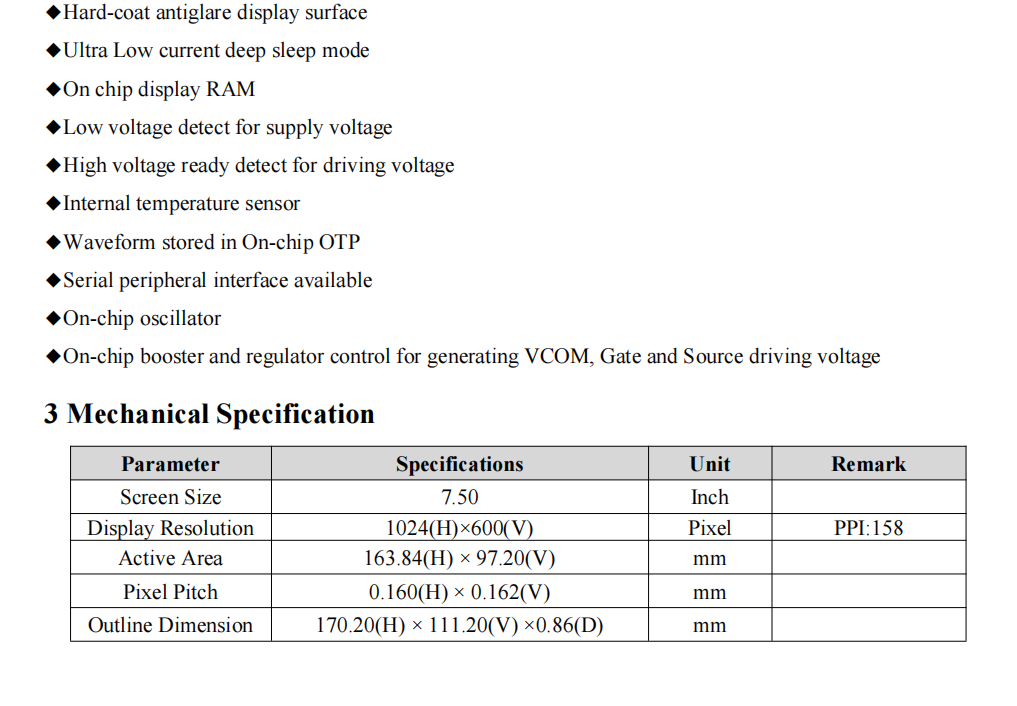

| Built-in Features | On-chip RAM, Internal Temperature Sensor, OTP Waveform Memory |
| Operating Voltage | 2.4–3.6 V (Typical 3.0 V) |
| Operating Temperature | Commercial Temperature Range |
| Applications | Digital Signage, Smart Retail, ESL, IoT Devices, Industrial Displays |
